Application Information AWM-G-2009

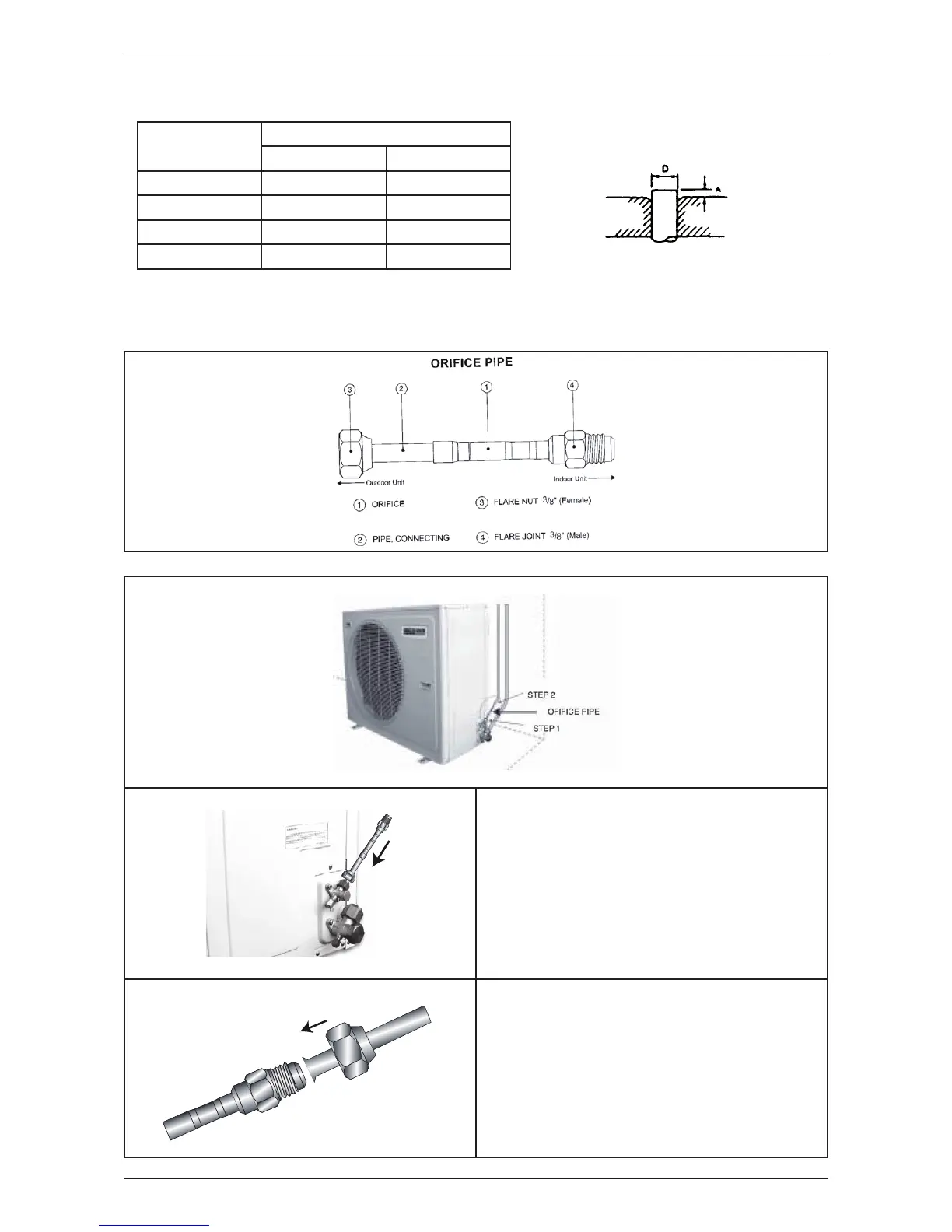

The exact length of pipe protruding from the face of the fl are die is determined by the fl aring tool. The table
showsthe use of an imperial die and riged die.
PIPE Ø, D (mm)
A(mm)
IMPERIAL DIE RIGED DIE
6.35 (1/4”) 1.3 0.7
9.52 (3/8”) 1.6 1
12.7 (1/2”) 1.9 1.3
15.88 (5/8”) 2.2 1.7
Fix the pipe fi rmly on the fl are die. Match the centers of both the fl are die and the fl aring punch, and tightenfl aring
punch fully.
•
INSTALLATION OF SEPARATE ORIFICE KIT AT OUTDOOR
i) Outdoor Unit Installation Space Is Wide Enough
Directly connect the “Female” nut of orifi ce pipe to
the liquid pipe.
•
Orifice Pipe
Liquid Pipe
Flare the liquid pipe and connect it to the “Male”
joint of the orifi ce pipe.
•
To Next Page
