Installation Guideline
INDOOR
PRELIMINARY SITE SURVEY
a) Electrical supply and installation is to confirm to local authority’s (e.g. National Electricity
Board) codes and regulations.
b) Voltage supply fluctuation must not exceed +/- 10% of rated voltage. Electricity supply
line must be independent of welding transformers which can cause supply fluctuation.
c) Ensure that the location is convenient for wiring and piping.
MOUNTING

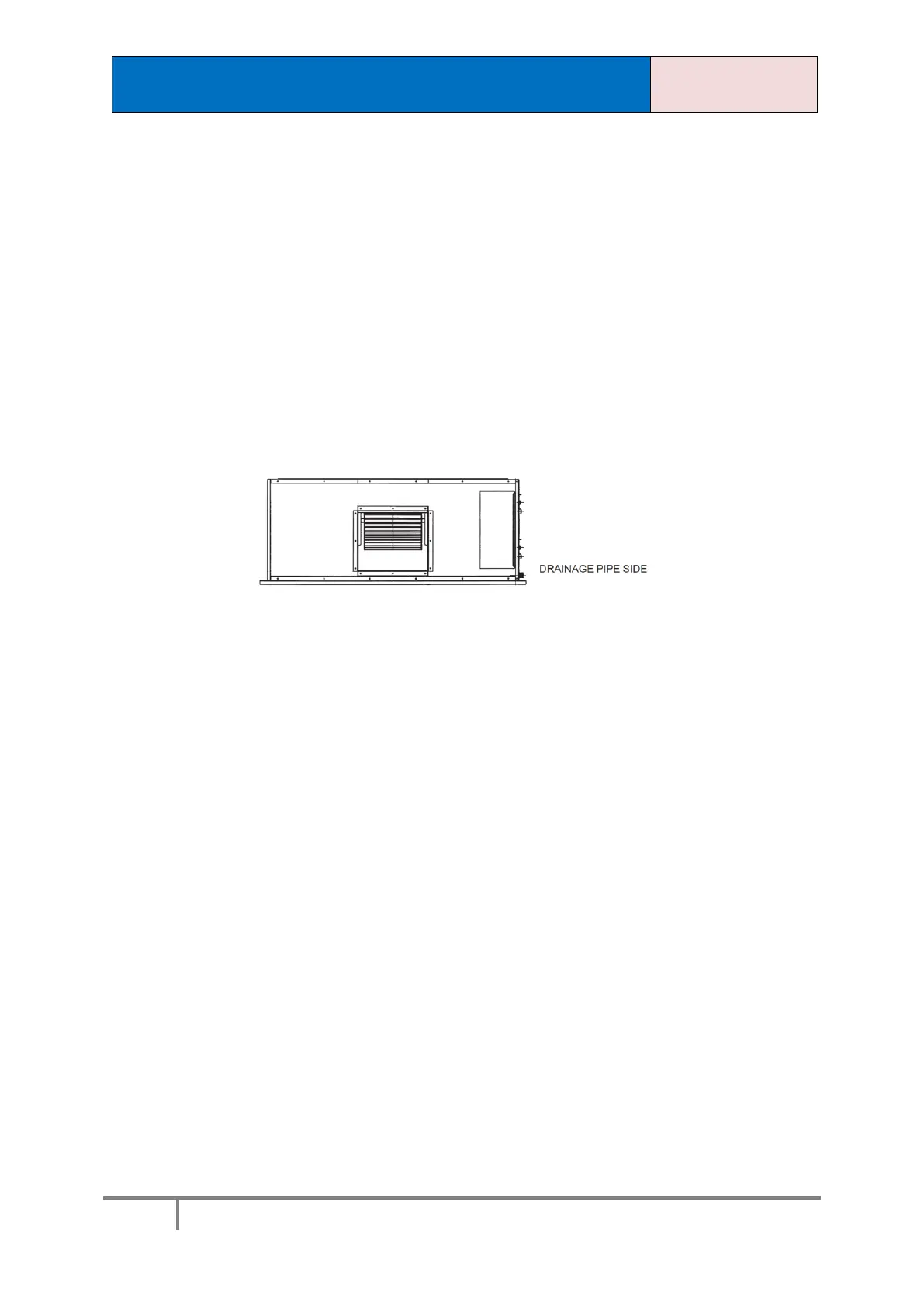

a) For ceiling mounted models, locate a position where piping and ducting work can be kept
to a minimum. Ensure that overhead supports are strong enough to hold the unit’s weight.
Position hanger rods and check for alignment with the unit. Check that hangers are
secure and that the base of fan-coil unit is level in two horizontal directions.
PIPINGS
Do not use contaminated or damaged copper tubing. If piping, evaporator or condenser are
exposed or had been opened for 15 seconds or more, vacuum and purge with field supplied
refrigerant. Generally, do not remove plastic/rubber plugs/caps from fitting, tubing and coils
until ready to connect suction or liquid line into fittings.
OPERATIONAL CHECK
After all electrical wiring is completed and the system is charged with refrigerant, make sure
unit is operating properly. Check that:
a) Condenser fans are running, with warm air blowing off the condenser coil.
b) Evaporator blowers are running and discharging cool air.
c) Suction line inside condensing unit feels cool.
d) Liquid line inside condensing unit feels warm.
ELECTRICAL CONNECTION
As wiring regulations differ from country to country, please refer to your LOCAL
ELECTRICAL CODES for field wiring regulations and ensure that these are complied with.
Besides, observe the following general precautions:
a) Ensure that the rated voltage of the unit corresponds to that of the name plate before
commencing wiring work.
b) Provide a power outlet to be used exclusively for each unit. A power supply disconnects
and a circuit breaker for over-current protection should be provided in the exclusive line.
c) The unit must be GROUNDED to prevent possible hazard due to insulation failure.
d) All wiring must be firmly connected.
e) Electrical wiring must not touch the refrigerant piping, compressor and any moving parts
of the fan motors.
