Acson ADB-B Series - Wiring Diagram; Indoor;Outdoor Unit Wiring Diagrams

TECHNICAL SPECIFICATION
TS-SB-B/D-AM-A1
169
Model: AMC150C

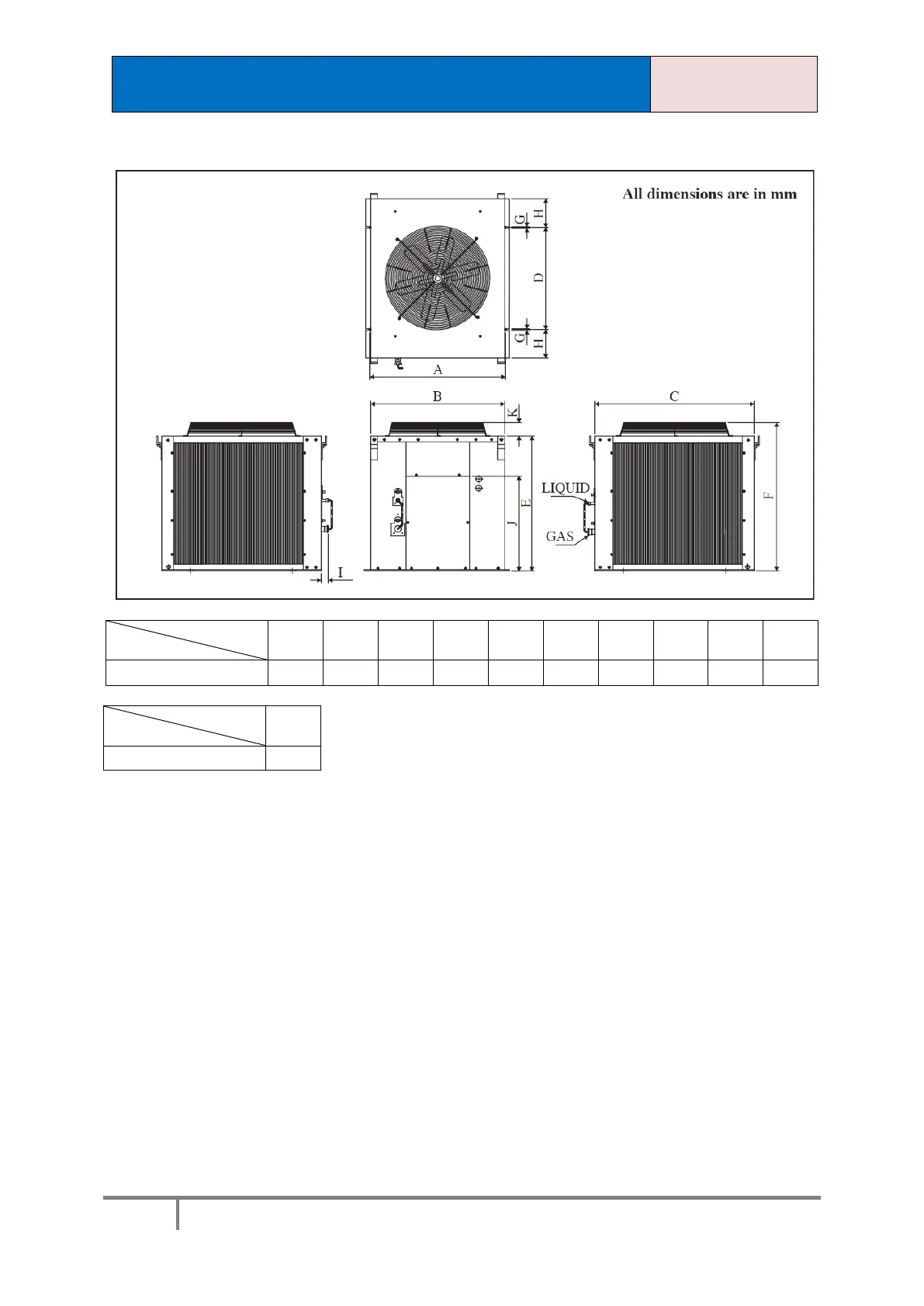

Dimension
Model
A
B
C
D
E
F
G
H
I
J
150C
950
939
1116
716
946
1041
11
200
50
666
Dimension
Model
K
150C
95
