Acson ADB-B Series - NC Curve

TECHNICAL SPECIFICATION
TS-SB-B/D-AM-A1
23
Indoor Model Measuring Location
ADB40B
ADB50B
ADB60B
ADB80B
ADB100B
ADB125B
ADB150B1
ADB200B2

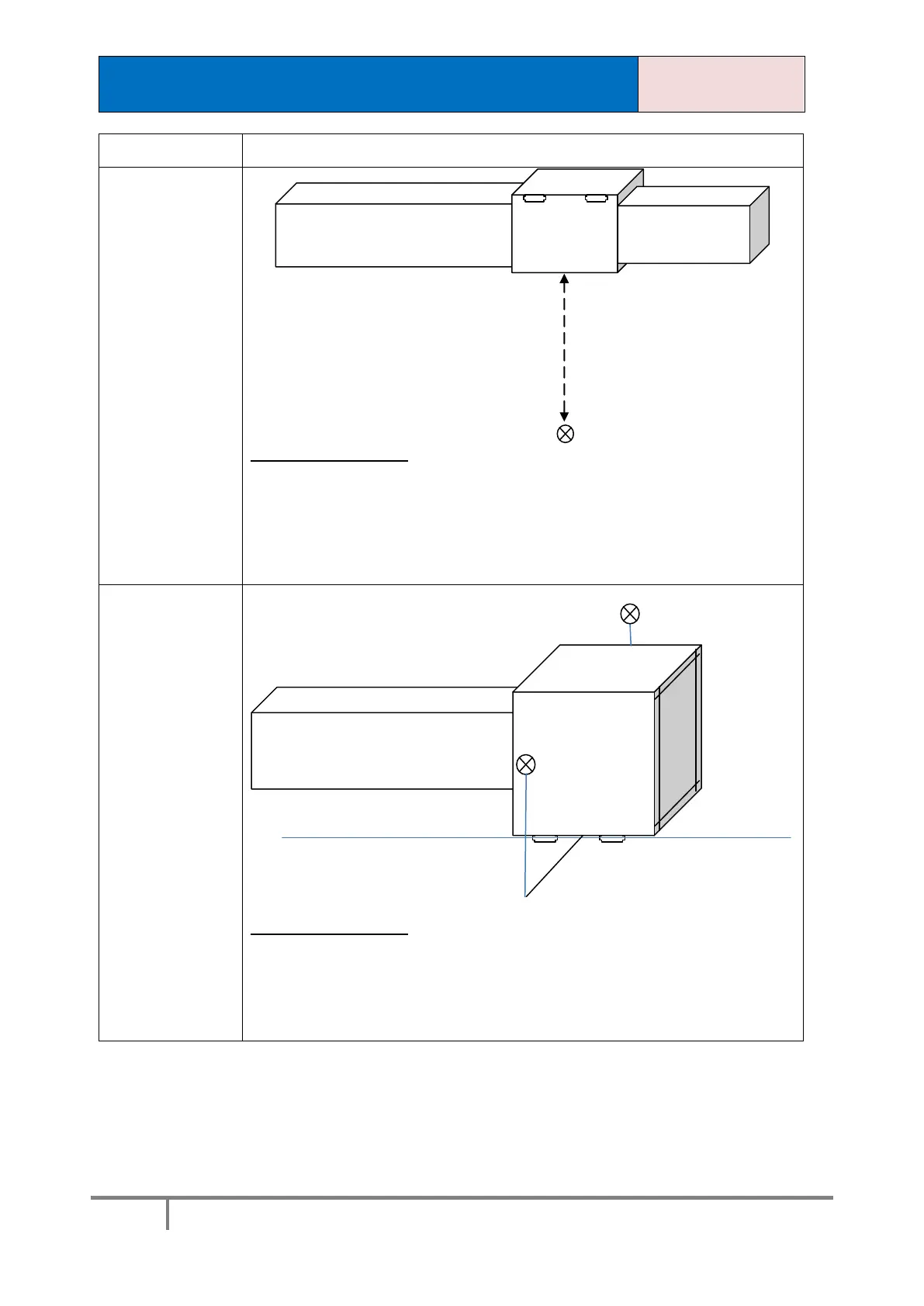

Microphone position:
1.5m below centre of the unit.
(Tested with 2m length duct at the air discharge outlet and 1m length air return
inlet)
Standard: JIS B 8615
ADB250B2
ADB300B2/B3
ADB350B3
ADB400B4
ADB450B3
ADB500B4
ADB600B4
ADB750B5
Microphone position:
1m away from every side panel of the unit and 1m above the floor level.
(Tested with 2m length duct at the air discharge outlet only)
Standard: JIS B 8615
1m
2m discharge duct length
1m
UNIT
Free return duct
1.5m
2m discharge duct length
1m return duct length
UNIT
