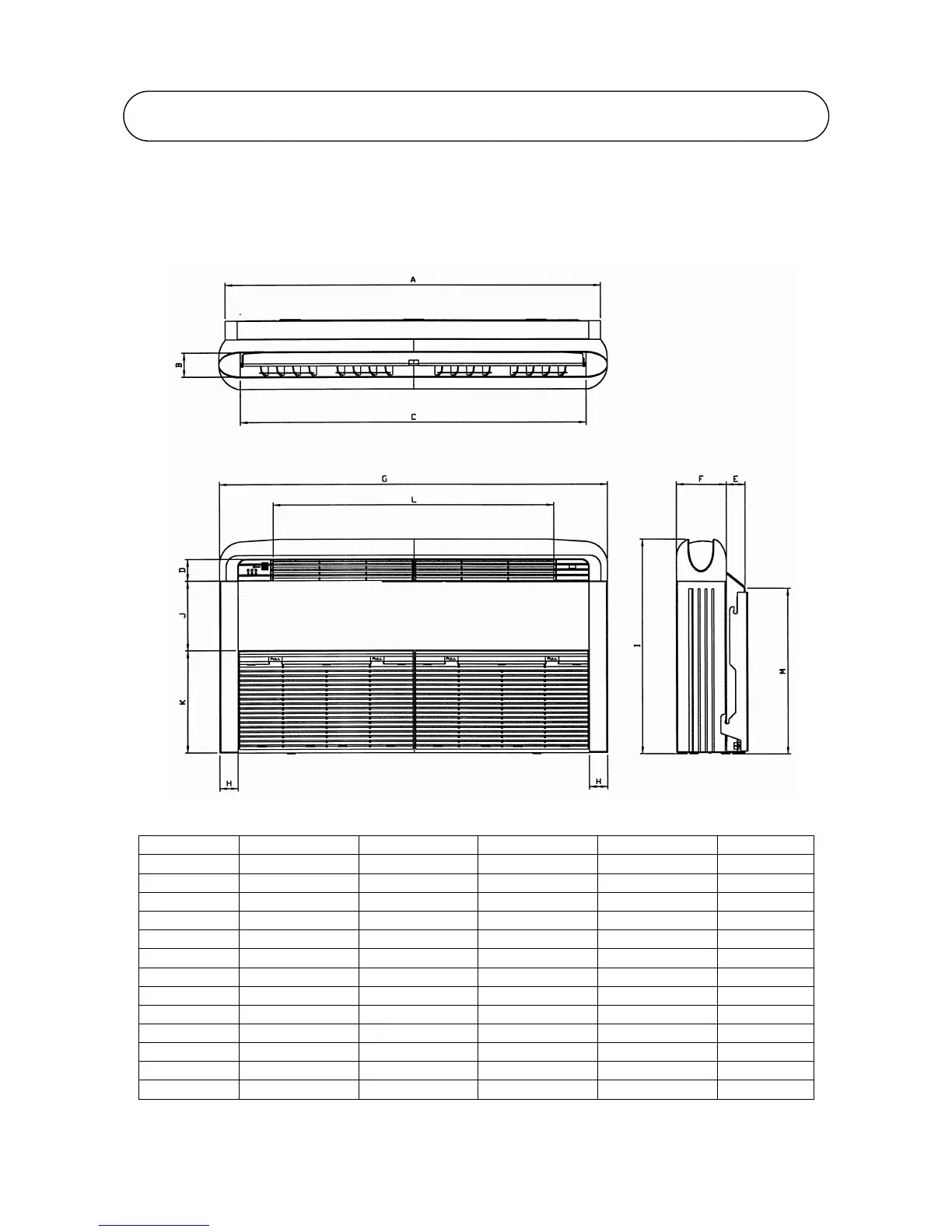

7. OUTLINES AND DIMENSIONS
INDOOR UNIT
MODEL: RCM - D SERIES
(COOLING ONLY AND HEAT PUMP)
MODEL RCM 20D/DR RCM 25D/DR RCM 30D/DR RCM 40D/DR RCM 50D/DR
A
1174 1174 1174 1674 1674
B
75 75 75 75 75
C
1082 1082 1082 1582 1582
D
68 68 68 68 68
E
58 58 93 93 93
F
156 156 156 156 156
G
1214 1214 1214 1714 1714
H
57 57 57 57 57
I
670 670 670 670 670
J
216 216 216 216 216
K
319 319 319 319 319
L
879 879 879 1379 1379
M
517 517 517 517 517
All dimensions in mm
