(2) INSTALLATION OF OUTDOOR UNIT
As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to
achieve maximum cooling capacity, the location selected for outdoor unit should fulfill the following
requirements:

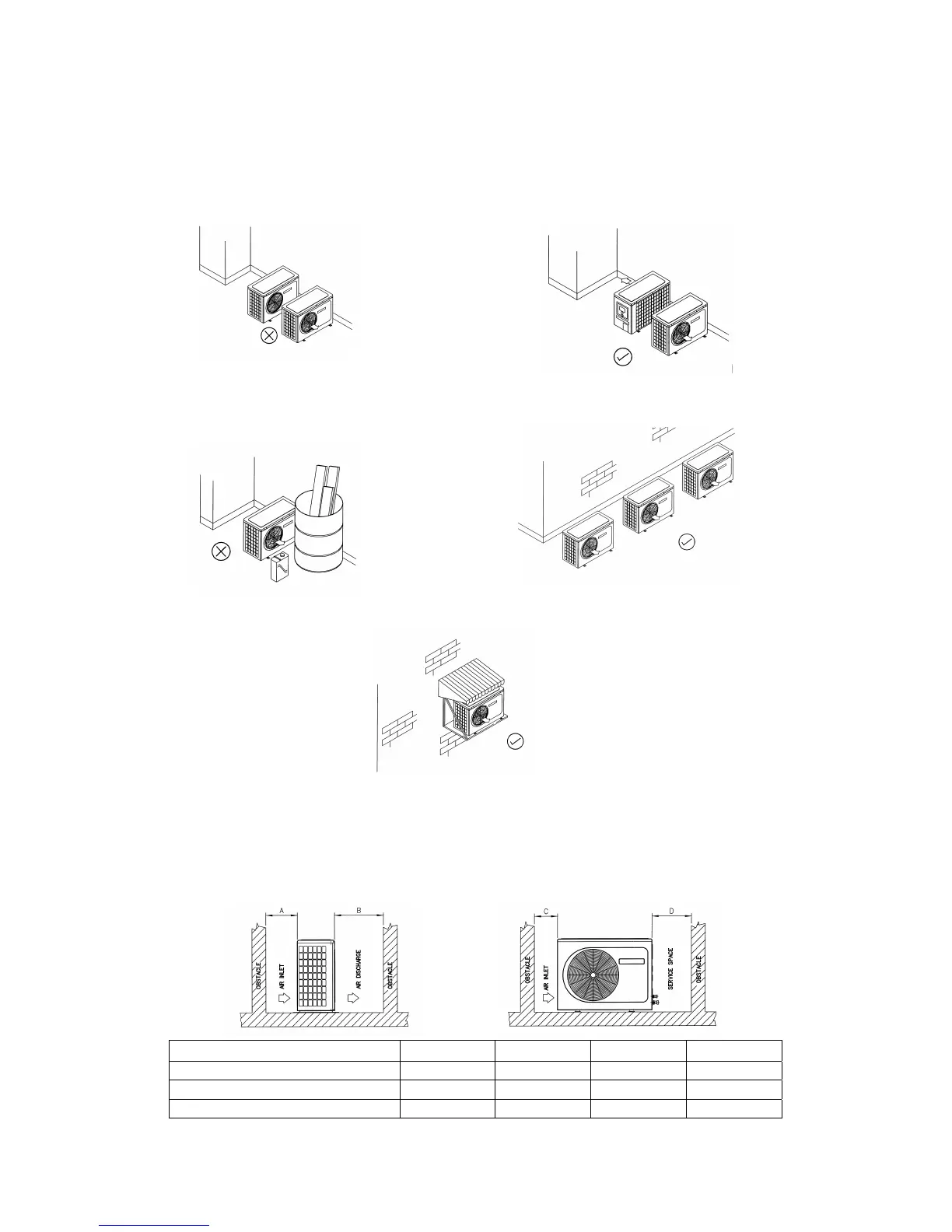

• Install the condensing (outdoor) unit in away such that hot air distributed by the outdoor condensing
unit cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient
space for maintenance around the unit
.
• Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air
intake or discharge.
• The location must be well ventilated, so that the unit can draw in and distribute plenty of air thus
lowering the condensing temperature.
• A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
• A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.
• The location must not be susceptible to dust or oil mist.
INSTALLATION CLEARANCE
• Outdoor units must be installed such that there is no short circuit of the hot discharge air or
obstruction to smooth air flow. Select the coolest possible place where intake air should not be hotter
than the outside temperature (max. 45°C)
Minimum distance A B C D
ALC/A4LC20/25B/BR, ALC30B/BR 150mm 1000mm 150mm 500mm
ALC/A4LC30/40/50C/CR, ALC35C/CR 300mm 1000mm 300mm 500mm
ALC/A4LC60/61/62C/CR 300mm 1200mm 500mm 500mm
70
