Acson RCM 20 D User Manual

INSTALLATION - CEILING EXPOSED TYPE
STEP 1

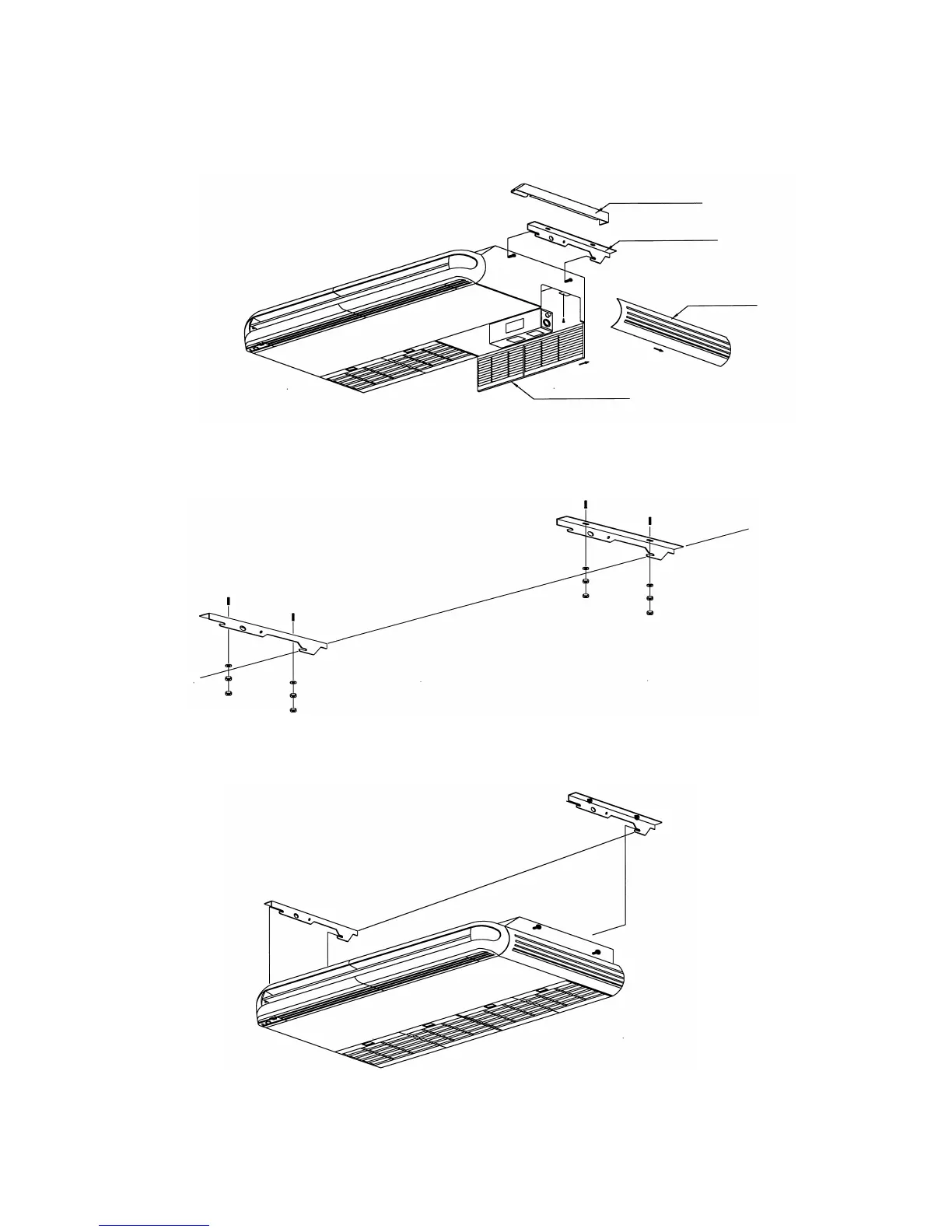

Remove air intake grille, side panel, side close-up and hanger bracket from the unit; see Fig E
.
AIR INTAKE GRILLE
SIDE FRAME
HANGER BRACKET
SIDE CLOSE UP
Figure E
STEP 2
Position the hanger rods as per Fig B and install the hanger bracket; see Fig F.
Figure F
STEP 3
Hanger up the unit and tighten the bolt, after completed the piping and drain pipe; install back the grille and panel Fig. G.
Figure G
68

Acson RCM 20 D Specifications

General

Brand	Acson
Model	RCM 20 D
Category	Air Conditioner
Language	English
