Copyright © 2016 Access Control Technology Ltd. Part No.18-00100 Issue 1.0
7
L
Mains Power up

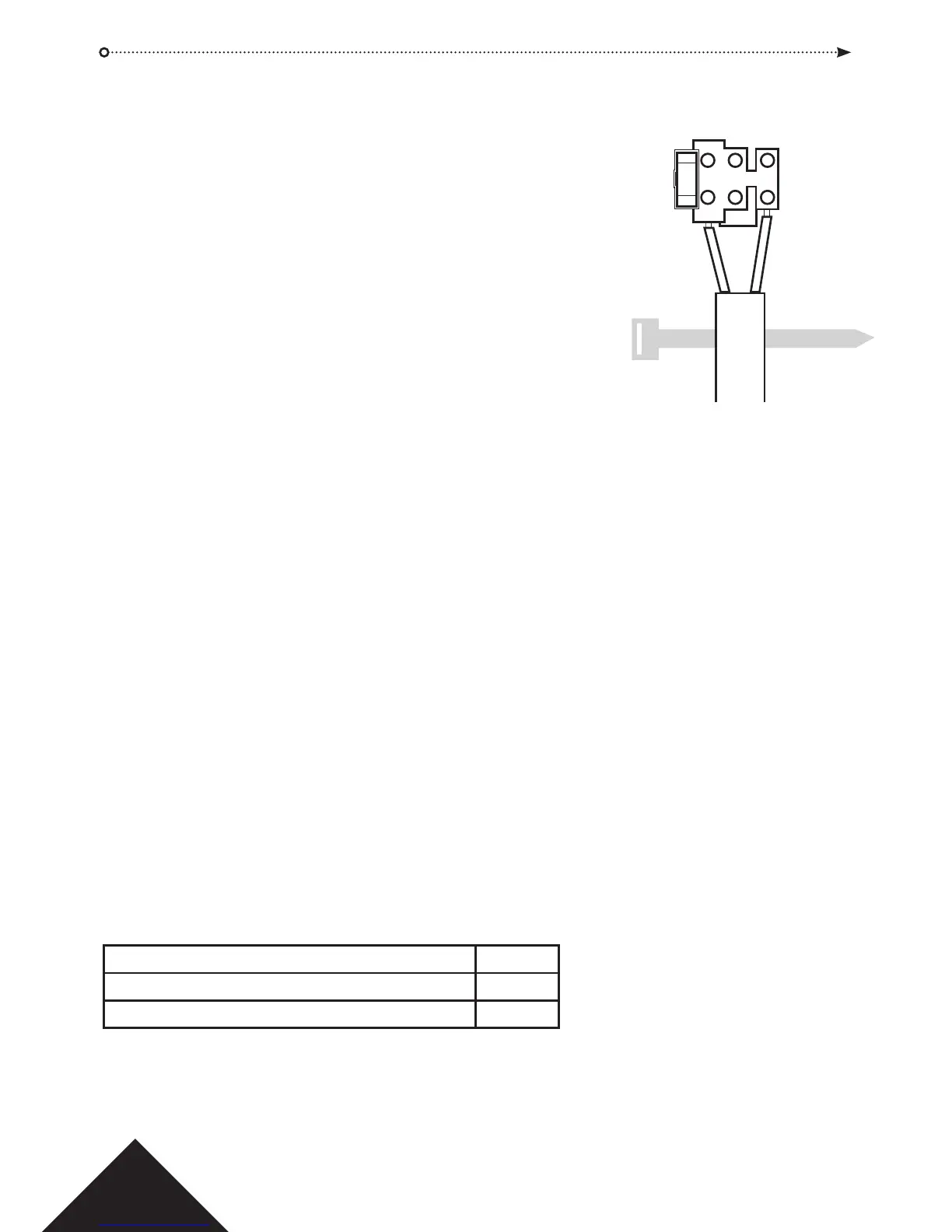

Attach a correctly rated mains cable and fasten using
the cable tie.
Use an approved external mains disconnect device.
Apply mains power. Check the ‘AC OK’ LED is on
and measure the +12V output.
Battery insertion
Disconnect the mains.
Ensure the battery has enough charge to supply the load.
Connect the red battery lead to the “+” battery terminal and the black lead to the “–”
terminal.
Apply the mains power and check the “AC OK” Green LED is illuminated.
Remove the mains power and check that “ON BATTERY” Amber LED is illuminated.
If the Amber led is illuminated the battery is now supplying the output.
Re-apply the mains power. The “AC OK” Led will illuminate and the “ON BATTERY” LED
will extinguish.
Power Budget
The PSU can supply up to 2A; 0.5A reserved for battery recharging and to power the door
station. 1.5A remains to power the locks and readers.
A complete access control system will require readers and a lock mechanism all of which
will require power.
The following table should be used for calculating the power budget.
ACTpro reader (1030/1040/1050/1060) 100mA
ACTPro MIFARE reader (1030/1040/1050) 100mA
Typical Mag Lock (consult your supplier) 800mA
N
ACTpro 120e PSU Operating and Installation Manual
