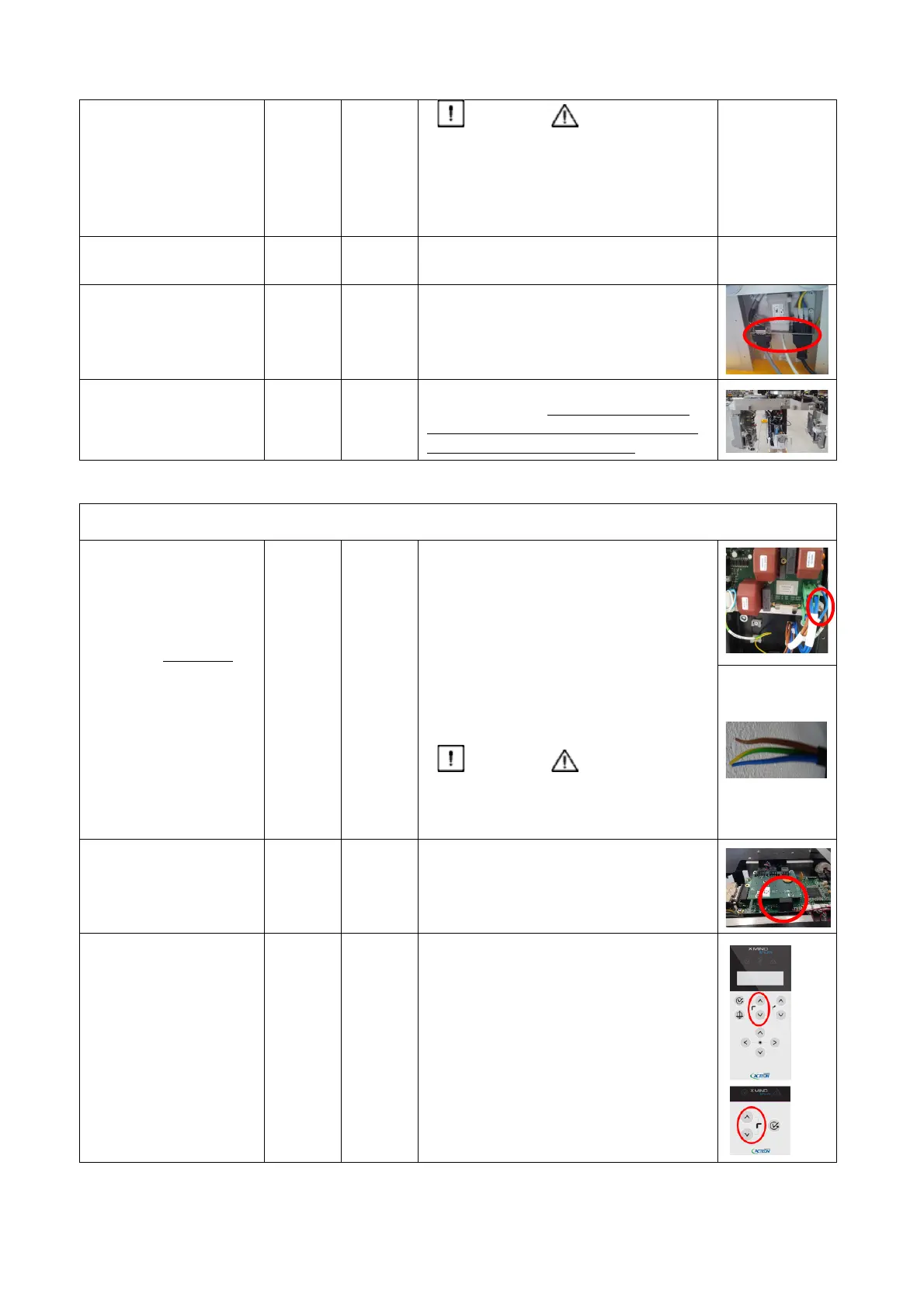

WARNING - CAUTION
The fuse is live (mains voltage) also when
the mains switch of trium is OFF: before
handling the fuse be sure that the trium is
disconnected from mains supply
Search for damaged
parts
□
P
□
F
Verify the presence of damaged or ruined
parts
XMIND trium external
connectors
□
P
□
F
Ensure that the main connector, the
Ethernet connector and the power supply
cable are plugged in the socket
U-arm rotation lock
□
P
□
F
Manually rotate the U-arm and identify the
mechanical block. (this operation must
be carried out with XMIND trium off to
prevent damaging the U-arm)
Carry out the next operations with XMIND trium ON and Workstation ON (trium uncovered)
Power supply
Record the measured
value below.
VAC = _______________
□
P
□
F
Ensure that the supply voltage is
compatible with the power supply
requirements (100 - 240 V AC ; 50/60Hz)
Ensure line of supply voltage is
connected to the brown wire of the supply
cable.
Ensure supply voltage stability. Write
down the measured power supply value at
L/N terminal on the power board (See the
installation manual)
WARNING - CAUTION
This part is live (mains voltage) also when
the mains switch of trium is OFF: be
careful handling this part
Check fan operation on
mainboard
□
P
□
F
Verify that the fan located on the
mainboard is in operation when trium is
turned ON
Check vertical movement
of the mobile column
□
P
□
F
Verify the vertical movement of the mobile
column, pressing the Column Up/Down
buttons on the control panel (also from
ceph keypad)
