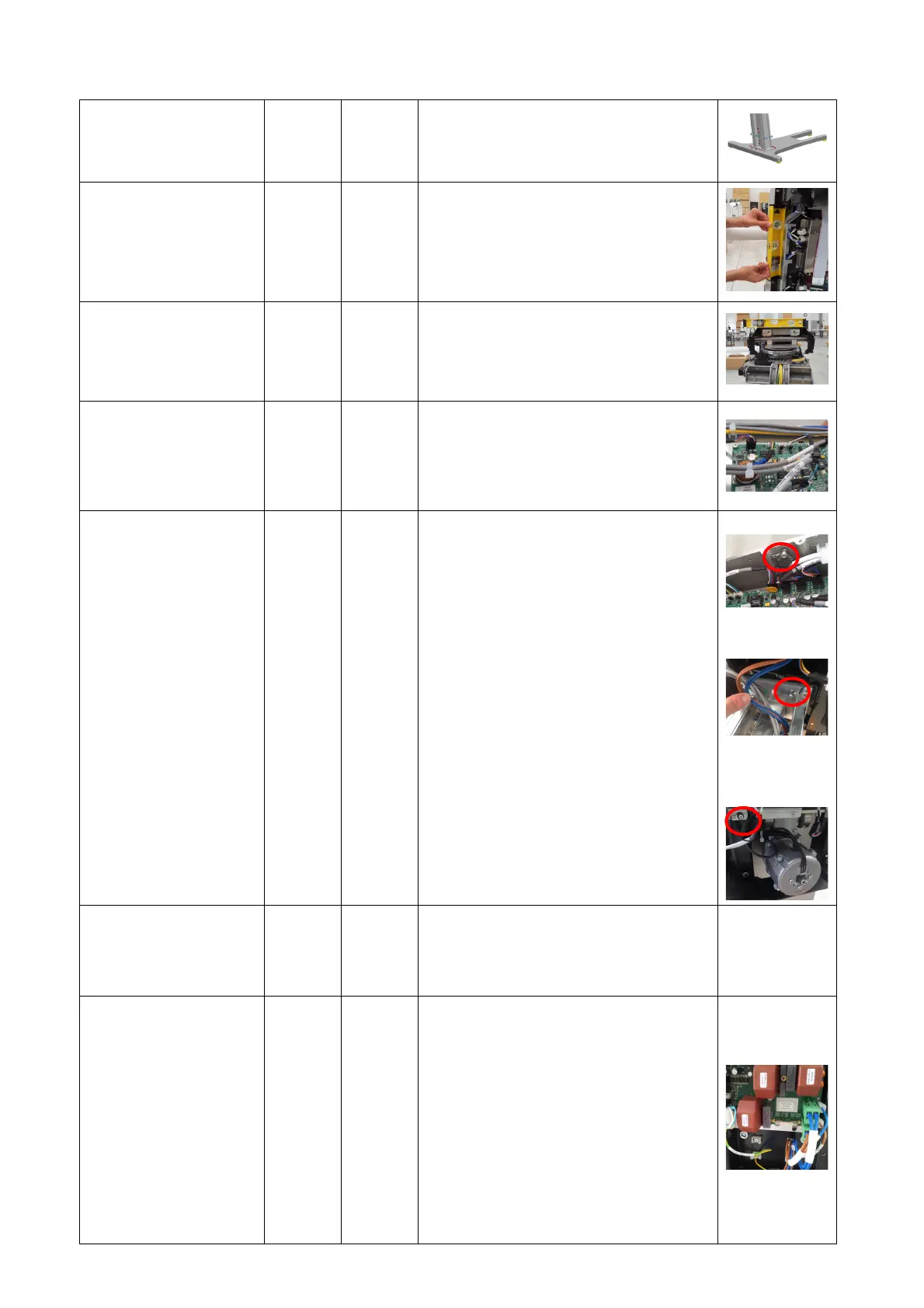

Acteon X-MIND trium - Page 4

Pag 4 of 11
Self-Standing base
□
P
□
F
Verify the correct fixing of the Self-
Standing base screws (see installation
manual for tightening torque)
Column levelling
□
P
□
F
Verify the levelling using a spirit level
U-arm levelling
□
P
□
F
Verify the levelling using a spirit level
Internal cabling
□
P
□
F
Ensure that the internal cabling complies
with identifications on the cable labelling
and the connectors are properly plugged
in
Verify grounding
□
P
□
F
Ensure that the grounding in the pictures
are connected properly
U-arm:
Handling:
Column
motor:
Wires wrapped around
the column
□
P
□
F
Ensure that there are no wires wrapped
around the column during U-arm rotation
Fuse
□
P
□
F
In factory is not installed any fuse
Ensure that the correct fuse is inserted in
the fuse holder, according to power supply
of your country.
20 A. For 100 – 200 V supply voltage
10 A. For 200 – 240 V supply voltage
(See the label on the power board and/or
installation manual)
