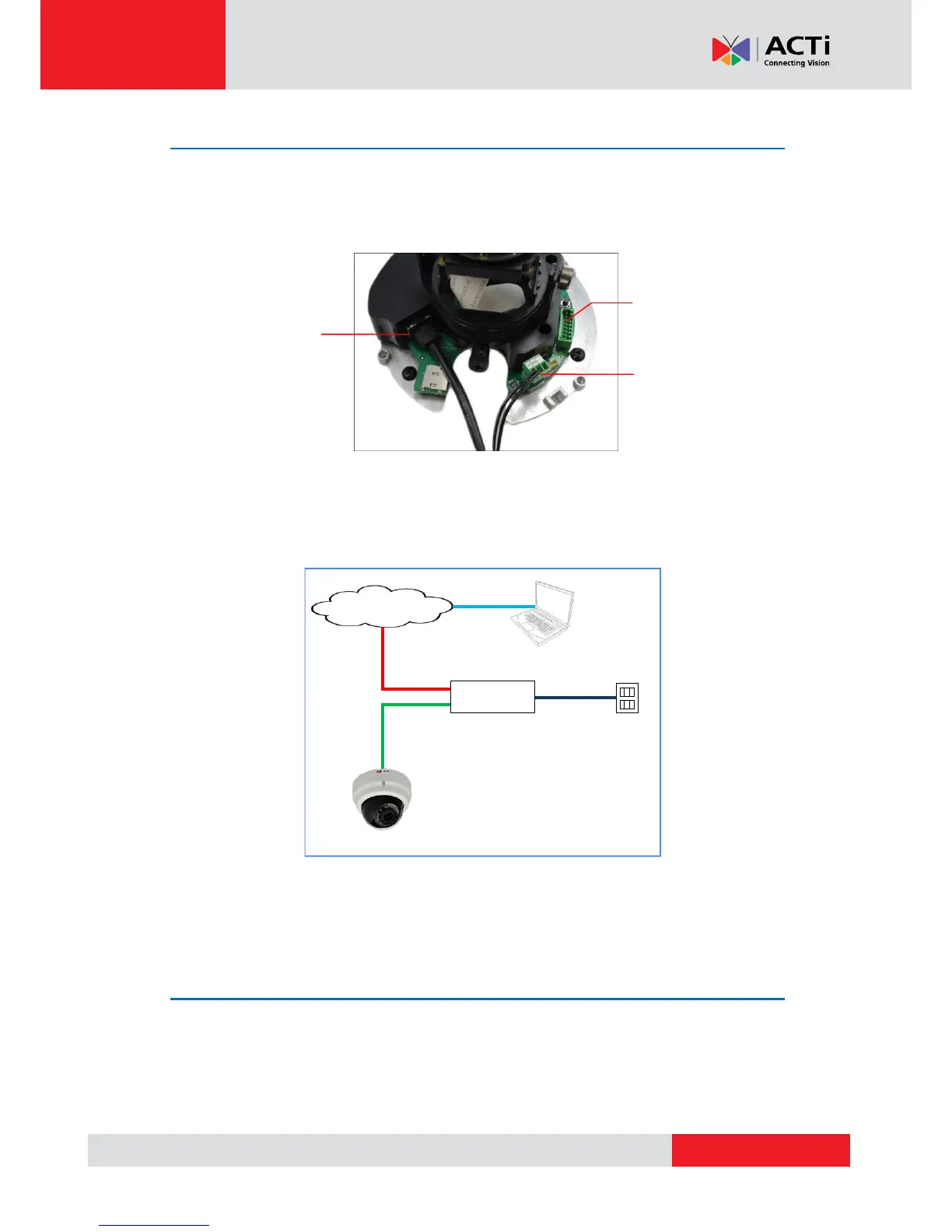

Step 4: Connect the Cable(s)
1. Connect the network cable to the Ethernet port of the camera.
If necessary, connect other cable connectors (optional), like audio input/output, DI/DO, and
DC 12V power to the corresponding connectors on the camera.
2. Connect the other end of the network cable to a switch or injector. Then, connect the switch
or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection
example below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Step 5: Access the Camera Live View
See Accessing the Camera on page 31 for more information on how to access the Live View of
the camera.
Ethernet Port
Digital Input / Output (DI/DO)
and Audio Input / Output
Connector
12V Power Connector
