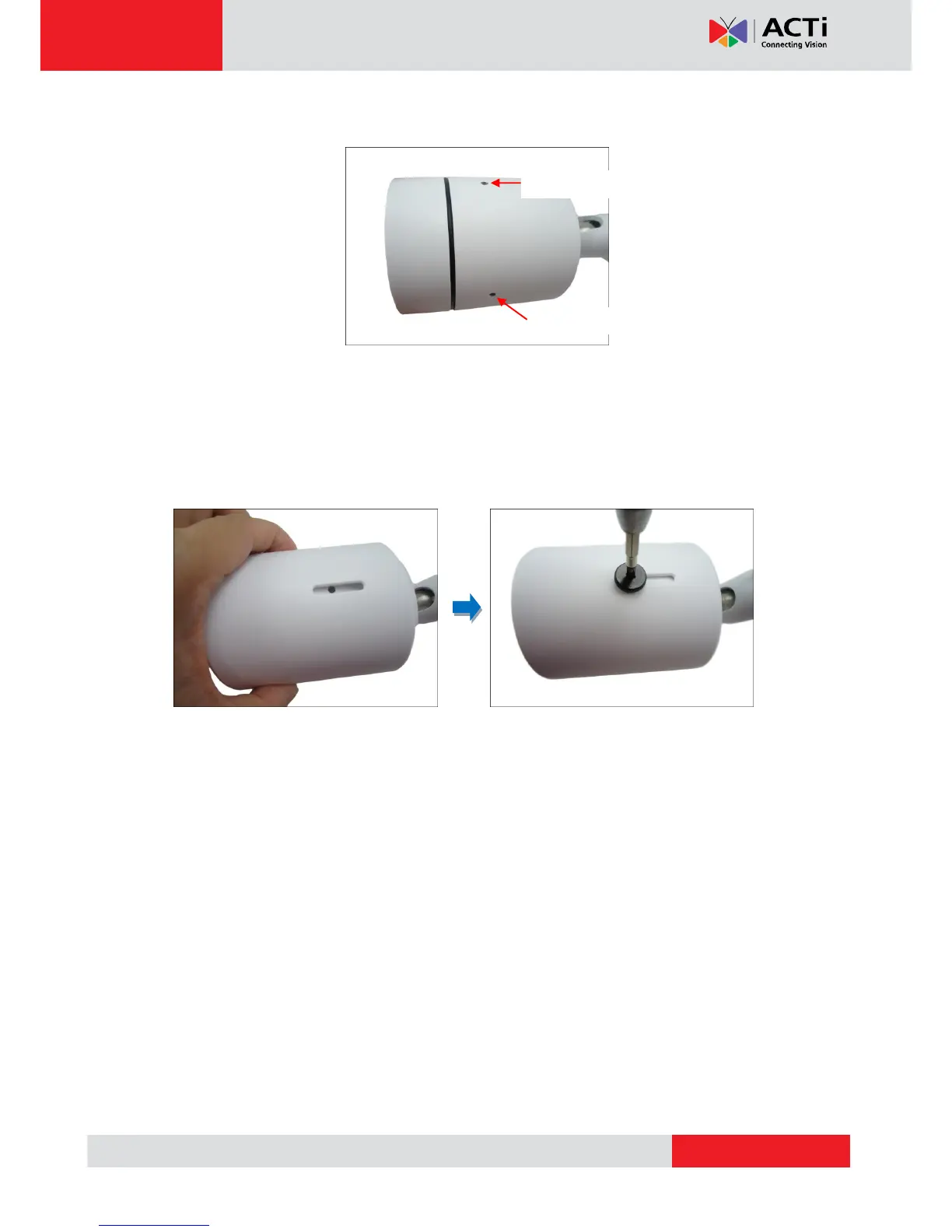

6. Attach the sunshield.
NOTE: There are three (3) holes in which to attach the set screw, use any one of them
depending on the preferred viewing angle. The middle hole is used for horizontal view
format and the two (2) others are for corridor format.
7. Attach the set screw to secure the sunshield.
Horizontal Viewing Angle
Corridor Format Viewing Angle
