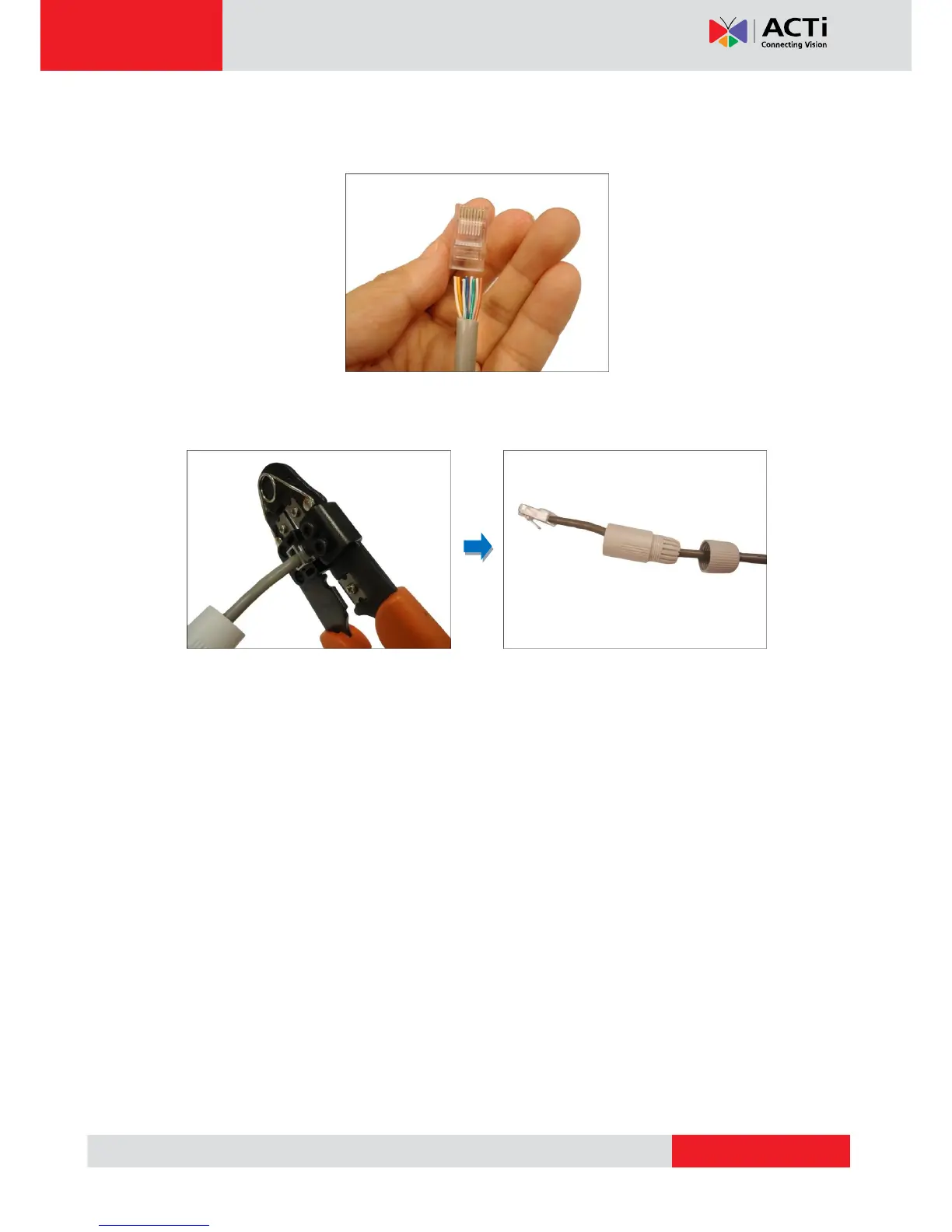

5. With the RJ-45 connector tab facing down, push down the wires into the connector all the
way to the end.
6. Place the connector into the crimping tool, and cinch down to secure the RJ-45 connector
to the Ethernet cable.
