Hardware Manual
22

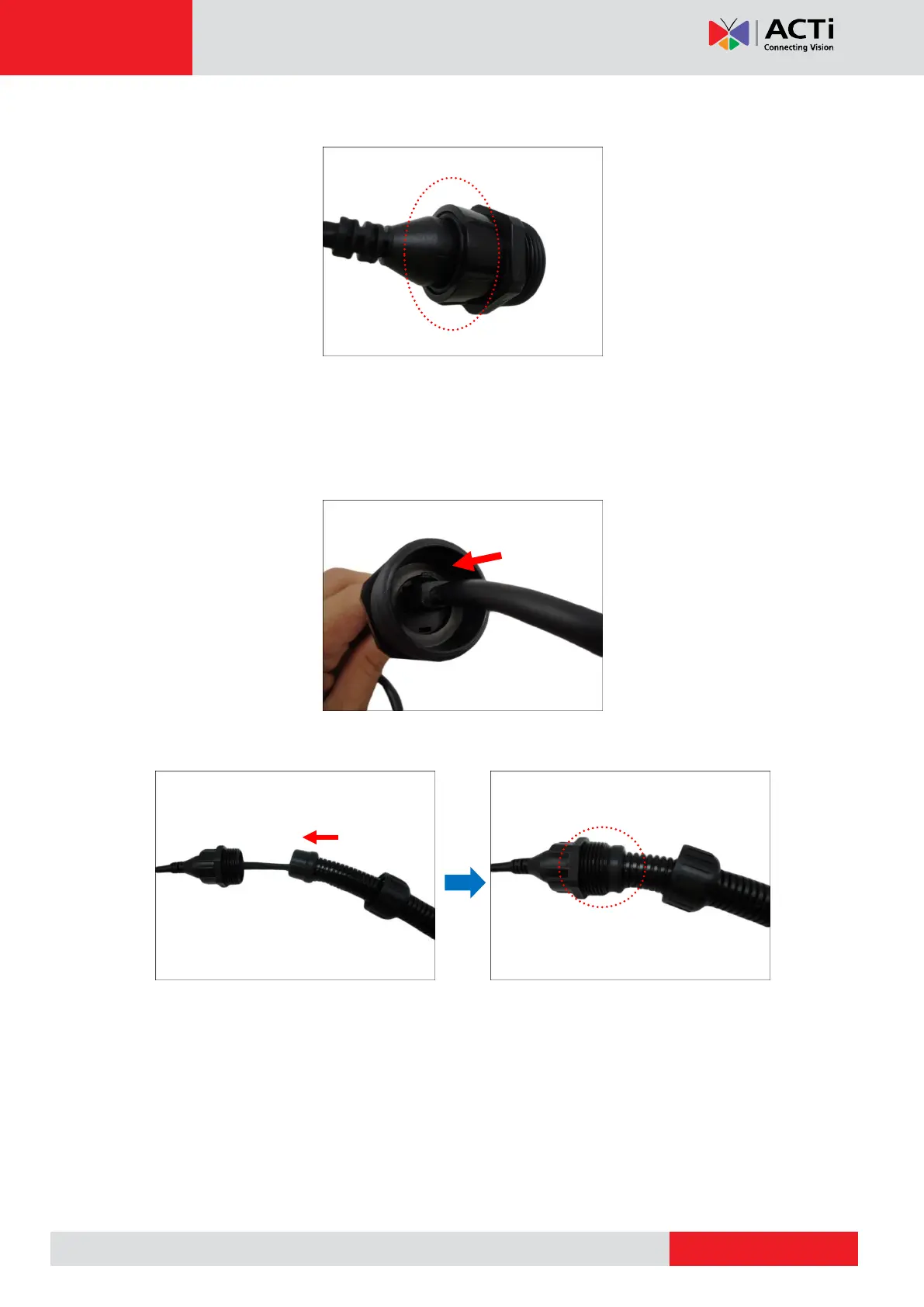

6. Attach the gland body to the Ethernet port of the camera.
IMPORTANT!
Make sure the rubber ring is completely aligned and flat on the gland body to avoid
possible water leakage.
7. Connect the Ethernet connector to the Ethernet port of the camera.
8. Insert the sealing rubber into the conduit gland body.
