www.acti.com
E51 Hardware User’s Manual
9

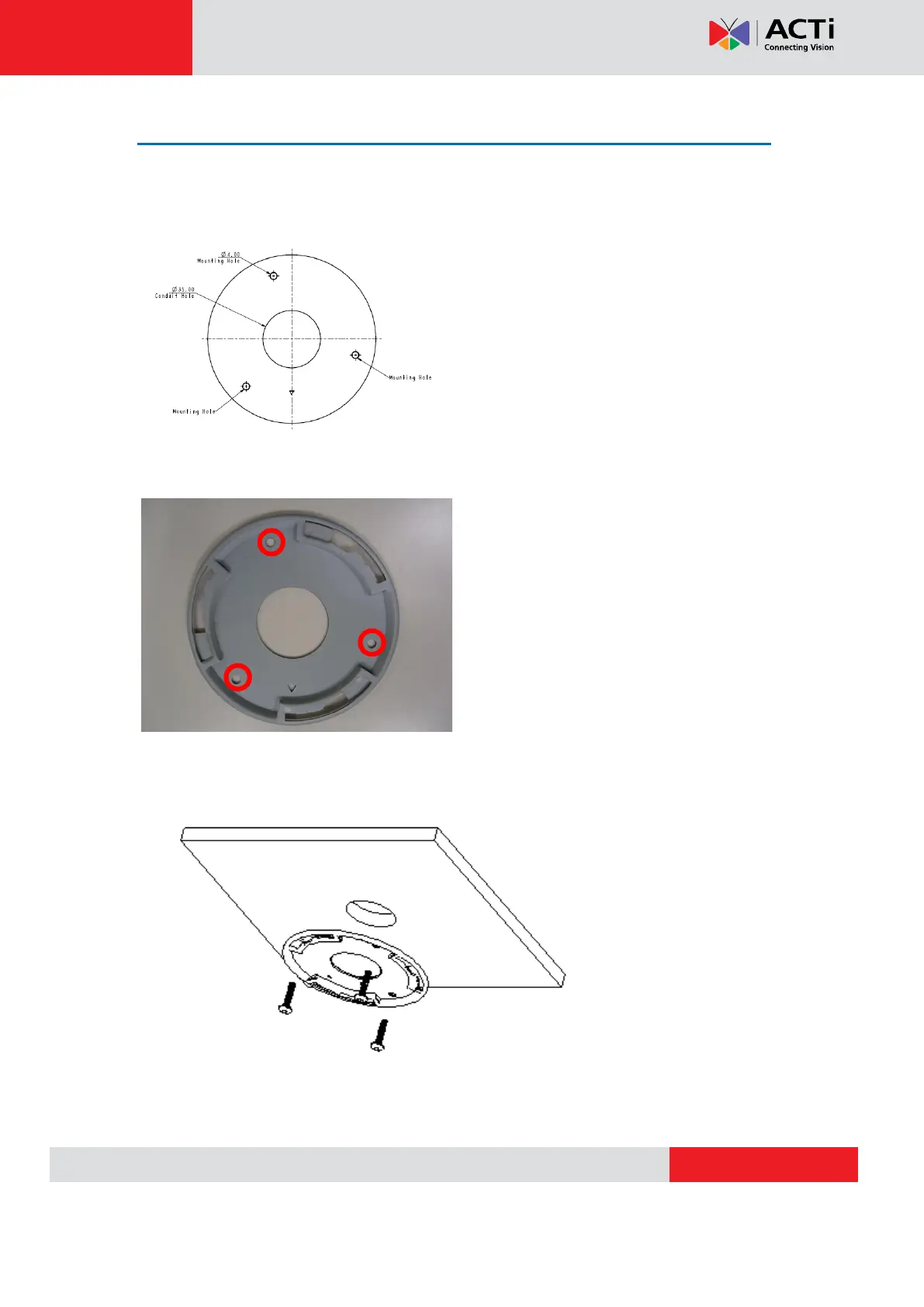

Installation Procedure
Ceiling Mount
Use the drill template, and drill a hole with φ35 on the ceiling
Use the mounting plate and choose the correct three screw holes.
Tighten the plate to ceiling with T4*20 screws (not to use screws other than flat heads)
