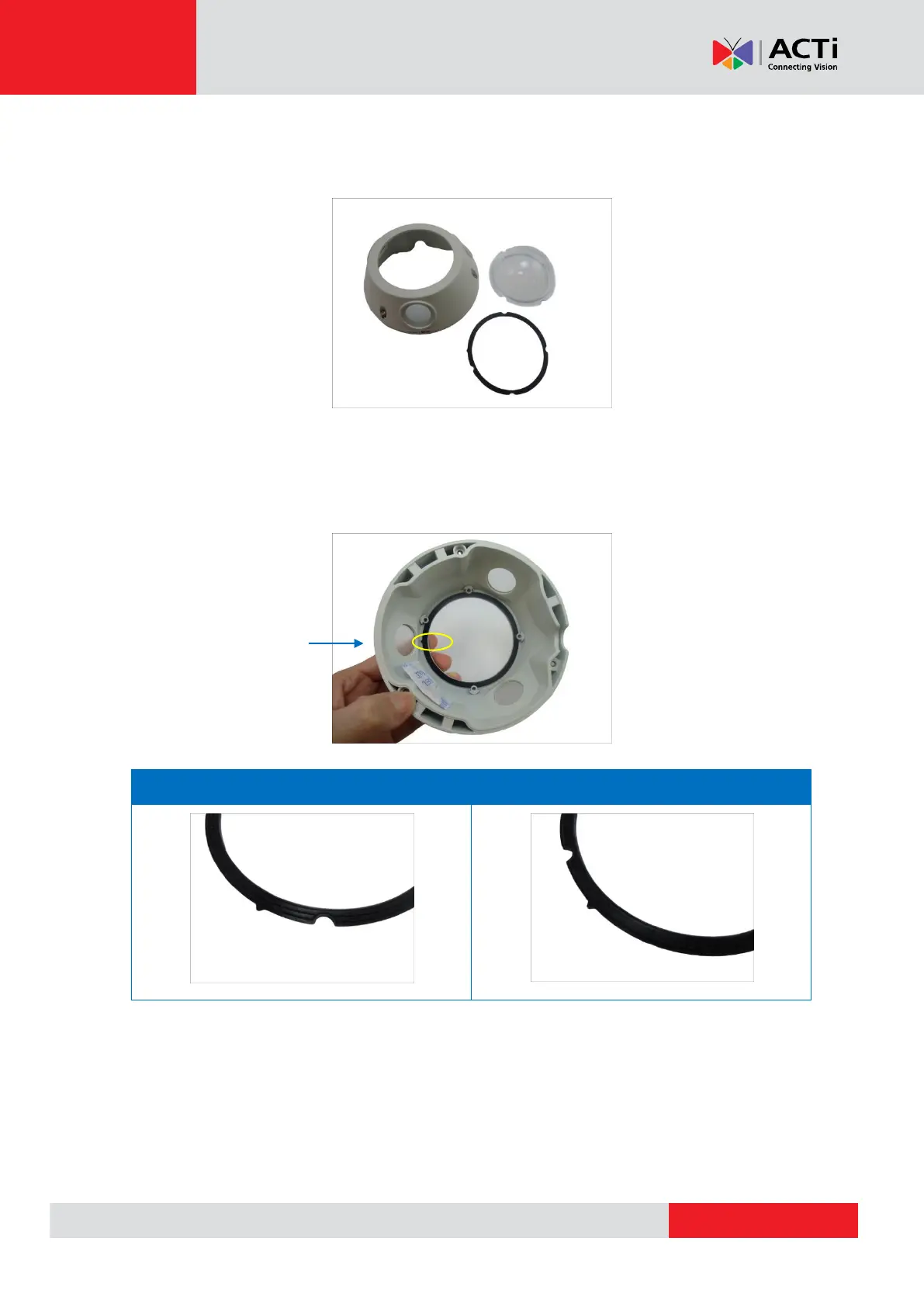

5. Remove the black rubber from the transparent dome cover. Below is an example of the
detached parts.
6. Align and place the rubber on the dome cover housing with the arrow pointing towards the
camera logo. Note that the side of the rubber with 3 lines should face the housing while the
side with 2 lines should face the camera module.
Dome Cover Housing Side
Camera Module Side
Camera logo here
