SAFETY FEATURES & ELECTRICAL POWER INFORMATION
The pressure washer is equipped with a stop device that will sense when the trigger on
the gun is released. It will open the power circuit to the motor, and cause the pressure
washer motor to stop. The motor will start again when the trigger is pulled.
WARNING
Thepressurewasherisalsoequippedwithamainpower“ON/OFF”switchlocated
ontheunit.Itshouldalwaysbemovedtothe“OFF”positionwhenthepressure
washerisnotbeingusedtopreventpossibleinjuryordamage.
DANGER
Improperconnectionofpoweroutletcanresultinariskofelectricshock.Checkwith
aqualiedelectricianorservicepersonnelifyouareindoubtastowhethertheout-
letisproperlygrounded.Donotmodifytheplugprovidedwiththeproduct—Ifitwill
notttheoutlet,haveaproperoutletinstalledbyaqualiedelectrician.Donotuse
anytypeofadaptorwiththisproduct.
ExtensionCords
If possible, do not use extension cords with this product. However, if you must use one,
observe all of the warnings and instructions listed below:
Useasufcientgauge:
Maximum cable length: 50’ (15.2 m). Only use 12 or 14 AWG rated extension cords.
• Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking that reads “Acceptable for use with outdoor appliances; store
indoors while not in use.”
• Use only extension cords having an electrical rating not less than the rating of the product.
• Do not use damaged extension cords. Examine extension cord before using and replace
if damaged. Do not abuse extension cord and do not yank on any cord to disconnect.
• Keep cord away from heat and sharp edges.
• Always disconnect the extension cord from the receptacle before disconnecting the
product from the extension cord.
• To reduce the risk of electric shock, keep all connections dry and off the ground. Do not
touch plug with wet hands.
CAUTION
Thismachinehasbeendesignedforusewithdetergentsthatarespecicallyap-
provedforpressurewasheruse.Theuseofothercleaningdetergentsmayaffectthe
operationofthemachineandvoidthewarranty.

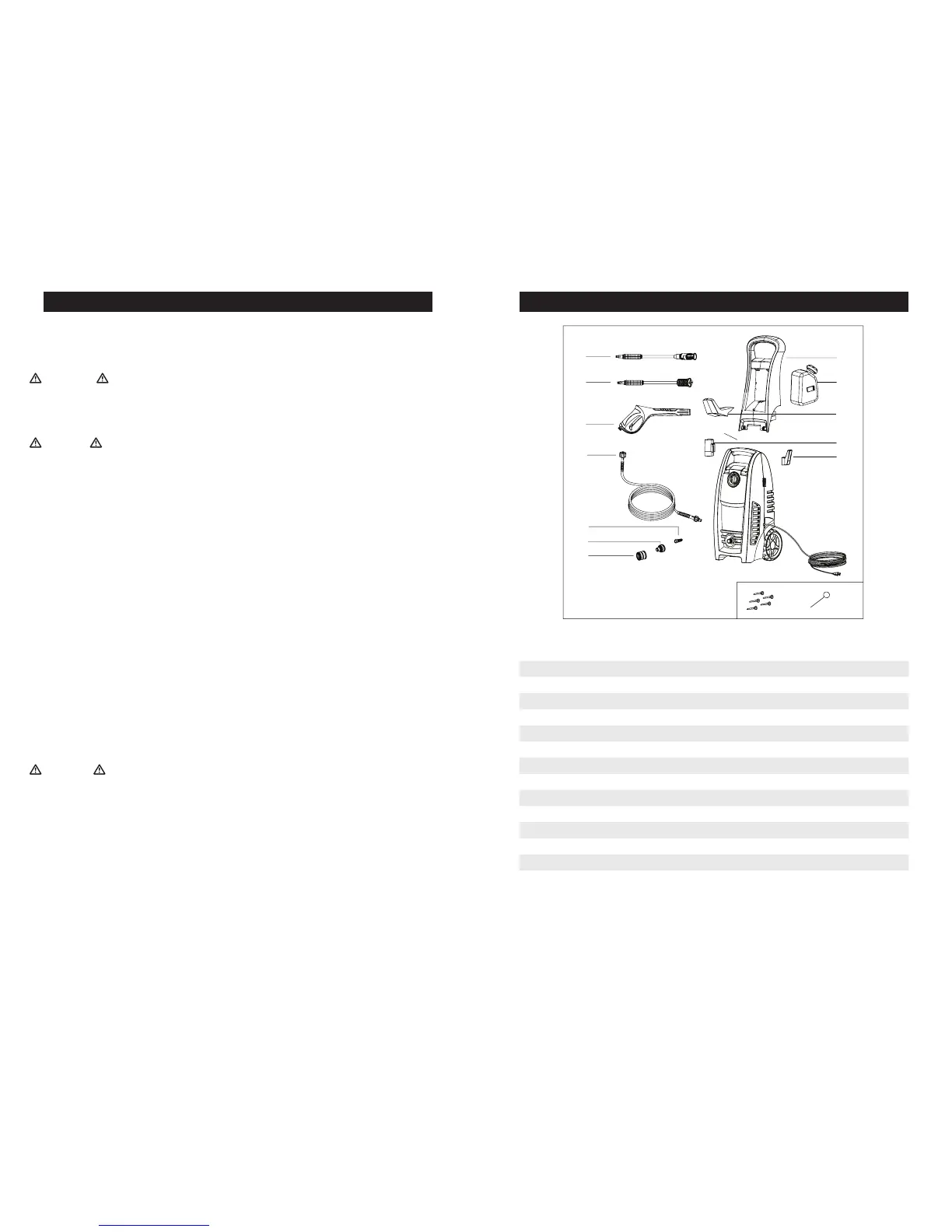

PARTS AND DIAGRAM LIST
ItemNo. Quantity PartName PartsNumber
A 1 Adjustable wand XE06-020-0002
B 1 Turbo wand XE03-020-0001
C 1 Spray gun XE03-020-0003
D 1 High-pressure hose XE03-020-0004
E 1 Water filter XE03-030-0001
F1 1 Quick-connect coupling XE03-030-0003
F2 1 Inlet adapter XE03-030-0002
G 1 Handle XE06-000-0002
H 1 Detergent bottle assembly XE06-020-0006
I 1 Hose bracket XE06-000-0003
J 1 Gun holder XE06-000-0004
K 1 Power cord bracket XE06-000-0005
L 5 Screws XE06-000-0006
M 1 Needle (for nozzle cleaning) XE03-062-0002
* Inlet adapter and water lter come pre-attached on the water inlet, located on the front of the
pressure washer.
G
F2
E
D
C
B
A
I
J
K
H
L
F1
M
