Installation Guide
LC7-2 Control Interface
07
LC7-2 Control Interface Insert
Document: 9590-3024 Ver. 2 200702
4. Press the PROG button to accept changes. Display will show the zone CLOSE percentage and LOW. By default this will
be 0. Press the or buttons to change value.
NOTE
CLOSED and LOW range is 0-45%, with 5% increments per the or buttons press.
5. Press the PROG button to accept changes and return to the zone selection screen. Press the EXIT button to return to
Service Menu.
. Advance Series Self-Learn Mode (EVV Indoor Models)
. Ensure all connected zones have been detected or enabled.
. Before activating, ensure the following:
• Return air filter, box and grille are properly installed.
• All doors or any other restrictions that may obstruct the air path back to the return and grille are open.
• Adjustable outlets should be in open position and System Air Balance should be complete.

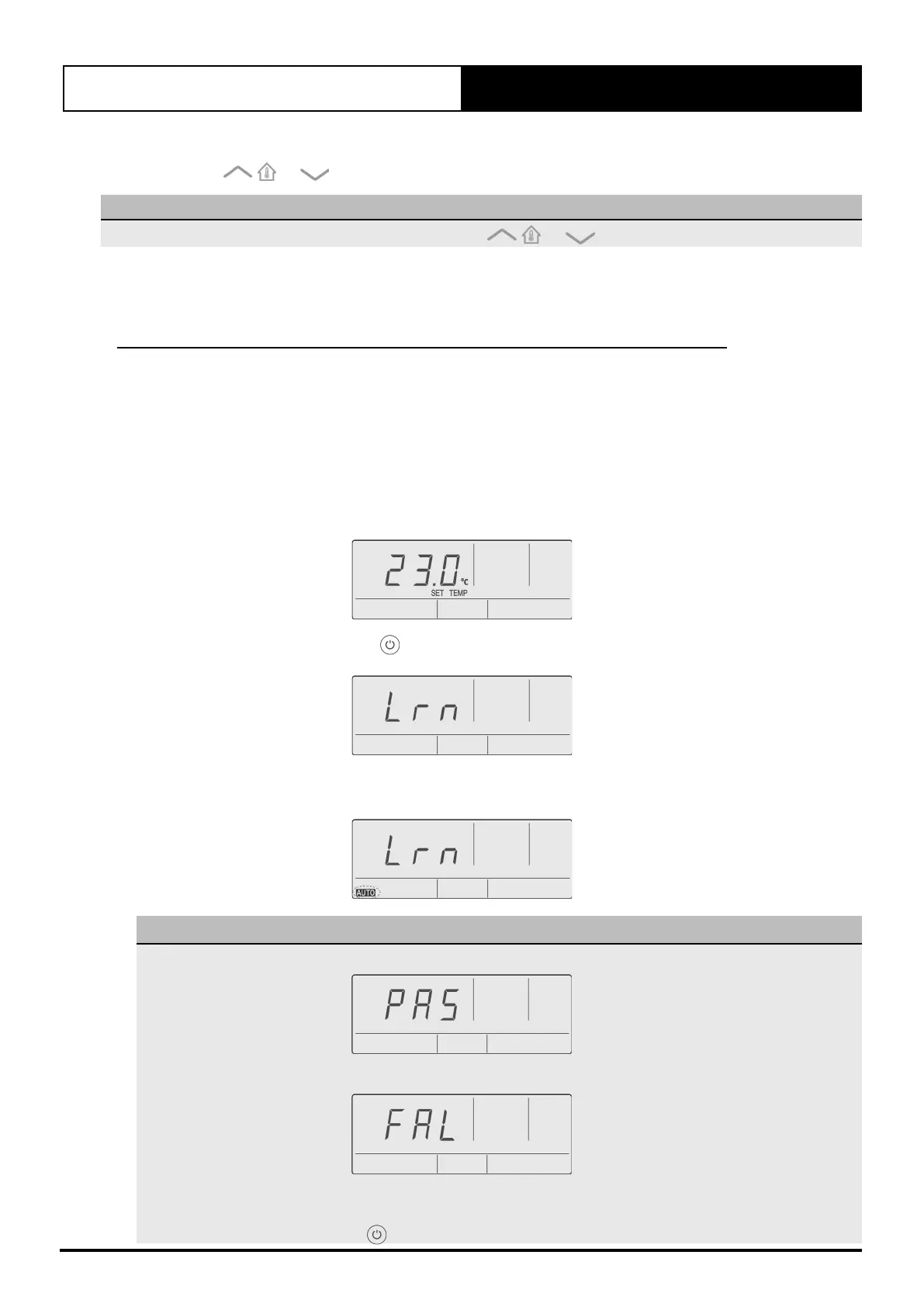

09.01. Initiating Self-Learn Mode
1. System should be in the OFF MODE before activating self-learn mode.
2. Press and hold the FAN button and button for 5 seconds or until the word Lrn appears on the display and
release.
3. Press the FAN button once and release.
4. AUTO will flash on the controller display during operation of self-learn mode.
NOTES
• If a self-learn passes PAS will display on the wall controller.
• If a self-learn fails, FAL will display on the wall controller.
Note: Refer to Service Manual for troubleshooting.
• To return to Main Menu, press EXIT.
• To cancel Self-learn Mode, press button or EXIT.
