ActronAir LM Series Service Manual

8
LM7 / LM7-D / LM24 / LM24W Service Manual
Version 4.0 140402

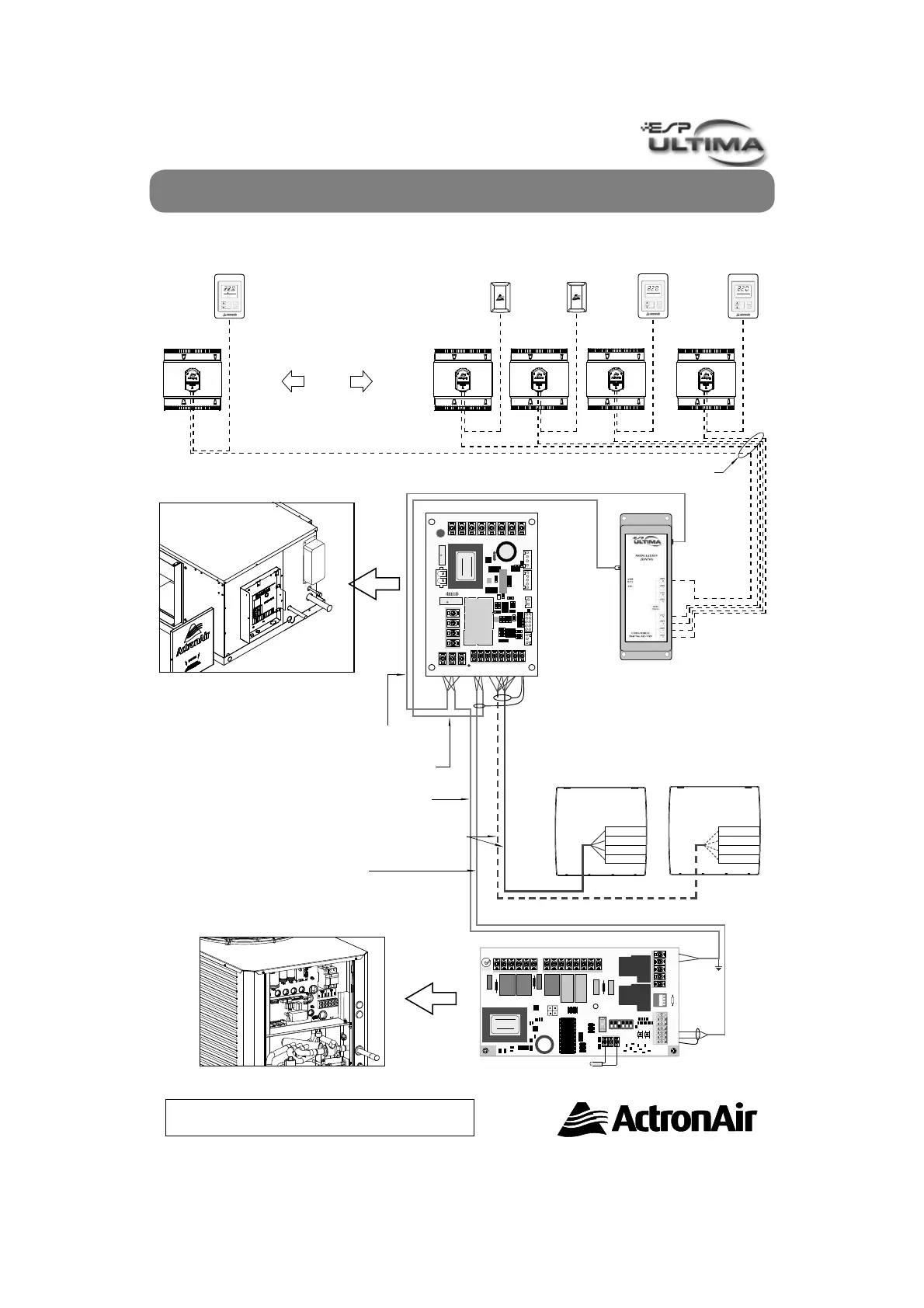

LM SERIES CONTROL / INSTALLATION DIAGRAM
LM-D CONTROLLER WITH ULTIMA 8 ZONE 24VAC ZONE MODULE (8Z-VAV)
4
R
®
NOTES:
1. DIAGRAM SHOWN ABOVE IS A GENERAL PRESENTATION ONLY. REFER TO INDIVIDUAL UNIT WIRING
DIAGRAM FOR COMPLETE WIRING CONNECTION DETAILS AND SPECIFICATIONS.
2. APPLICABLE TO ESP ULTIMA MODEL SERIES ONLY.
OPTIONAL
8-ZONE 24VAC INTEGRATED ZONE BARRELS
(ZB-10-250 / ZB-12-300 / ZB-14-350 / ZB-16-400)
OPTIONAL
8-ZONE 24VAC ZONE MODULE
(8Z-24V)
OPTIONAL
WALL CONTROLLER 2
(MIMIC LOGIC)
WALL CONTROLLER 1
CONDENSER CPU BOARD
OPTIONAL
ACTRONAIR ZONE BARREL CABLES
CAT5E Cable with Fully Moulded RJ45 Plug
NEUT NEUT NEUT NEUT
LOW
HIGH
ACT
ETH
COMP
LP
LP
HP
REV
HP
N2132
COMP
COM
FAN
HEAT
NEUT
NEUT
ACT
FAN
ON/OFF
15V
DATA
SCRN
WARNING
DAMAGE DUE TO
INCORRECT WIRING
VOIDS WARRANTY
SENSOR
KEY
COMMON
POWER
SENSOR
KEY
COMMON
POWER
WARNING
DAMAGE DUE TO
INCORRECT WIRING
VOIDS WARRANTY
E
DATA /
COM / B
S - 2
S - 1/G
KEY/Y
P W R
AMIB-3
COM / B
COIL OUT
A B C D E
COIL IN
EXV
G A B
SCRN
HIGH
MID
LOW
NEUT
A N E
ActronAir
INDOOR FAN 230V
2020-XXX
AMIB-PXXX
PCB S/N
P.3.X.1.0.0
INDOOR
BOARD
4 CORE 14/0.20 (0.44mm)
Shielded Data Cable
Field Wiring by Installer
For ESP Ultima: Cable must be 2 CORE 14/0.20 (0.44mm
2
) Screened Cable
or 2 CORE 7/0.30 (0.5mm
2
) Twisted Pair Shielded Cable
with Screen Wire connected to the Screen Terminal
2 CORE & EARTH CABLE
(230VAC) - 2m long
2 CORE 14/0.20 (0.44mm)
Shielded Data Cable -2m long
Field Wiring by Installer
2 CORE & EARTH CABLE
(230VAC)
8Z-VAV ZONE MODULE COMPATIBILITY
INDOOR BOARD 8Z-VAV
AMIB-PDVM * Yes
* Available to ESP Ultima Models only.
ROOM
TEMP
MODE
ON/OFF
SET
ZONE COOL HEAT
ESP
OFF
AUTO
MAX
C
TEMP
ZONE CONTROL
ROOM
TEMP
MODE
ON/OFF
SET
ZONE COOL HEAT
ESP
OFF
AUTO
MAX
C
TEMP
ZONE CONTROL
ROOM
TEMP
MODE
ON/OFF
SET
ZONE COOL HEAT
ESP
OFF
AUTO
MAX
C
TEMP
ZONE CONTROL
LM-ZC
OPTIONAL
ZONE
CONTROL
LM-ZC
OPTIONAL
ZONE
CONTROL
LM-ZS
OPTIONAL
ZONE
SENSOR
1-Zone
Up To
8-Zone
Options
INDOOR UNIT
OUTDOOR UNIT
TM
(8Z-VAV)
Cable must be 2 CORE 7/0.30 (0.5mm
2
) Twisted Pair
Shielded Data Cable
TM
