*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
Circuit Protected Amps
18 Horn 10 A
19
Audio
*1, *2
20 A
Interior Right
*3
5 A
20
ACM
*2
20 A
Injector
*1
21 FI Main 15 A
22 DBW 15 A
23 TCU/SBW
*2, *3
10 A
24 Premium AMP 30 A
25 MG Clutch 7.5 A
26
Passenger’s Power Seat
Sliding
20 A
27 Small
*1, *2
15 A
28 BMS 7.5 A
29 Back Up 10 A

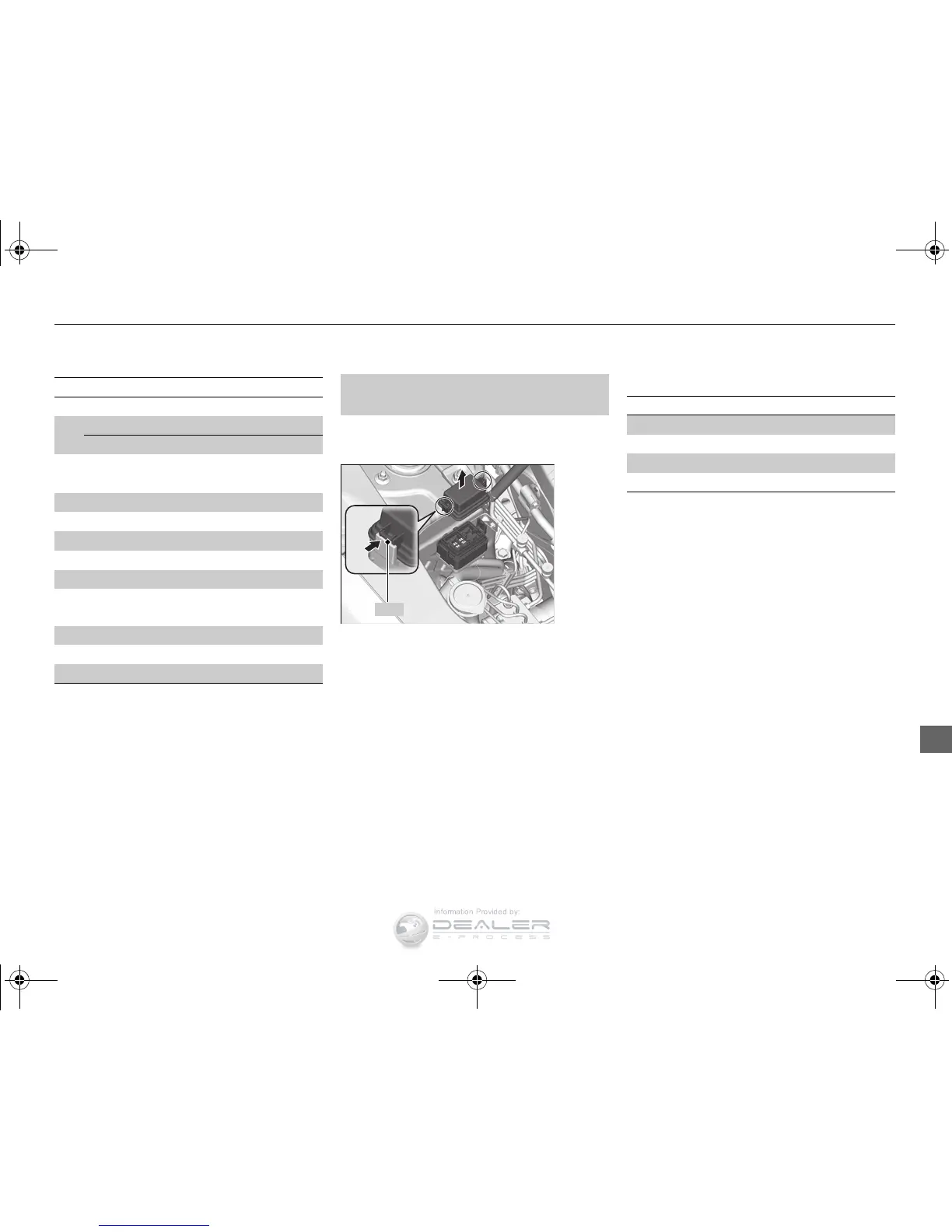

Located near the washer fluid cap. Push the
tabs to open the box.
■
Type B Engine Compartment
Fuse Box
■ Circuit protected and fuse rating
Circuit Protected Amps
1 Left Headlight Low Beam 7.5 A
2 Right Headlight Low Beam 7.5 A
3 Right Headlight High Beam 7.5 A
4 Left Headlight High Beam 7.5 A
