Acura 2015 TLX Quick Reference Guide

512
uuFusesuFuse Locations
Handling the Unexpected

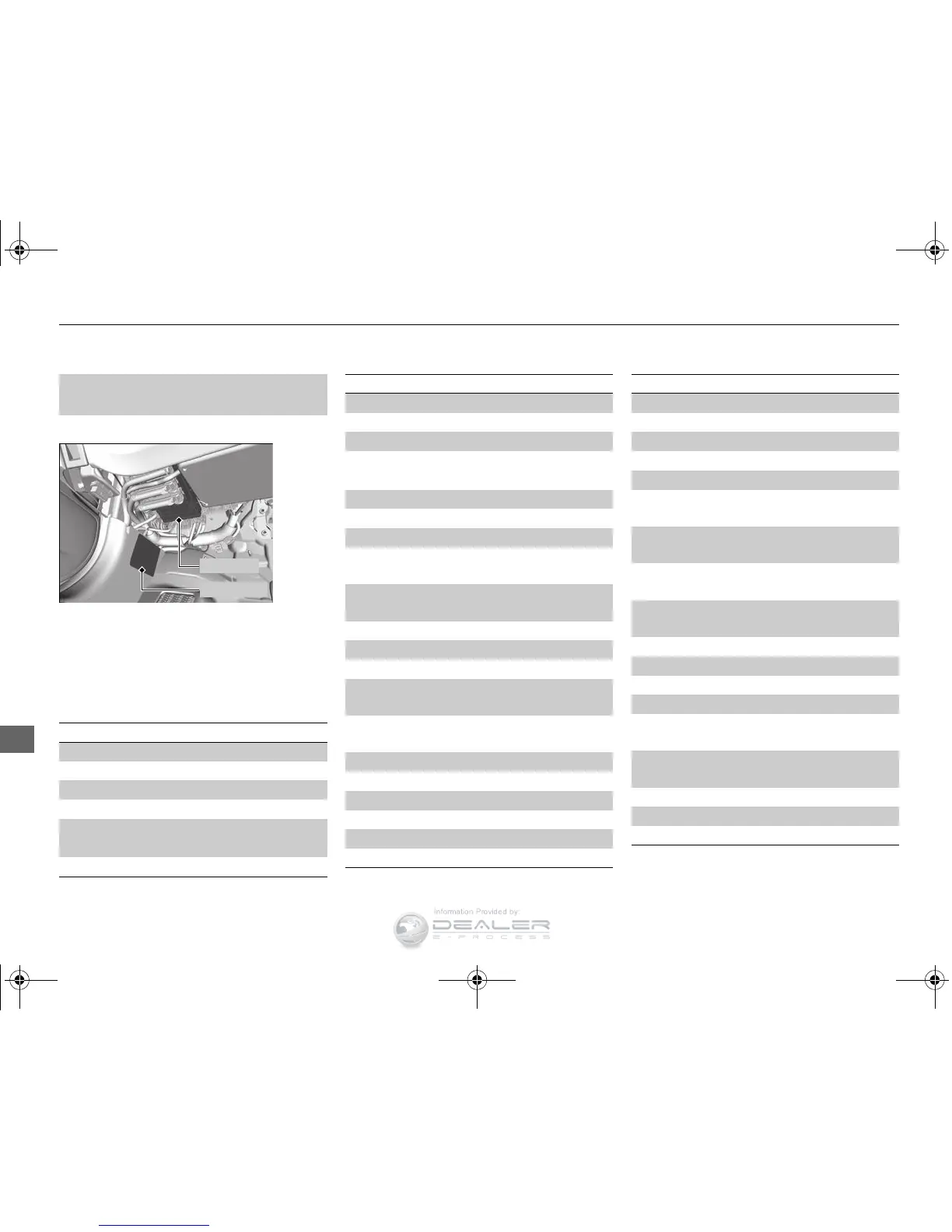

Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■ Circuit protected and fuse rating
■
Type A Driver’s Side Interior
Fuse Box
Fuse Label
Fuse Box
Circuit Protected Amps
1 A/C 7.5 A
2 DRL 7.5 A
3 ST Motor
*
(7.5 A)
4 − −
5
Meter
*1
7.5 A
Auto Dimming Mirror
*2
6 SRS (7.5 A)
7 Option 7.5 A
8 MISS SOL (15 A)
9 Fuel Pump 20 A
10
ABS/VSA
*1
(7.5 A)
Smart
*2
11 Spare Fuse 30 A
12 Wiper 7.5 A
13 ACG 15 A
14
Accessory Power Socket
(Console Compartment)
20 A
15
Driver’s Power Seat
Reclining
20 A
16 Moonroof 20 A
17 AVS/Seat Heaters 20 A
18 − −
19
Passenger’s Side Door
Unlock
10 A
20
Driver’s Side Rear Door
Unlock
10 A
21 Driver’s Side Door Lock (10 A)
22 Passenger’s Side Door Lock 10 A
23 Driver’s Side Door Unlock (10 A)
24 SRS 10 A
25 Instrument Panel Lights 7.5 A
26 ACC Key Lock 7.5 A
Circuit Protected Amps
*1:2WD models
*2:AWD models
27 Parking Lights 7.5 A
28 Lumbar Support 10 A
29 Right DRL 7.5 A
30 Washer 20 A
31 SMART 10 A
32
Driver’s Side Power
Window
20 A
33
Passenger’s Side Power
Window
20 A
34
Rear Driver’s Side Power
Window
20 A
35
Rear Passenger’s Side
Power Window
20 A
36 Driver’s Power Seat Sliding 20 A
37 ACCESSORY 7.5 A
38 − −
39 Left DRL 7.5 A
40
Accessory Power Socket
(Center Pocket)
20 A
41
Rear Driver’s Side Door
Lock
10 A
42 Door Lock 20 A
Rear Seat Heater
*
(15 A)
Heated Steering Wheel
*
(10 A)
Circuit Protected Amps
* Not available on all models
