uuFusesuFuse Locations
Handling the Unexpected
*1:2WD models
*2:AWD models
Circuit Protected Amps
A − −
B− −
C Meter
*2
7.5 A
DBack Up
*2
10 A
E Stop
*2
7.5 A
F Parking Lights
*2
15 A
G Audio ACC
*2
7.5 A
Rear Seat Heater
*, *1, *2
(15 A)
A ABS/VSA
*2
7.5 A
BMICU
*2
7.5 A
C − −
D− −
E STRLD
*2
7.5 A
FAudio
*2
20 A
G ACM
*2
7.5 A
Heated Steering Wheel
*, *1, *2
(10 A)
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Grasp the bottom edge of the outer
panel.
2. Pull the panel towards you, then remove
it.
Fuse locations are shown on the outer
panel.
■

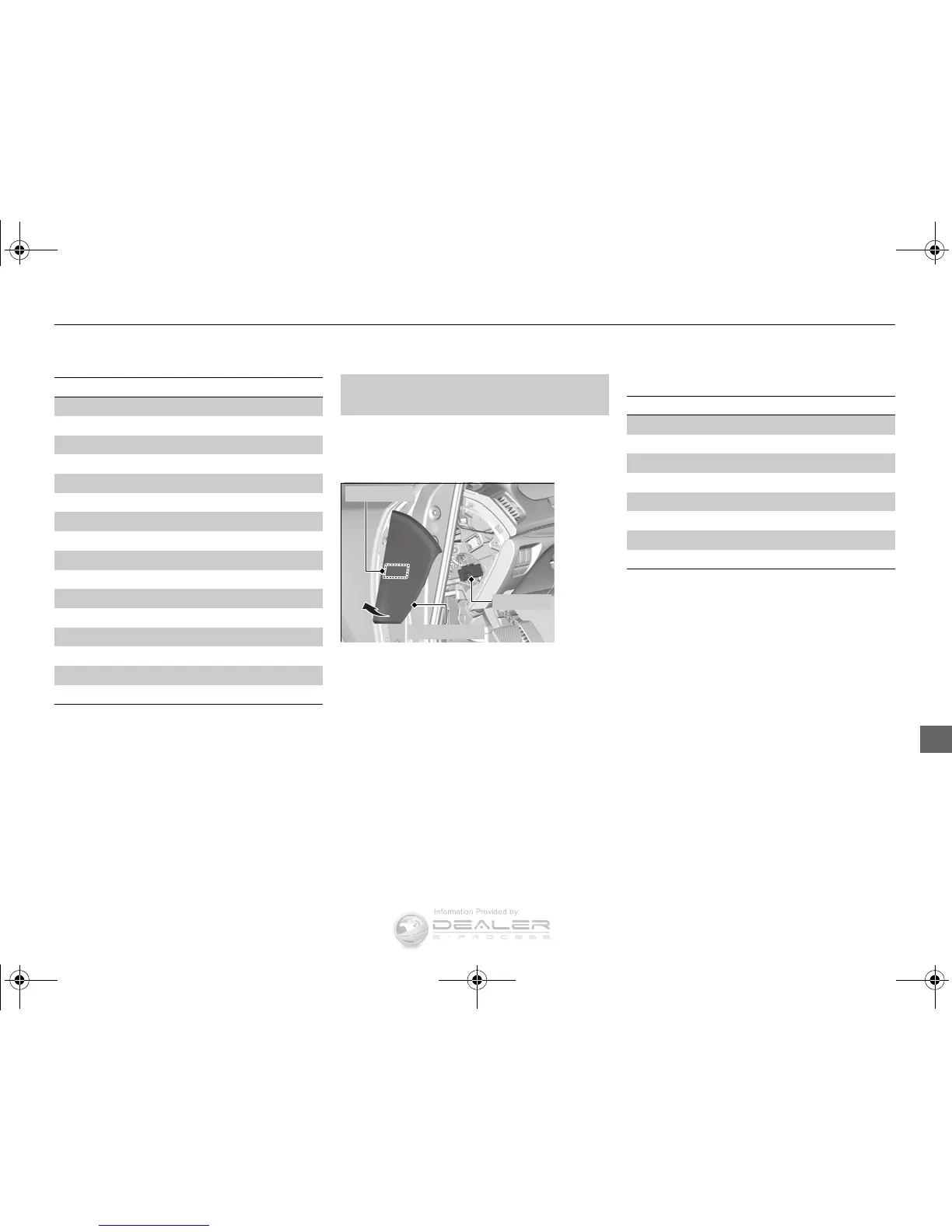

Type B Driver’s Side Interior
Fuse Box
Outer Panel
Fuse Box
Fuse Label
■ Circuit protected and fuse rating
*1:AWD models
Circuit Protected Amps
1 P-AWS L (40 A)
2 e-pretensioner Right
*
(20 A)
3 e-pretensioner Left
*
(20 A)
4 ACC Radar
*
(10 A)
5 Idle Stop
*1
(30 A)
6 P-AWS R (40 A)
7 FR DE-ICE
*
(15 A)
8 Idle Stop
*1
(30 A)
* Not available on all models
