709
uuFusesuFuse Locations
Continued

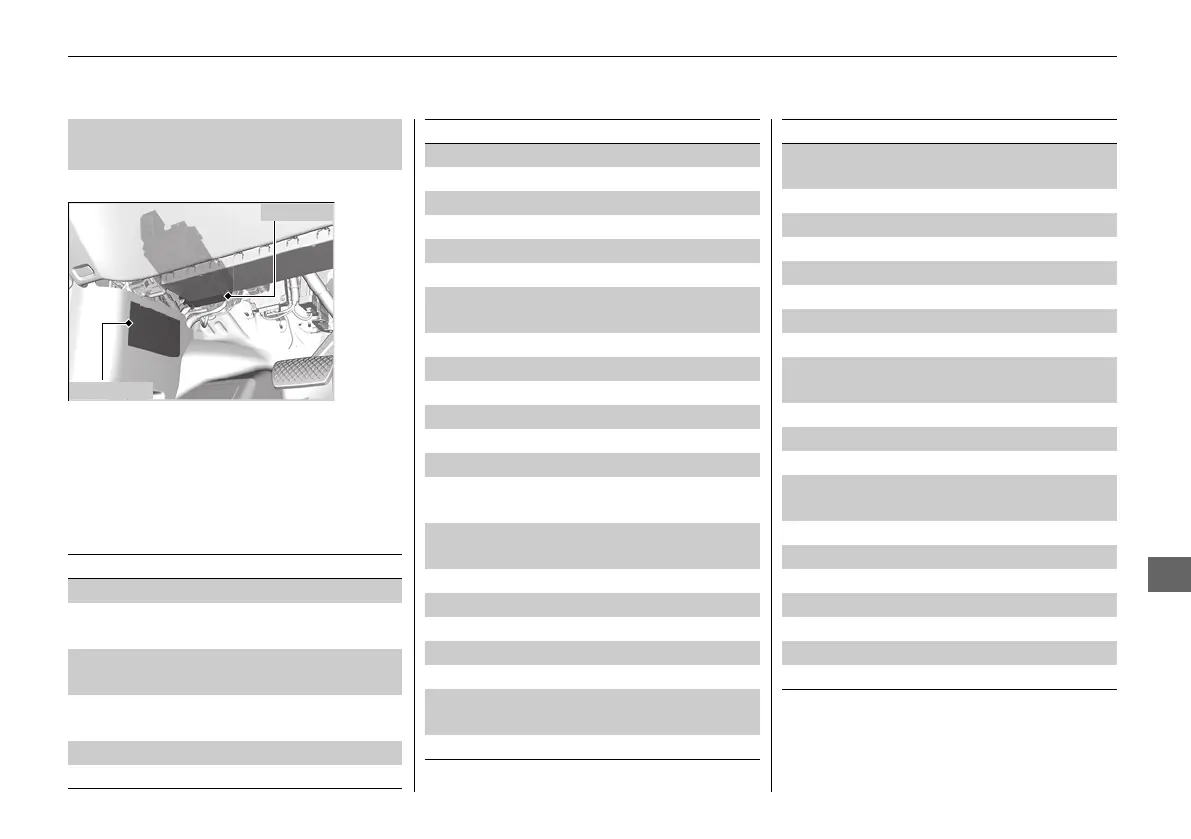

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■
Circuit protected and fuse rating
■
Driver’s Side Interior Fuse Box
Type A
Circuit Protected Amps
1 Driver’s Power Window 30 A
2
Front Passenger’s Power
Window
30 A
3
Rear Passenger’s Side
Power Window
30 A
4
Rear Driver’s Side Power
Window
30 A
5 Option 10 A
6 SRS 10 A
7 − −
8 − −
9 − −
10 Door Lock Main 20 A
11 Meter 10 A
12 Transmission 10 A
13
Battery Fan
*1
−
*2
10 A
−
14 Starter Motor 10 A
15 Driver’s Door Unlock 7.5 A
16 Panoramic Roof 20 A
17 − −
18 − −
19 − −
20 Ambient Lighting
(10 A)
*1
10 A
*2
21
Accessory Power Socket (in
the Console Compartment)
20 A
22 Keyless Access System 10 A
23 Driver’s Door Lock 7.5 A
24 − −
25 Shifter 10 A
26 SRS 10 A
27 ACG
15 A
*1
10 A
*2
28 VSA/ABS 10 A
Circuit Protected Amps
*1:3.5 L engine models
*2:3.0 L engine models
29 Fuel Pump
20 A
*1
10 A
*2
30 Driver’s Side Door Unlock 10 A
31 Passenger’s Side Door Unlock 7.5 A
32 Steering Column Adjust 20 A
33 IMG 10 A
34 − −
35 Steering Column Adjust 20 A
36 Sunshade 20 A
37
−
*1
Audio Amp
*2
−
(20 A)
38 Option 10 A
39 Passenger’s Side Door Lock 7.5 A
40 Driver’s Power Seat 30 A
41
−
*1
Driver’s Massage Seat
*, *2
−
(10 A)
42 − −
43 AIRCON 10 A
44 Daytime Running Lights 10 A
45 ACCESSORY 10 A
46 − −
47 Driver’s Side Door Lock 10 A
48 − −
Circuit Protected Amps
* Not available on all models
24 ACURA MDX-31TYA6200.book 709 ページ ２０２３年３月２日 木曜日 午後１２時４４分
