Acura MDX - Engine Compartment Fuse

648
uuFusesuFuse Locations
Handling the Unexpected

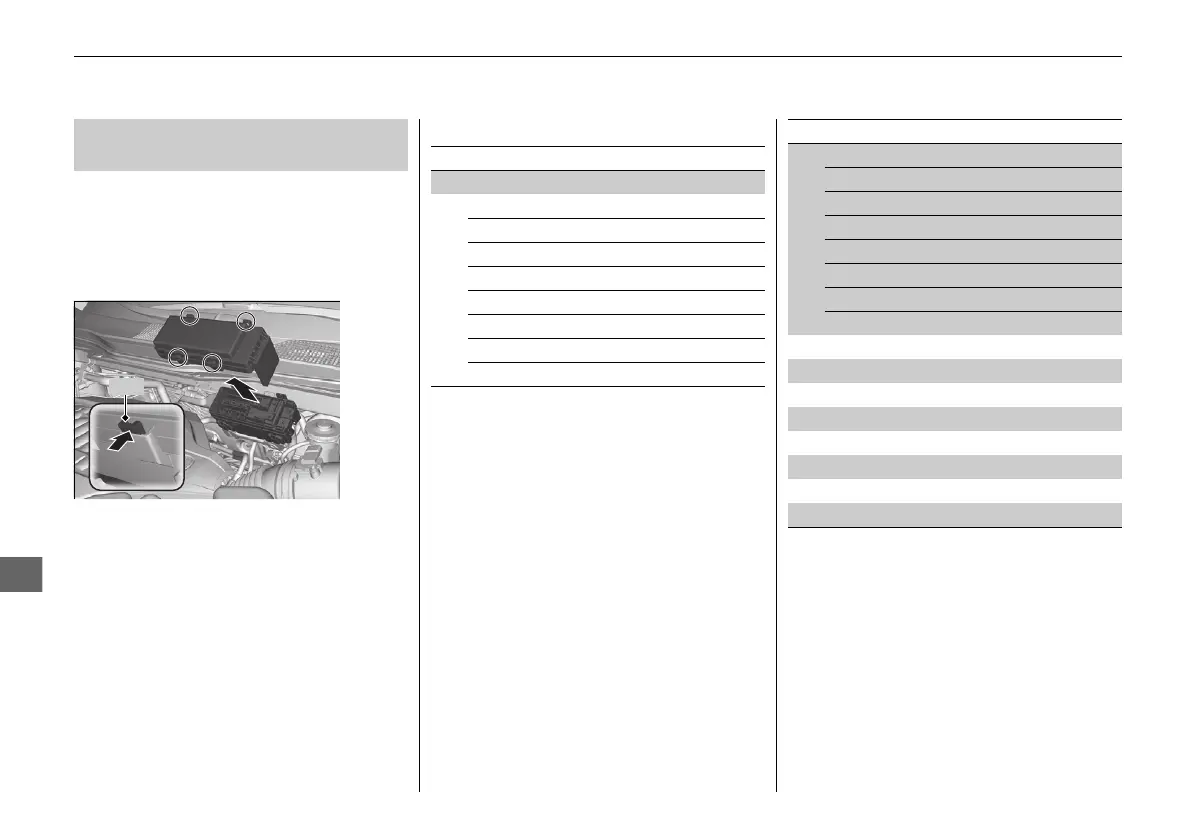

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the battery. Push the tabs to
open the box.
■
Engine Compartment Fuse
Box Type B
Tab
■ Circuit protected and fuse rating
Circuit Protected Amps
1 Main Fuse 200 A
2
AS F/B-1 50 A
DR F/B-2 50 A
DR F/B-1 50 A
RR DEF 40 A
RR F/B-2 60 A
FR Blower 40 A
H/L Washer
*
(30 A)
RR BLOWER & BMS 30 A
3
SUB F/B-1 60 A
VSA MTR 40 A
AS F/B-2 60 A
R/B Main 60 A
EPS 70 A
SUB F/B-2 60 A
VSA FSR 20 A
ESB 40 A
4 Stop & Horn & Hazard 30 A
5 EOP RLY 30 A
6RR F/B-1 40A
7 FI Main 40 A
8 Stop & Horn 20 A
9 Hazard 10 A
10 BMS 7.5 A
11 − −
Circuit Protected Amps
* Not available on all models
