Vehicle Exterior

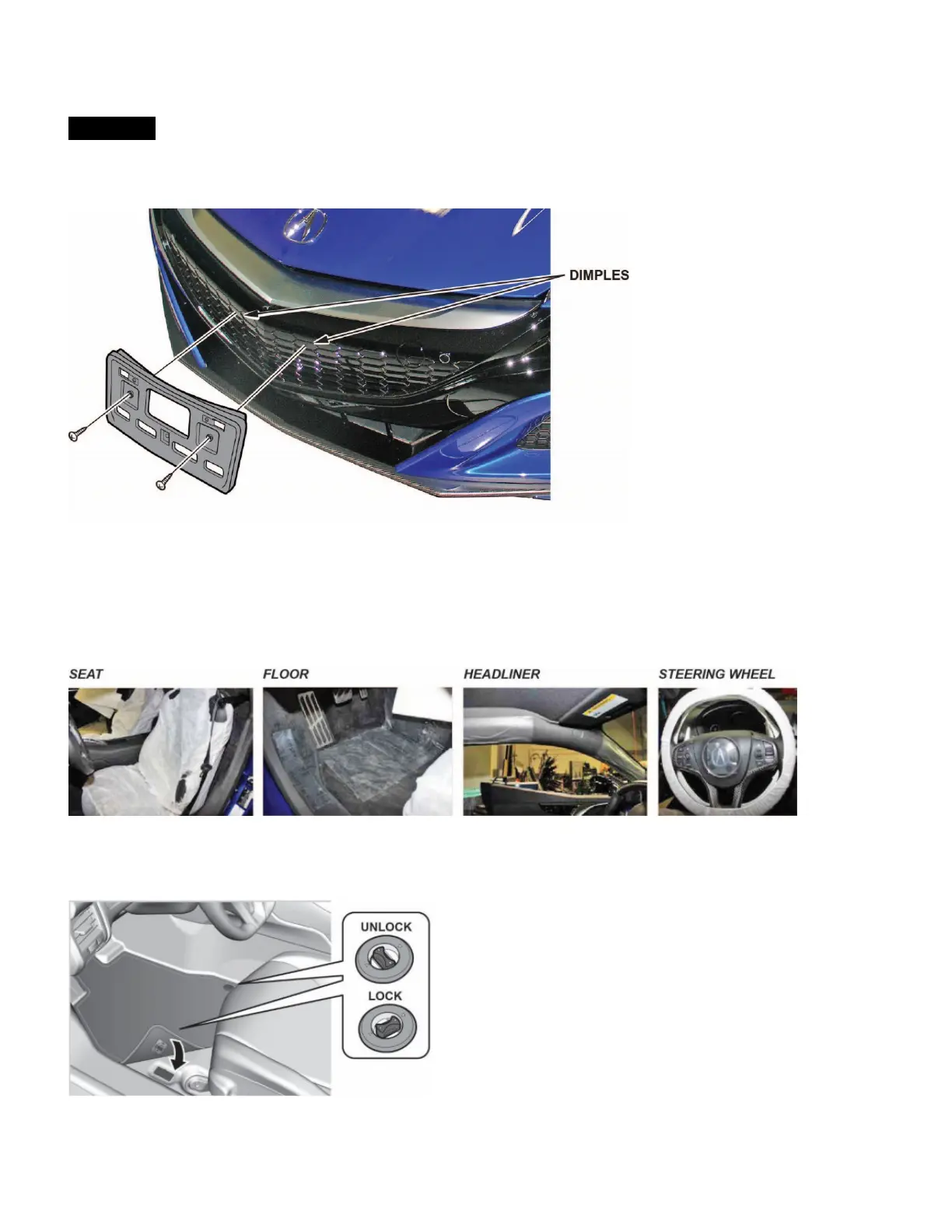

24. Install the Front License Plate Holder (If Required) and Rear License Plate Hardware
NOTE
If the vehicle was pre-ordered by a client, be sure to get their permission before starting this installation.
If state regulations require the use of a front license plate, install the front license plate holder using the self-tapping
screws as shown.
Four Hex-head screws are used to attach the front plate to the holder. The remaining screws are used to attach the
license plates.
Vehicle Interior
25. Remove the Seat, Floor, Headliner, and Steering Wheel Protective Coverings
Carefully remove the protective coverings from the seats, floor, headliner, and steering wheel.
26. Install the Floor Mats
Install the floor mats where they belong. Be sure to place the driver's floor mat eyelets over the anchors in the floor and
turn the knobs clockwise to the lock position. Place the rear floor mat into position; it does not have an anchor.
Page 24 of 25
