AcuRite Iris Sensor Installation Guidelines
INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the ground
in an open area. Higher is better for wind measurement- the National Weather Service
recommends 33 feet (10 meters) high!
MOUNTING OPTIONS The included mounting bracket is designed to screw directly
onto wooden posts or surfaces that are 2”x 4” or larger. The sensor can also be mounted
directly to 3/4” steel pipe (available at hardware stores and home centers).
LEVEL INSTALLATION Use the bubble level on the top of the sensor to ensure level
installation for accurate wind and rain
measurement.
SOLAR CELL INSTALLATION Install the sensor
with the solar cell facing SOUTH. This ensures
the cell receives as much sun as possible and
orients wind direction.

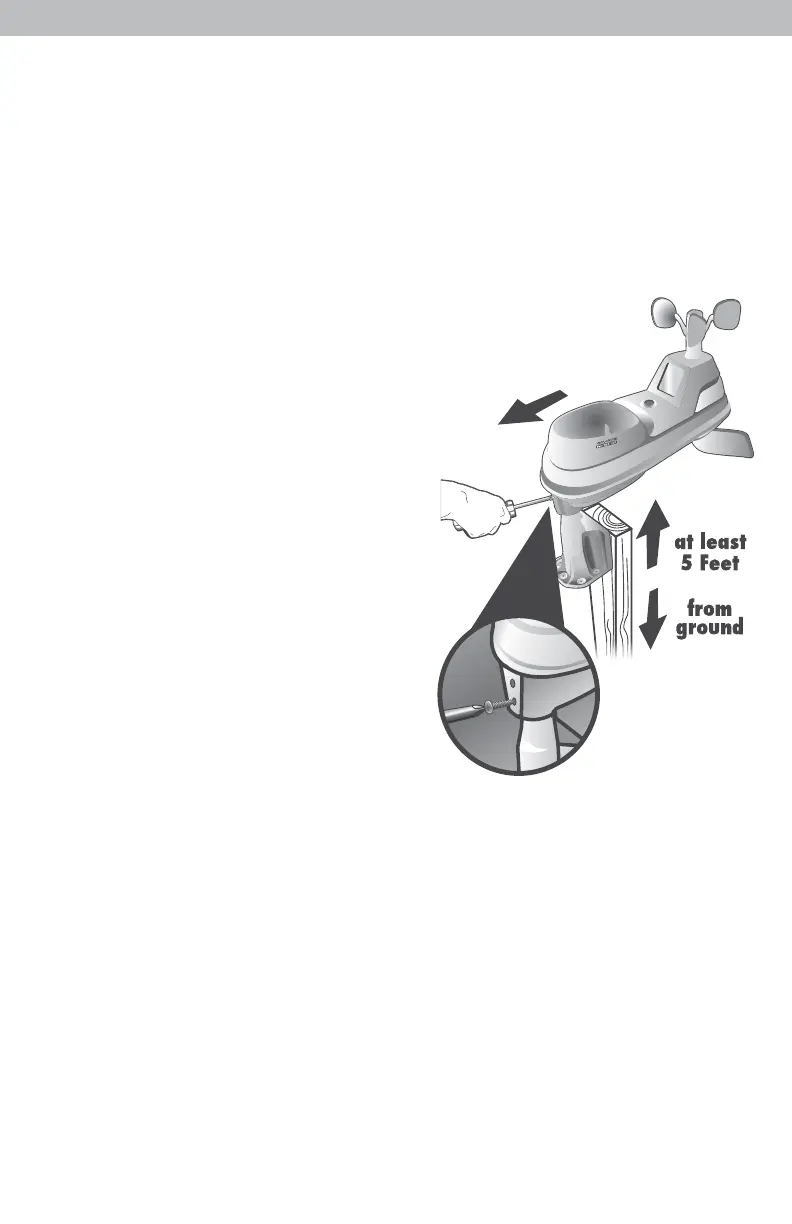

AcuRite Iris Sensor Installation
1. Fasten mounting base (included) to a post or pole
(not included) using the 4 longer screws included
in the hardware bag.
2. Insert the mounting base into the hole on the
bottom of the sensor.
3. Make sure the arrows on the top of the sensor
are pointed in the proper direction and the
bubble level is centered. The solar cell should
be facing south to properly orient the wind
direction.
4. Fasten the sensor into the mounting base using
the 2 shorter screws included in the hardware
bag.
The AcuRite Iris sensor is now ready to use.
Basic Setup is Complete
The AcuRite Iris sensor will now synchronize with the companion unit. It may take a few
minutes for synchronization to complete.
SOUTH
(1.5 meters)
NO OBSTRUCTIONS
ABOVE OR AROUND
