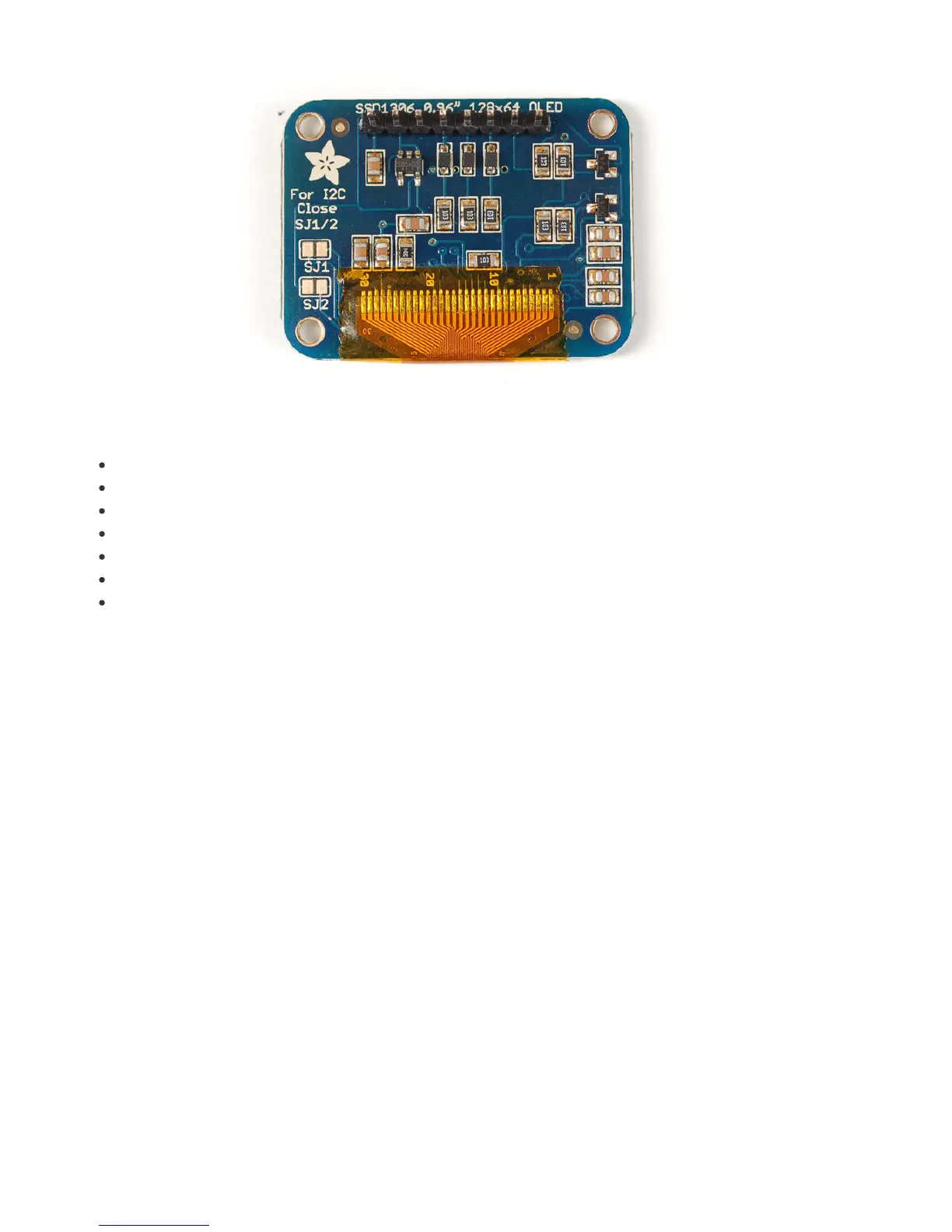

Finally, connect the pins to your Arduino -

GND goes to ground

Vin goes to 5V

DATA to digital 9

CLK to digital 10

D/C to digital 11

RST to digital 13

CS to digital 12

(Note: If using the display with other SPI devices, D/C, CLK and DAT may be shared, but CS

must be unique for each device.)

This matches the example code we have written. Once you get this working, you can try

another set of pins.

Finally you can run the

File®® Sketchbook®® Libraries®® Adafruit_SSD1306®® SSD1306_128x64_spi example

Industries

http://learn.adafruit.com/monochrome-oled-breakouts Page 13 of 22
