Adafruit SSD1306 User Manual

Wiring 128x32 SPI OLED display
128x32 SPI OLED
The 128x32 SPI OLED is very easy to get up and running because it has built in level shifting.

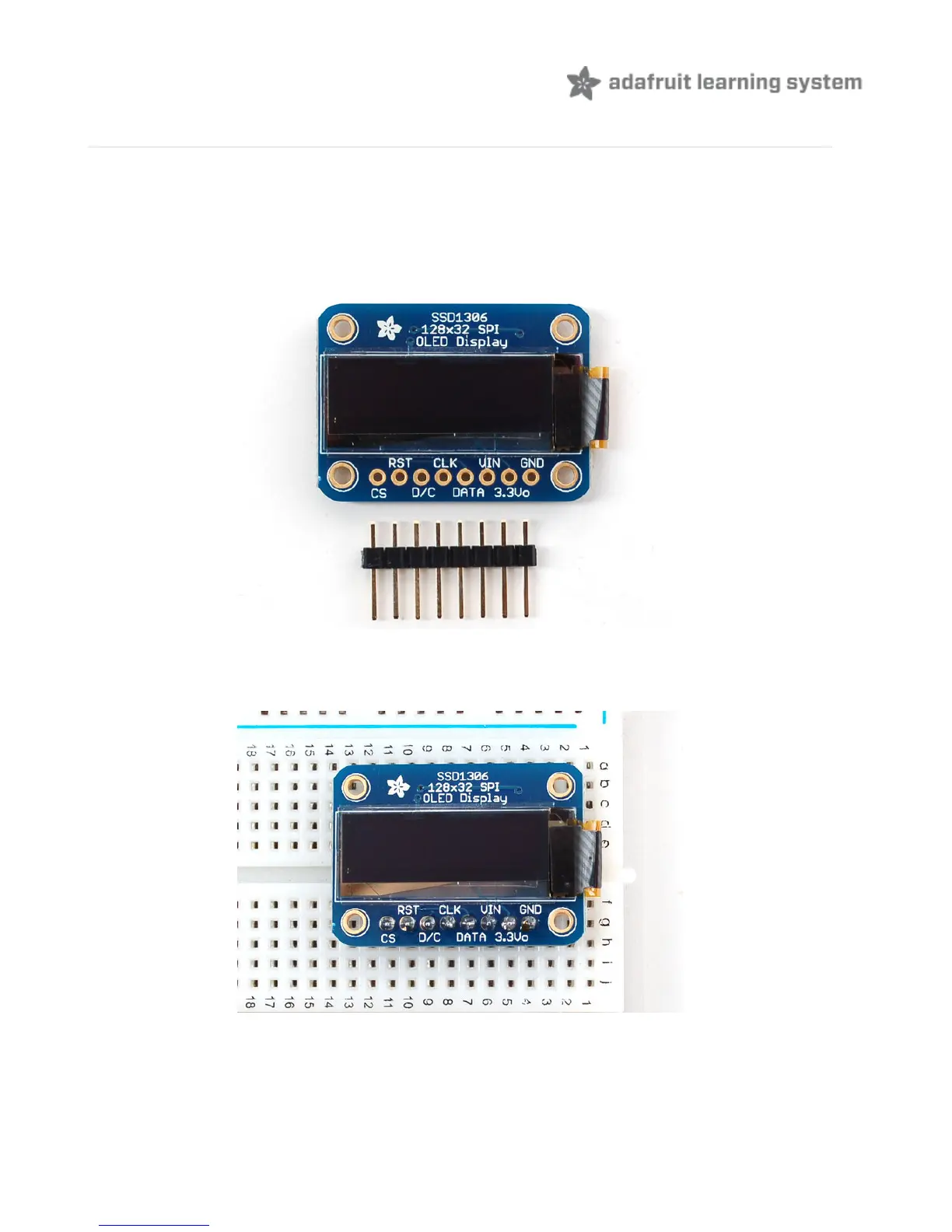

First up, take a piece of 0.1" header 8 pins long.
Plug the header long end down into a breadboard and place the OLED on top. Solder the short
pins into the OLED PCB.
Finally, connect the pins to your Arduino - GND goes to ground, Vin goes to 5V, DATA to
digital 9, CLK to digital 10, D/C to digital 11, RST to digital 13 and finally CS to digital 12.
(Note: If using the display with other SPI devices, D/C, CLK and DAT may be shared, but CS
© Adafruit
Industries
http://learn.adafruit.com/monochrome-oled-breakouts Page 14 of 22

Adafruit SSD1306 Specifications

General

Display Type	OLED
Interface	I2C or SPI
Display Controller	SSD1306
Resolution	128 x 64
Screen Size	0.96 inch
Color	Monochrome
Operating Voltage	3.3V or 5V
Viewing Angle	160 degrees
Pixel Color	White
