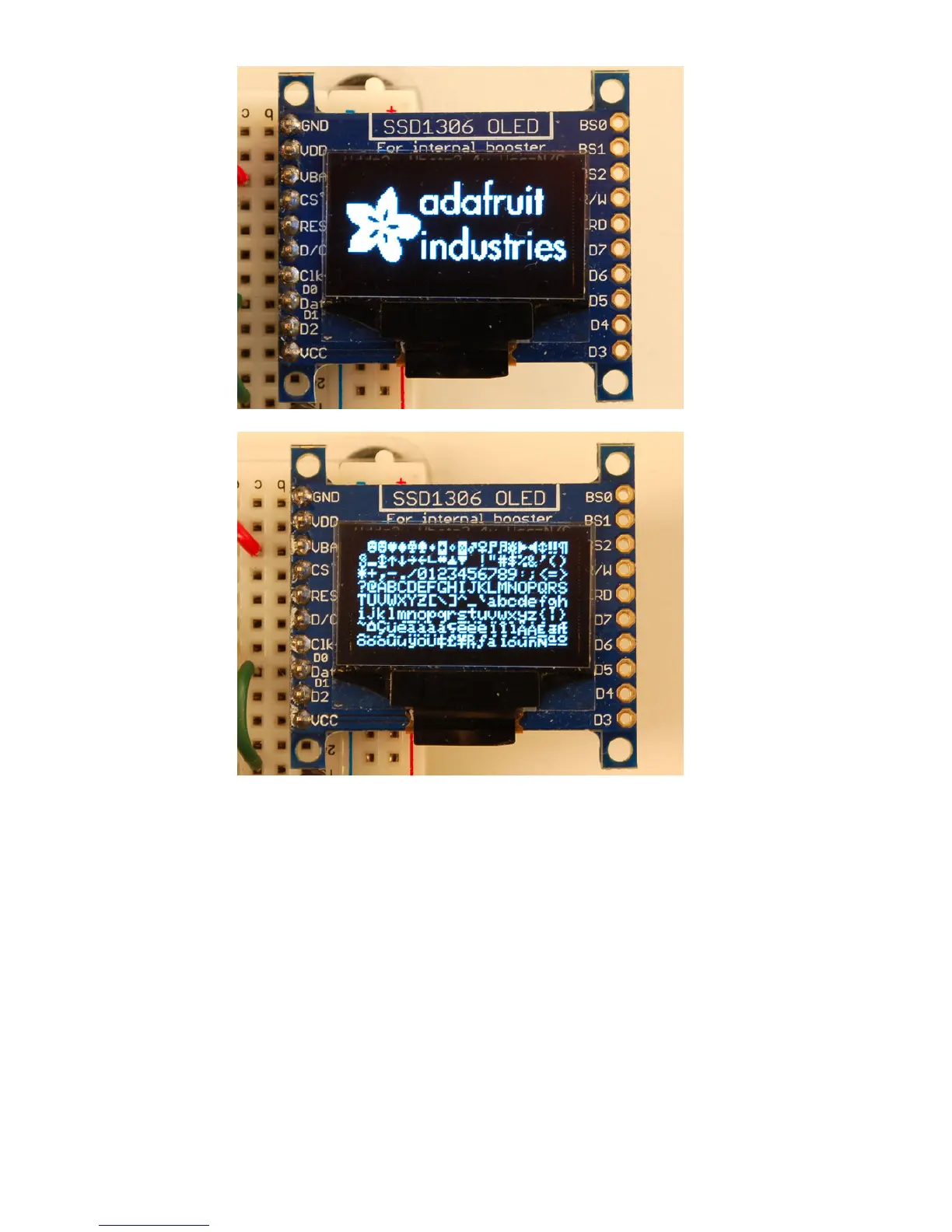

Page #8 background imageLoading...
Page #8 background image
Create Bitmaps
You can create bitmaps to display easily with the LCD assistant software (http://adafru.it/aPs).
First make your image using any kind of graphics software such as photoshop or Paint and save
as a Monochrome Bitmap (bmp)
© Adafruit
Industries
http://learn.adafruit.com/monochrome-oled-breakouts Page 8 of 22

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Adafruit SSD1306 and is the answer not in the manual?

Adafruit SSD1306 Specifications

General IconGeneral
Display TypeOLED
InterfaceI2C or SPI
Display ControllerSSD1306
Resolution128 x 64
Screen Size0.96 inch
ColorMonochrome
Operating Voltage3.3V or 5V
Viewing Angle160 degrees
Pixel ColorWhite
