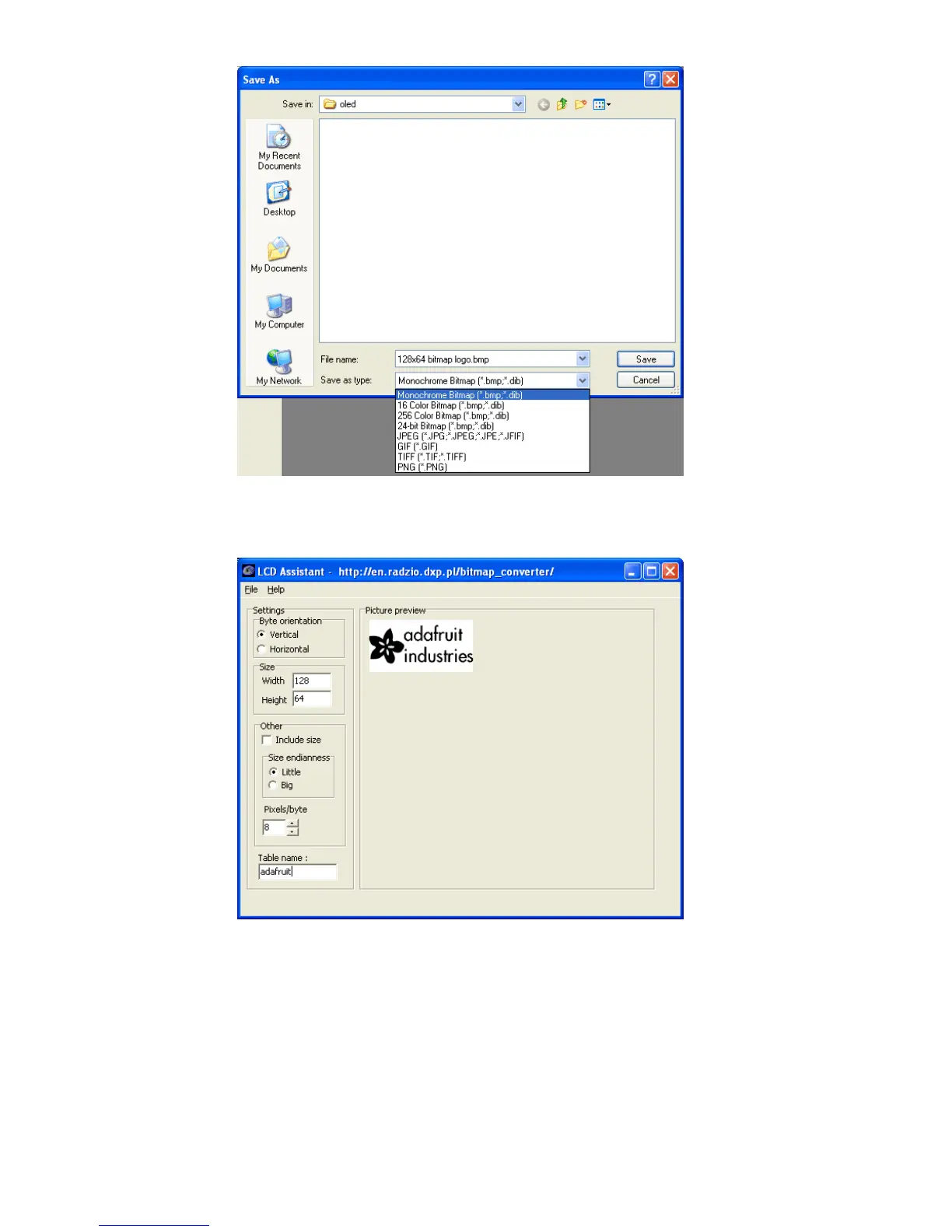

Select the following options (You might also want to try Horizontal if Vertical is not coming
out right)
and import your monochrome bitmap image. Save the output to a cpp file
© Adafruit
Industries
http://learn.adafruit.com/monochrome-oled-breakouts Page 9 of 22

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Adafruit SSD1306 and is the answer not in the manual?

Adafruit SSD1306 Specifications

General IconGeneral
Display TypeOLED
InterfaceI2C or SPI
Display ControllerSSD1306
Resolution128 x 64
Screen Size0.96 inch
ColorMonochrome
Operating Voltage3.3V or 5V
Viewing Angle160 degrees
Pixel ColorWhite
