L-804 Elevated Runway Guard Light
96A0218 Rev. X
Product Introduction
© ADB bvba All Rights Reserved6
2.2 Product
Introduction
The L-804 Runway Guard Light is an elevated unidirectional flashing yellow light fixture that
provides a distinctive warning to pilots that they are approaching a runway holding position
and are about to enter an active runway. The RGL is also used in combination with L-852G
(In-pavement Runway Guard Light), L-852S (In-pavement Stop Bar Light), and L-862S
(Elevated Stop Bar Light) to provide additional safety under low-visibility conditions on the
airfield.
2.2.1 Compliance with
Standards
FAA: L-804 AC 150/5345-46 (Current Edition). ETL Certified.
Meets the requirements of Low-Visibility Taxiway Lighting Systems as specified by FAA AC
150/5340-30.
ICAO: Annex 14, Vol. I, Para 5.3.22 & Appendix 2 Fig. A2-25
CE: Complies with the requirements of the EMC Directive 2004/108/EC
2.2.2 Uses FAA L-804 & ICAO
• Runway guard light
• Runway incursion prevention
2.2.3 Electrical Supply FAA Mode 1 - 115 VA load (requires 100 W isolation transformer)
ICAO Mode 1 - 165 VA load (requires a 150 W or 200 W isolation transformer)
2.2.4 Operating Conditions Temperature: -40 ºF to +131 ºF (-40 °C to +55 ºC)
Humidity: 0 to 100%
Wind: Withstands wind velocities up to 300 mph (480 kph)
2.2.5 Equipment
Specification Data
In cardboard box: 30 x 22 x 17 in (37.5 x 27.5 x 21.25 cm)
Net weight: 37 lb (16.8 kg)

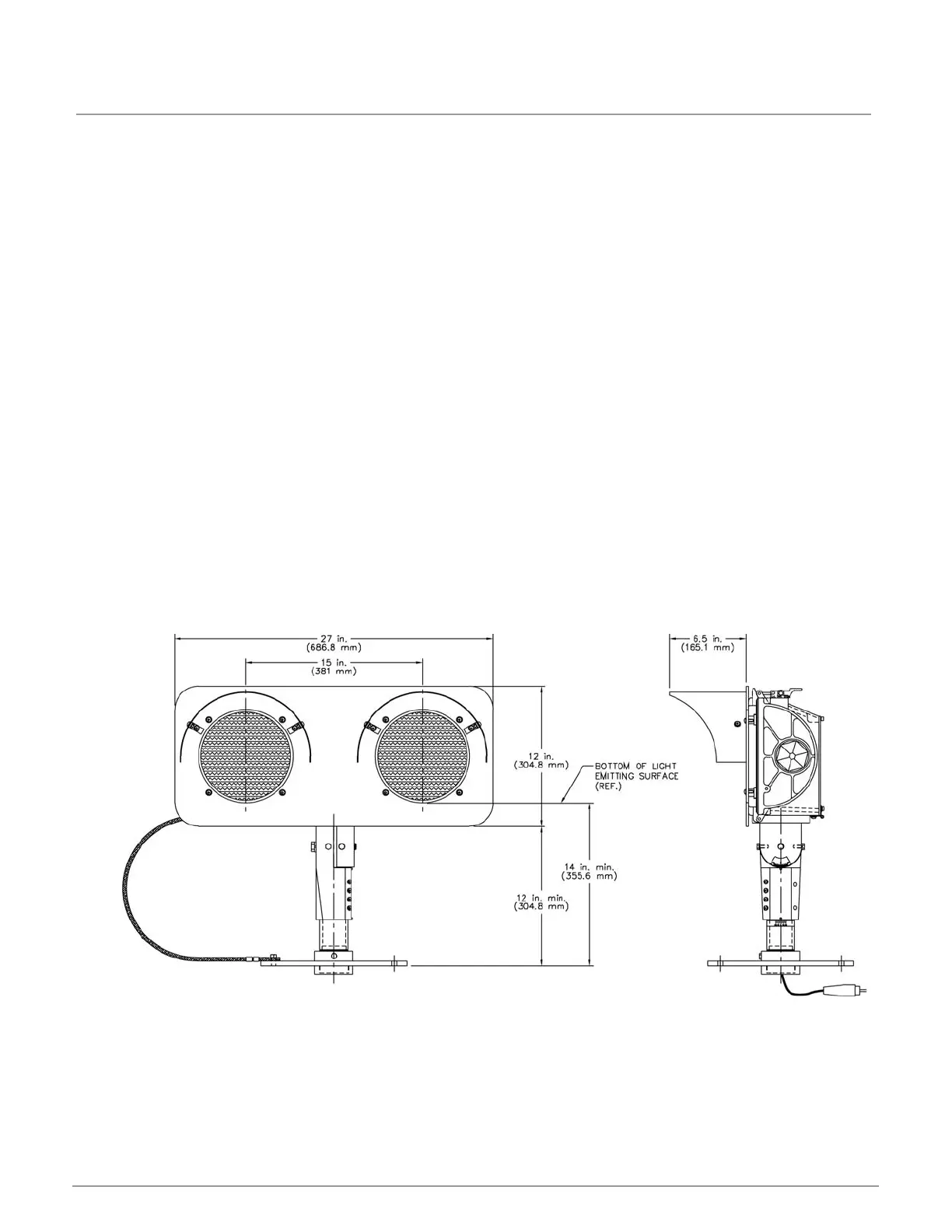

2.2.6 Dimensions Figure 1: L-804 Dimensions
