DIRECT LAMP ACCESS
(44A4744/41XX)
CURRENT DRIVEN, UNMONITORED
CURRENT DRIVEN, MONITORED
WHT
LAMP 1
BRN
LAMP 2
BLK
RED
ORG
GRN
RED
FUNCTION
INDICATES 45 FLASHES PER MINUTE
INDICATES ONE LAMP IS ON STEADY
INDICATES NORMALFLASH MODE
INDICATES 50 FLASHES PER MINUTE
J2 (1&2)
J3 (1&2)
J3 (2&3)
J2 (2&3)
JUMPER
(PROVIDED)
70A0557
L-823
2 PIN
(44A4744/12XX)
2 PIN
L-823
L-823
2 PIN
(NOT PROVIDED)
BRITE
2 PIN
L-823
L-804 RGL CURRENT DRIVEN
Tel: 614-861-1304
Columbus, Ohio 43230
977 Gahanna Parkway
Fax: 614-864-2069
97R0001
ADB A Siemens Company
Information contained on this drawing is to be used expressly in accord
is strictly prohibited except as ADB-ALNACO may otherwise agree in writing.
with purpose for which it was submitted. Any disclosure of this information
Copyright
1997
c
DRAWING NUMBER:
43A2364
DRAWN BY:
DESCRIPTION
PROD. RELEASE
ASSOCIATED DRAWINGS:
LEVEL
.
REV
A
B
NUMBER
-----
ECO
BWH
REVISION
SEE ECO
00099

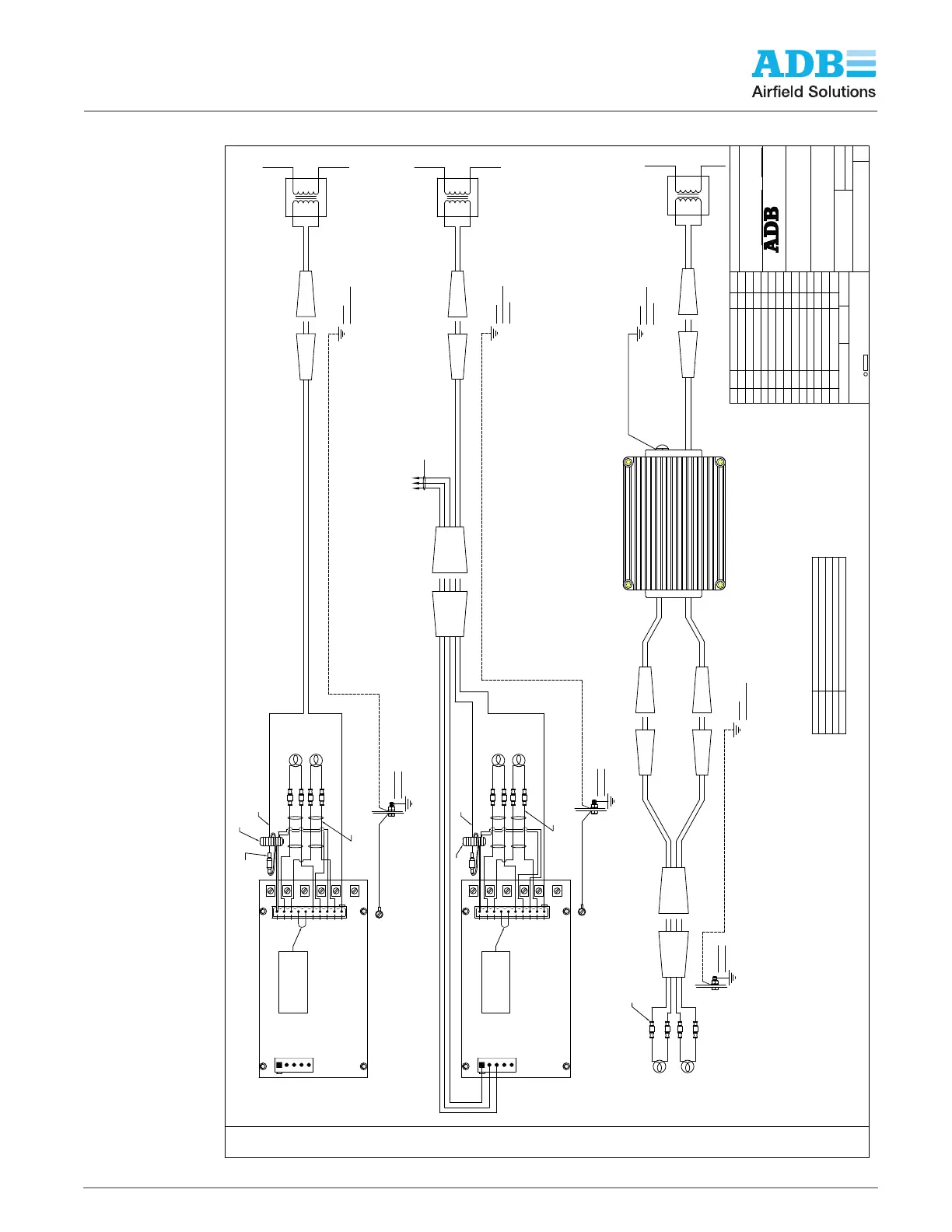

WIRING SCHEMATIC
DRAWING TITLE:
PROJECT NUMBER:
DRAWN DATE:
DRAWN
25NOV98
BY
BWH
DATE
REV
25NOV98
BWH
25NOV98
APPRVD BY:
authorized copy.
PROJECT TITLE:
A Siemens Company
1 = 1
H
REV.
1 OF 1
SHEET NUMBER:
SCALE:
DATE:
L-830 (NOT PROVIDED)
CONTROLLED COPY
part is prohibited. Initialed in RED ink below indicates
Unauthorized duplication of this document in whole or
L-823
2 PIN
L-823
2 PIN
L-830
(PROVIDED)
CONNECTIONS
OR (COMM)
(44A4744/11XX)
WH
BK
OR
RD
GN
WH
BK
OR
GN
RD
44A5864
GN (NC)
RD (NO)
MONITOR
WHT
BLK
LAMP 1
LAMP 2
L-830 (NOT PROVIDED)
L-830 (NOT PROVIDED)
L-823L-823
2 PIN
2 PIN
L-830
L-823L-823
2 PIN
WH
BK
2 PIN
L-830
C
00735
SEE ECO (NEW PCB)
BE
04JAN02
J2
NO
MON
NC
L2
PC
T1
LA2
LB1
LA1
LB2
T2
P5
T1
LA1
LB2
LA2
AUX
AUX
LB1
T2
35A0555 (TY-WRAP TO CORDSET
AND PCB LEADS)
NOTES: 1) WIRE LEADS CAN ALSO BE CONNECTED
TO CORRESPONDING SCREW TERMINALS -
PC
L2
MON
NC
NO
J2
WHT
P5
T2
AUX
LB1
T2
AUX
LA2
LB1
LB2
LA2
T1
LB2
LA1
LA1
T1
LAMP 1
BLK
LAMP 2
USE RING TERM. 70A0027 ON LAMP AND
POWER CONNECTIONS.
NOTE #2 (4 PLC.S)
44A6340 PCB-TO-LAMPHARNESS (2 PLC.S)
D
00735
ADDED NOTE #2
BE
07JAN02
E
00735
CORRECTED NOTE
BE
08JAN02
CORDSET LEAD PASSES
THRU TRANSFORMER
(ATTACH TERM.)
CORDSET LEAD PASSES
THRU TRANSFORMER
(ATTACH TERM. 70A0329)
35A0555 (TY-WRAP TO CORDSET & PCB LEADS)
70A0329
ADD 16 AWG
JUMPER WIRE
(89A0183/10)
(89A0183/10)
ADD 16 AWG
JUMPER WIRE
F
01123
SEE ECO
BE
06AUG03
44A6340 PCB-TO-LAMPHARNESS (2 PLC.S)
G
01242
SEE ECO
BE
17JUN05
BLK
RED
WHT
BRN
(PCB 44A6122/C)
(PCB 44A6122/C)
EARTH
CONNECTION
16 GA, GRN/YEL
89A0163/6
(CONTRACTOR WIRED)
(CONTRACTOR WIRED)
EARTH
CONNECTION
IN CAN.
(CONTRACTOR WIRED)
(CONTRACTOR WIRED)
EARTH
CONNECTION
H
02606
ADDED GND WIRES
BE
15APR10
EARTH
CONNECTION
IN CAN.
(CONTRACTOR
WIRED)
EXT. BOX
GND LUG
DOOR TETHER
CONNECTION
16 GA, GRN/YEL
89A0163/6
(CONTRACTOR WIRED)
EXT. BOX
GND LUG
DOOR TETHER
CONNECTION
EXT. BOX
GND LUG
