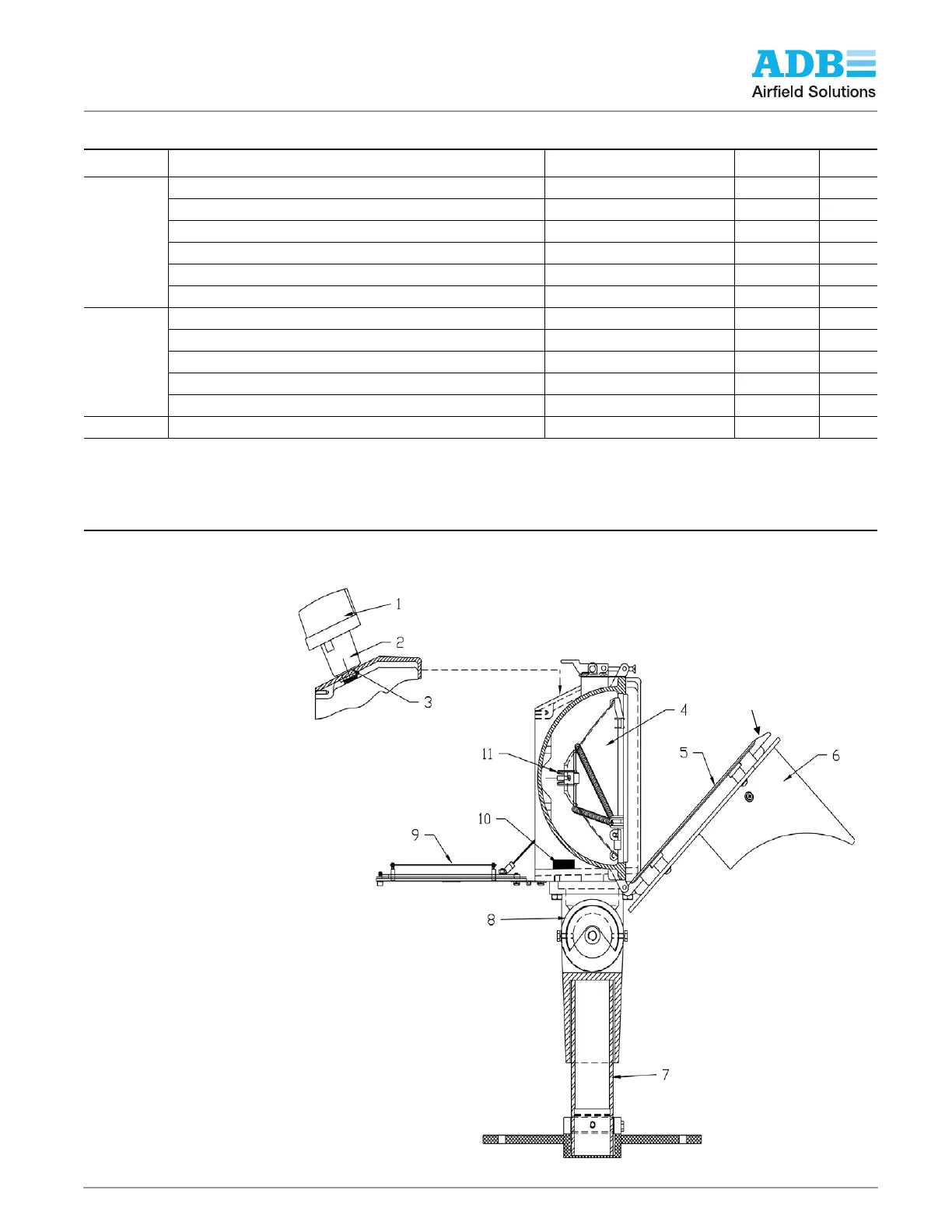

Figure 13: L-804 Runway Guard Light
Item Description Part Number Quantity Note
NS
Wiring harness
Wiring harness, current driven with monitor 44A5864 1
Wiring harness, voltage driven with monitor (5-pin) 44A5864-1 1
Wiring harness, voltage driven without monitor 44A5897 1
Wiring harness, Direct Lamp Access 44A4749 1 A,B
Wiring harness, Direct Lamp Access 70A0557 1 C
NS
Cordset
Cordset, current/voltage driven without monitor 73A0009-31 1
Cordset, current/voltage driven with monitor 73A0124-8 1
Cordset, Direct Lamp Access (4-pin) 70A0557 1 A,B
Cordset, Direct Lamp Access (L-823 4-pin male) 70A0558 1 C
NS L-867B light base plate 1832RGL 1
NOTE A: Wiring harness and cordset to be used on RGLs manufactured prior to November 1, 2000.
NOTE B: Parts 44A4749 and 70A0427 are not interchangeable with individual parts 70A0557 and 70A0558.
NOTE C: Wiring harness and cordset to be used on RGLs manufactured after November 1, 2000.
NS: Not Shown. The L-867B heavy duty light base plate must be ordered separately.
