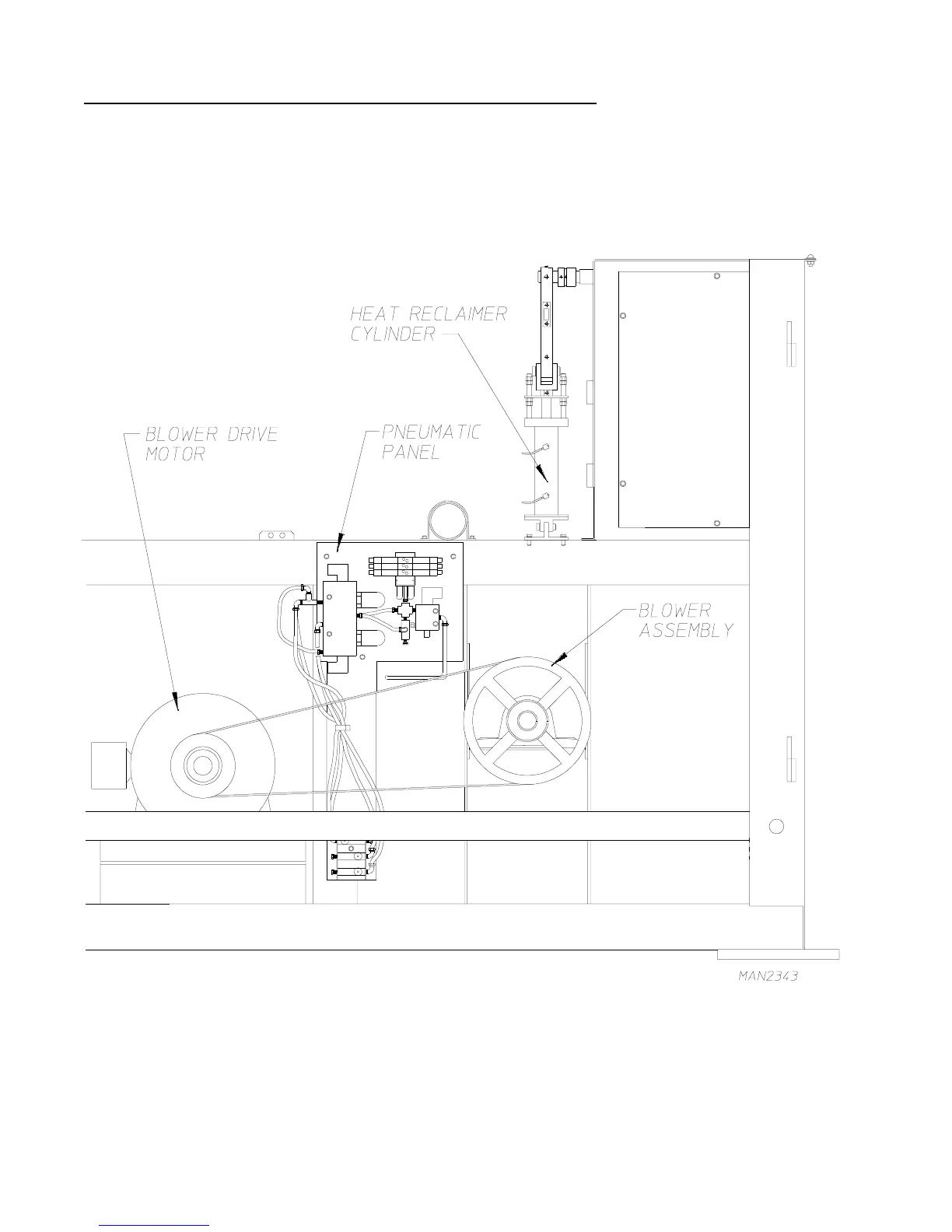

B. MAIN AIR BLOWER/HEAT RECLAIMER SYSTEM
The fan which moves the exhaust air through the dryer is a 22-inch diameter, squirrel cage fan that is driven at
1,100 rpm by a 25 HP motor. This fan moves a maximum of 13,000 cfm air through the dryer.
