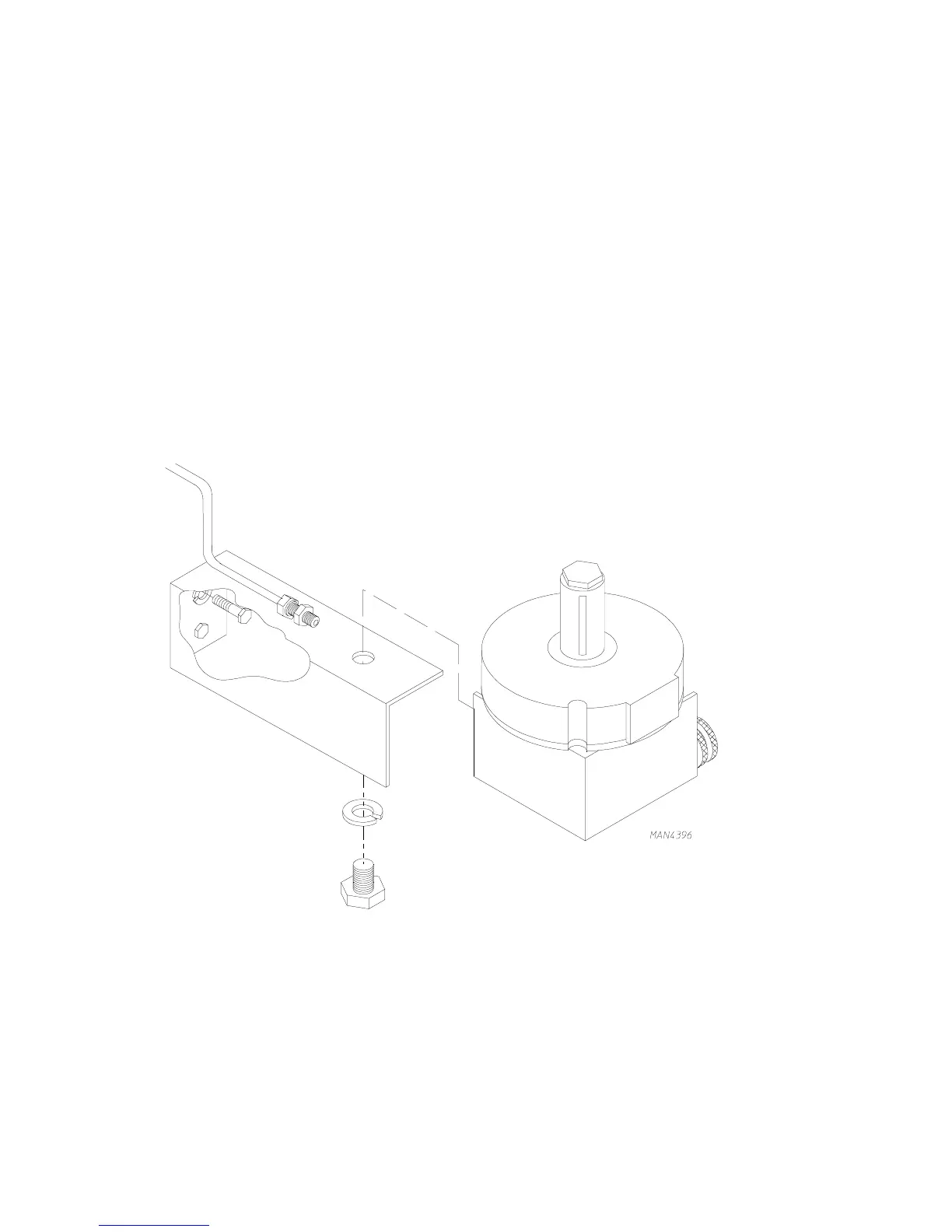

c. Lint Chamber Air Switch Replacement
1) Discontinue electrical service to the dryer.
2) Remove the 1/4" x 1/8" M.P.T. straight connector.
3) Remove the 5/16-18 x 3/4" tap bolt, as well as the 5/16" lock washer.
4) Mark and identify the wires that will be removed for proper reinstallation.
5) Remove the cord grip from the lint chamber air switch.
6) To install new lint chamber air switch, reverse Step #5 thru Step #2.
7) Reestablish electrical service to the dryer.
