SECTION 3: XLR input Amps
For consistency, we suggest you use channels A and B (left most 5-pin
XLR) for Front Left and Right , and use channels C and D (right most 5-pin XLR)
for Rear Left and Right .
The GFA-4304, GFA-4404 and the GFA-4702 all use balanced inputs
terminated with professional 5-pin XLR connectors. Each 5-pin XLR connects
two channels (Left and Right) of signal, plus a shield to the amplifier. Hookup is
straight-forward, but you must select the correct GFY adapter. The following
diagrams (Fig. 5), are a listing of all the adapters available through ADCOM for
integrating any system with ADCOM car audio amplifiers and interfaces. It i$
vital to note the APPLICATION description! Specific adapters MUST
be used for specific applications!

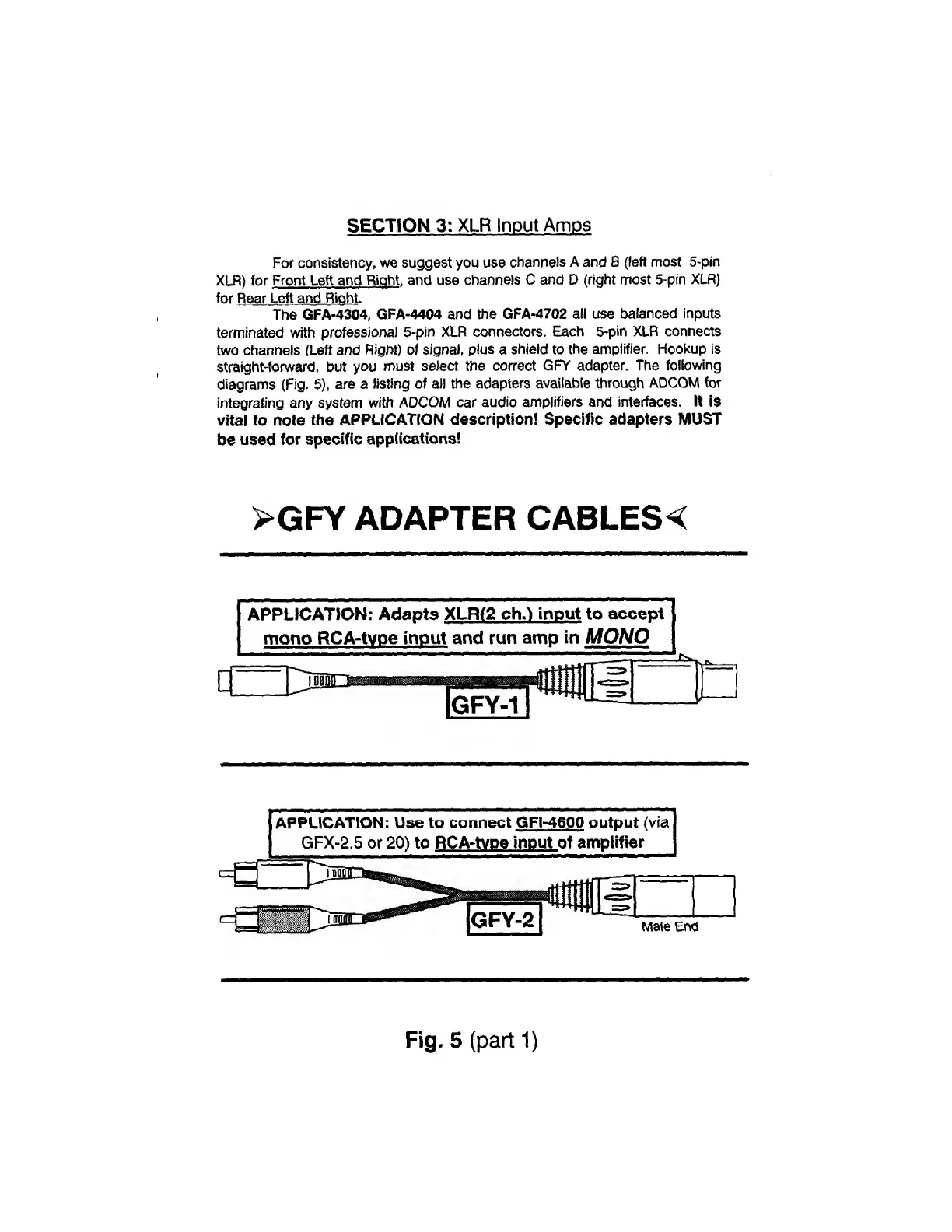

>GFY ADAPTER CABLES^
Fig. 5 (part 1)
