Adcom GFA-4302 User Manual

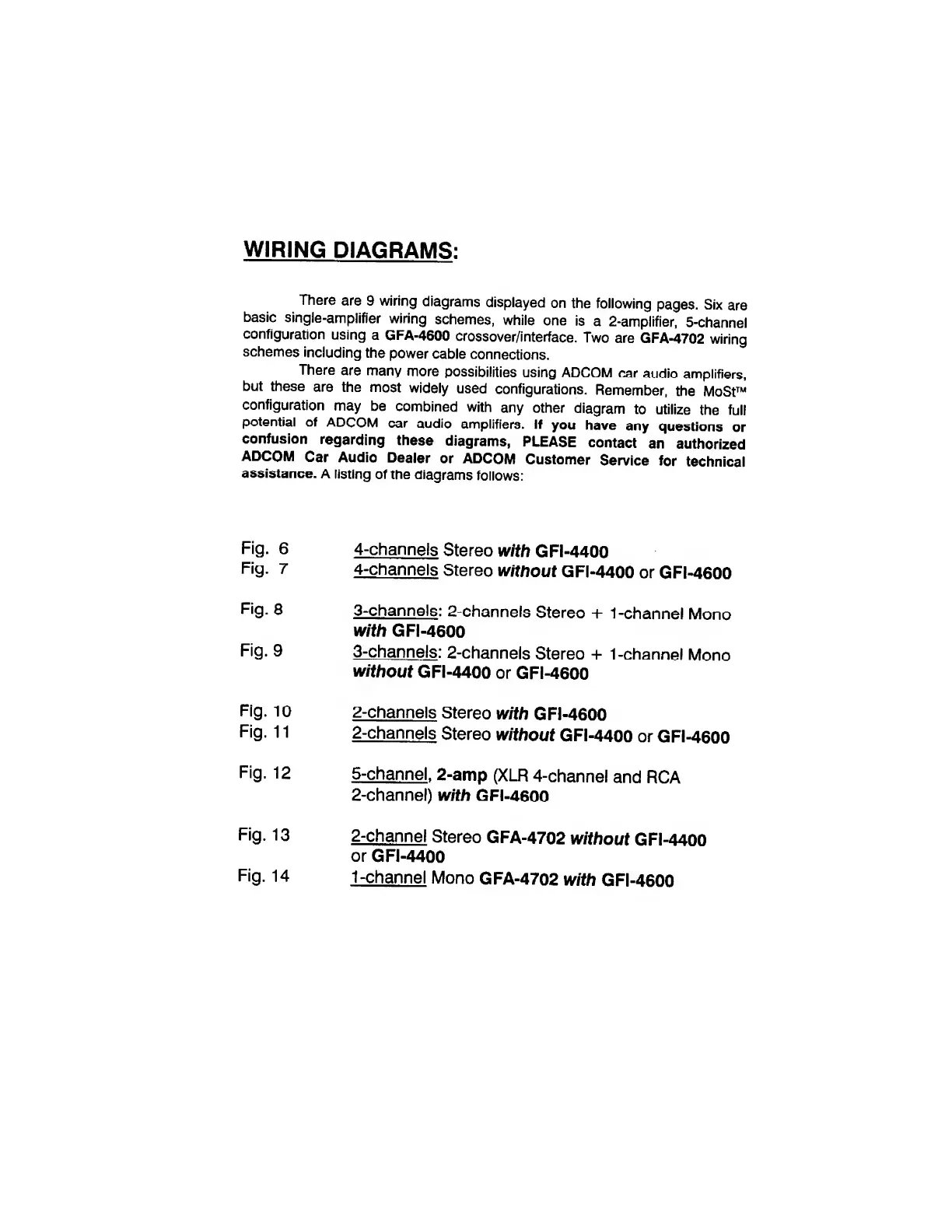

WIRING DIAGRAMS:
There are 9 wiring diagrams displayed on the following pages. Six are
basic single-amplifier wiring schemes, while one is a 2-amplifier, 5-channel
configuration using a GFA-4600 crossover/interface. Two are GFA-4702 wiring
schemes including the power cable connections.
There are many more possibilities using ADCOM oar audio amplifiers,
but these are the most widely used configurations. Remember, the MoSt ™
configuration may be combined with any other diagram to utilize the full
potential of ADCOM car audio amplifiers. If you have any questions or
confusion regarding these diagrams, PLEASE contact an authorized
ADCOM Car Audio Dealer or ADCOM Customer Service for technical
assistance. A listing of the diagrams follows:
Fig. 6
Fig. 7
4-channels Stereo with GFl-4400
4-channels Stereo without GFl-4400 nr GFi-46nn
Fig-8
Fig. 9
3-channels: 2-channels Stereo + l-ehann#=>l Mnnn
with G FI-4600
3-channels: 2-channels Stereo + 1 - channel Mono
without GFl-4400 or GFI-4600
Fig. 10
Fig. 11
2-channels Stereo with GFI-4600
2-channels Stereo without GFl-4400 nr GFi.46on
Fig. 12
5-channel, 2-amp fXLR 4-channel anrl RCA
2-channel) with GFI-4600
Fig. 13
Fig. 14
2-channel Stereo GFA-4702 without GFl-44nn
or GFl-4400
1-channel Mono GFA-4702 with GFi.46nn
