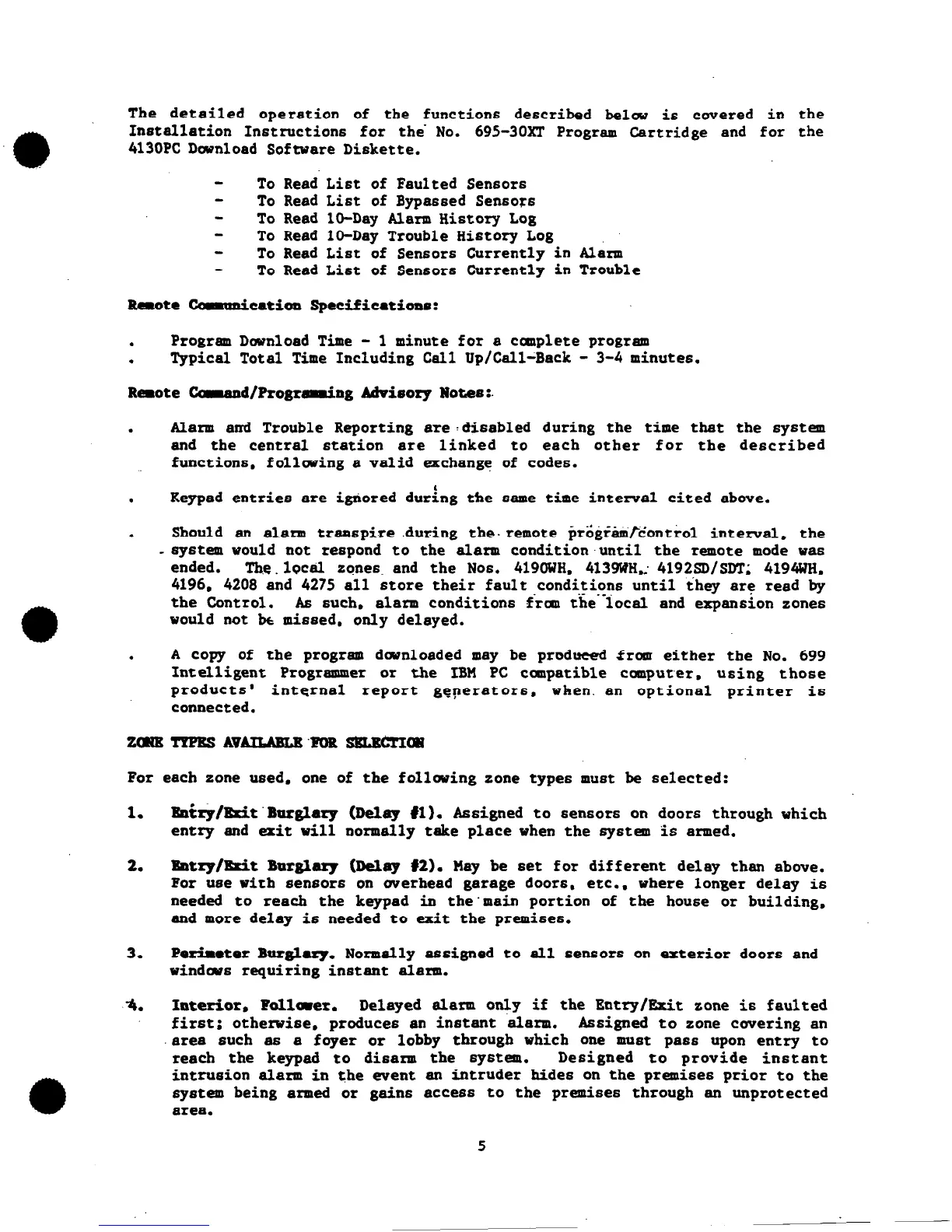

The detailed operation of the functions described belw is covered in the
Installation Instructions
for
the' No. 695-3OxT Program Cartridge and for the
4130X Dwnload Software Diskette.
To Read List of Faulted Sensors
To Read List of Bypassed Senso:s
To Read lO-Day Alarm History Log
To Read IO-Day Trouble History Log
To Read List of Sensors Currently in Alarm
To Read List of- Sensors Currently in Trouble
&mote coarmication
Specificatioao:
. Program Dwnload Time -
1 minute for a complete program
.
Typical Total Time Including Call Up/Call-Back - 3-4 minutes.
Reote caraDd/ProRramiag Advisory Novas:.
.
Alarm and Trouble Reporting are :disabled during the time that the system
and the central station are linked to each other for the described
functions. follwing a valid exchange
of
codes.
. Keypad entries are ignored during
the
same time interval cited above.
.
Should an
alarm
transpire <during the- remote progi&ifcontrol internal. the
- system would not respond to the alarm condition-until the remote mode was
ended. The.local zones- and the Nos.
419OwH. 413QwH., 4192WsDT; 4194wH.
4196. 4208 and
4275
all store their fault.conditions until they are read by
the Control.
.- .-.
As such. alarm conditions from the local and expansion zones
would not b& missed. only delsyed.
. A copy
of
the program dwnloaded may be produced from either the No. 699
Intelligent Programmer or the IBM PC compatible computer, using those
products' internal report geperators.
when. an optional printer i6
connected.
For each zone used.
one
of the follwing zone types must be selected:
1.
Rnk$/Rzit'Burglary
(belay il). Assigned to sensors on doors through which
entry and exit will normally take place when the system is armed.
2.
Bntxy/Bxit
BurRlaxy
(Delay i2). May be set for different delay than above.
For use with sensors on overhead garage doors. etc.. where longer delay i6
needed to reach the keypad in the 'main portion of the house or building,
and more delay is needed to exit the premises.
3. Perbater Burglary.
Normally assigned to all sensors
on
exterior doors and
windws requiring instant alarm.
--4.
Interior, Follwer.
Delayed alaim only if the Entry/tiit zone is faulted
first; otherwise. produce6
an
instant alarm.
Assigned to zone cwering an
.area such as a foyer or lobby through which one must pass upon entry to
reach the keypad to disarm the system.
Designed to provide instant
intrusion alarm in the event an intruder hides on the premises prior to the
system being armed or gains access to the premises through an unprotected
area.
5
