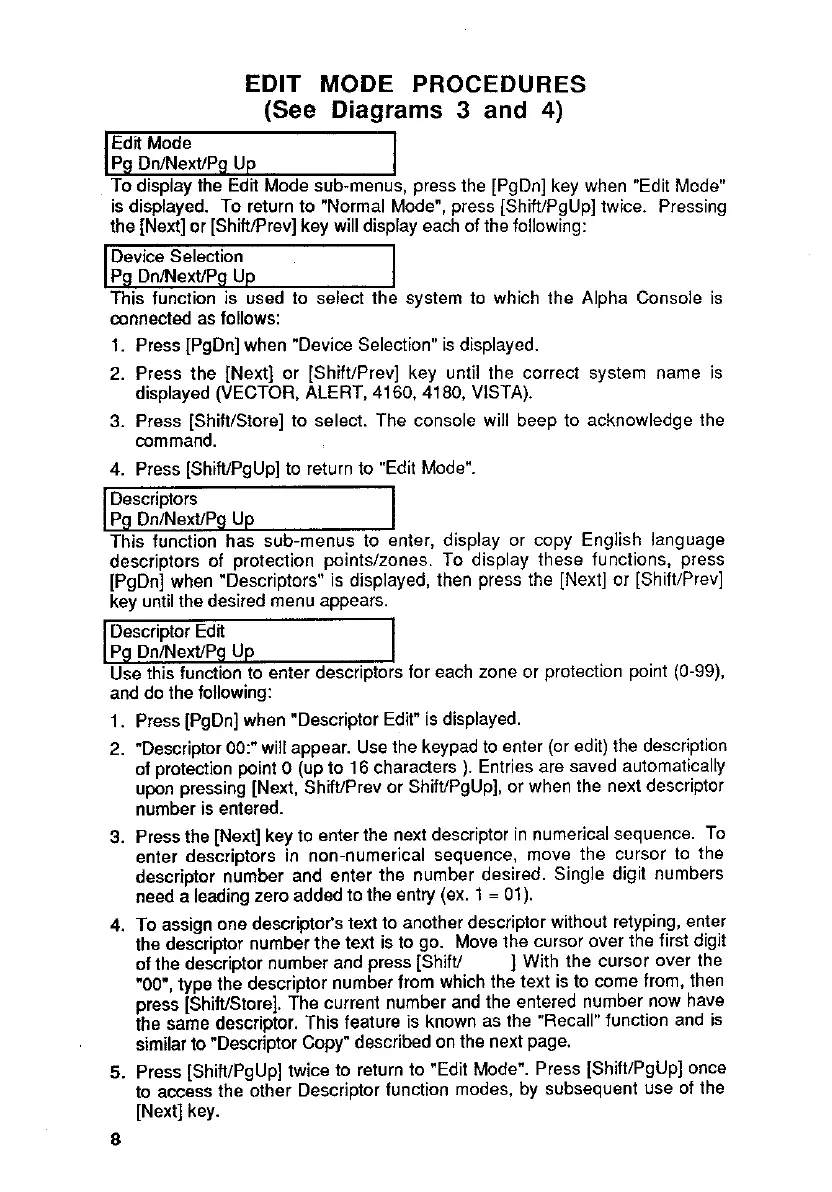

EDIT MODE PROCEDURES
(See Diagrams 3 and 4)
Edfi Mode
Pg Dn~exVPg Up
TO display the Edit Mode sub-menus, press the [PgDn] key when “Edit Mode”
is displayed. Toreturnto”Normal Mode”, press [Shift/PgUp] twice. Pressing
the [Nefl] or [ShiftFrev] key will display each of the following:
Device Seletiion
Pg Dn~exVPg Up
This function is used to select the svstem to which the Al~ha Console is
mnneti~ as follows:
1. Press [PgDn] when ”Devi@Selection’’ isdisplayed.
2. Press the [Next] or [Shitt/Prev] key until the corred system name is
displayed (VECTOR, ALERT, 4160,4180, VISTA).
3. Press [Shift/Store] to select. The console will beep to acknowledge the
mmmand.
4. Press [ShiWgUp] toreturn to’’Edit Mode”.
Descriptors
Pg Dn/NeWPg Up
This function has sub-menus to enter, display or COPY English language
descflptors of protection pintslzones. TO display these functions, press
[PgDn] when “Descriptors” is displayed, then press the [Next] or [Shift/Prev]
kev until the desired menu appears.
Descriptor Edfi
Pg Dn~eWPg Up
Use this fundion to enter descriptors for each zone or protection point (O-99),
and do the following:
1. Press [PgDn] when ”Descfiptor Edit” isdisplayed.
2. "Descriptor OO:"will appear. Usethekeypad toenter (oredit) thedesctiption
ofprotection pint O(upto16charaders). Entties are saved automatically
upnpressing[Nefi, ShWPrev or ShifffPgUp], or when the next descriptor
number is entered.
3. Press the[Next] keytoenter thenext descriptor innumetical sequence. TO
enter descriptors in non-numetical sequence, move the cursor to the
descriptor number and enter the number desired. Single digit numbers
needale~ing zeroadded totheentv(ex.1 =01).
4. Toassign onedescriptoVs texttoanother descriptor without retyping, enter
thedesctiptor number thetext istogo. Movethe cursor overthe first digit
of the descriptor number and press [ShifV
] Wth the cursor over the
“00”, type the descriptor number from which the text is to come from, then
press [ShiWStore], The current number and the entered number now have
thesame descflptor. This feature isknown asthe''Recail'' function and is
similar to “Descriptor COPY”desctibed on the next page.
5. Press [Shiff/PgUp] twice toreturn to”Edt Mode”. Press [Shift/PgUp] once
to a=ess the other Descriptor funtiion modes, by subsequent use of the
[Next] key.
8
