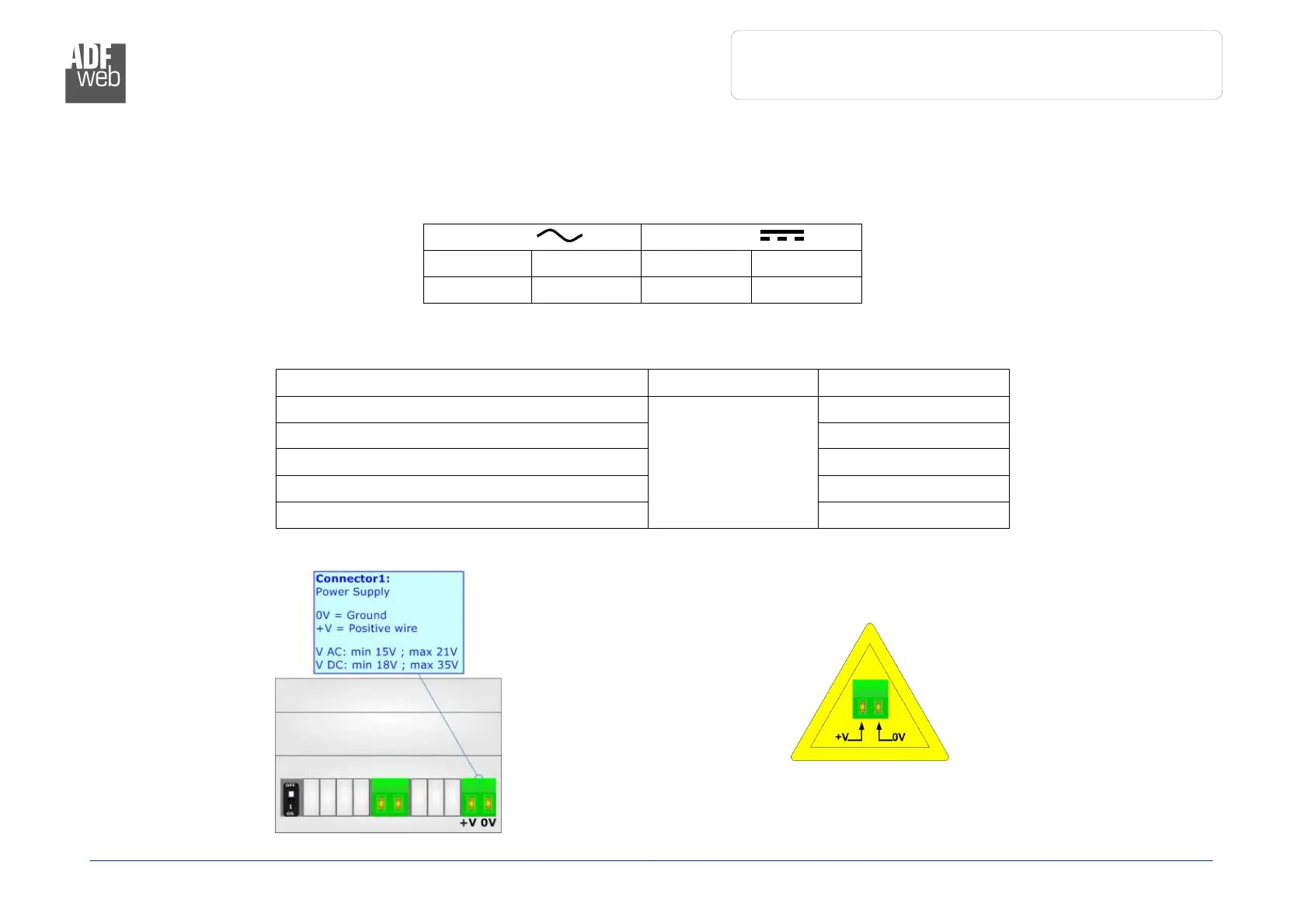

POWER SUPPLY:
The devices can be powered at 15…21V AC and 18…35V DC. The consumption depends to the code of the device. For more details see the
two tables below.
VAC VDC
Vmin Vmax Vmin Vmax
15V 21V 18V 35V
Consumption at 24V DC:
Device No Load [W/VA] Full Load [W/VA]*
HD67044-B2-20
3.5
4
HD67044-B2-40 5
HD67044-B2-80 8
HD67044-B2-160 14
HD67044-B2-250 30
* This value is with all the Slave M-Bus devices of the code (20, 40, 80, 160, 250) connected to the line
HD670
44
-
B
2
-
xxx
Caution: Not reverse the polarity power
