LEDS:

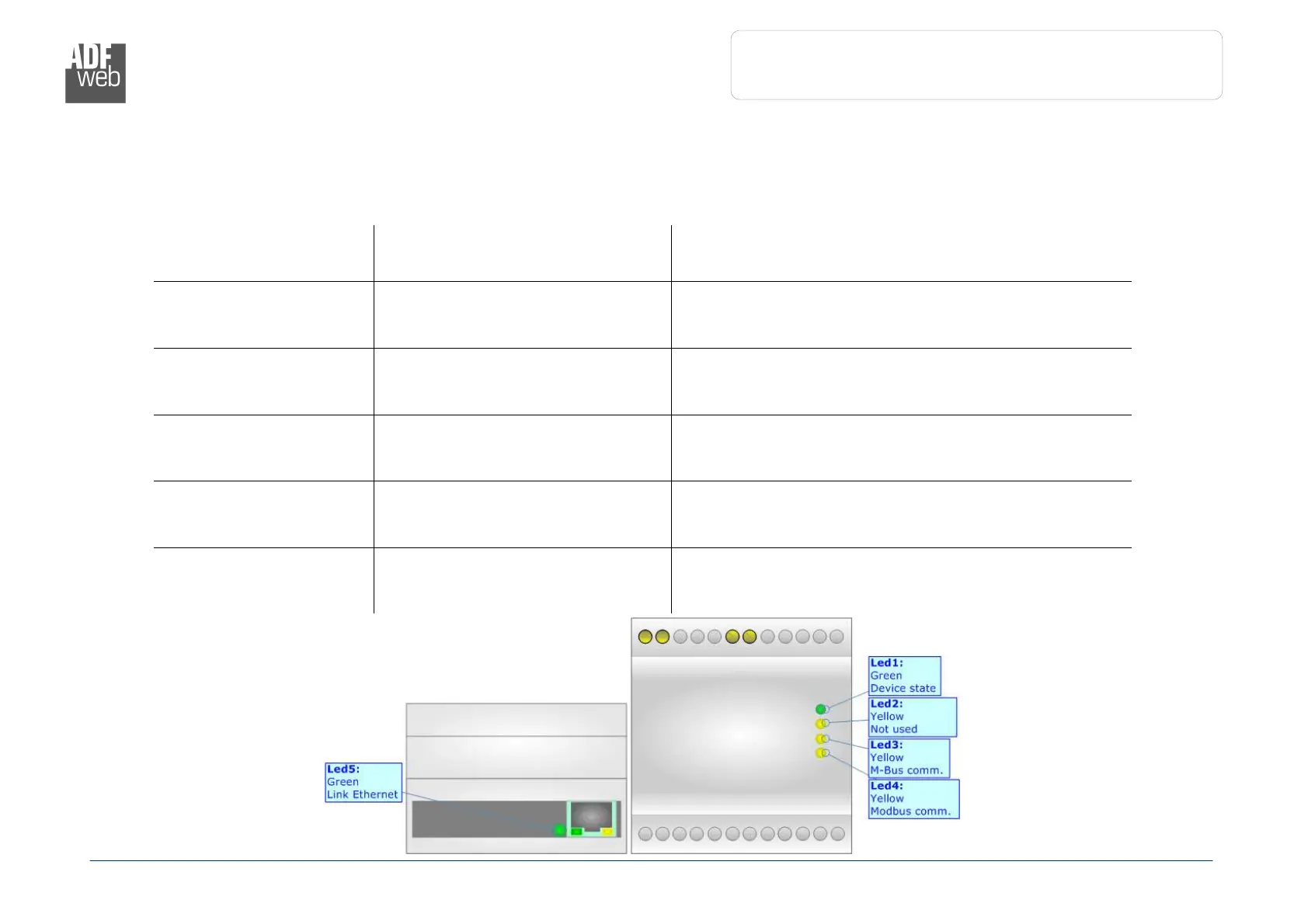

The device has got two LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz)
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Not used OFF
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: M-Bus Comm.
Blinks quickly when a reply to a M-
Bus request arrives
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Modbus Comm.
Changes state when receive a
correct Modbus request
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green)
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
