PROFIBUS:

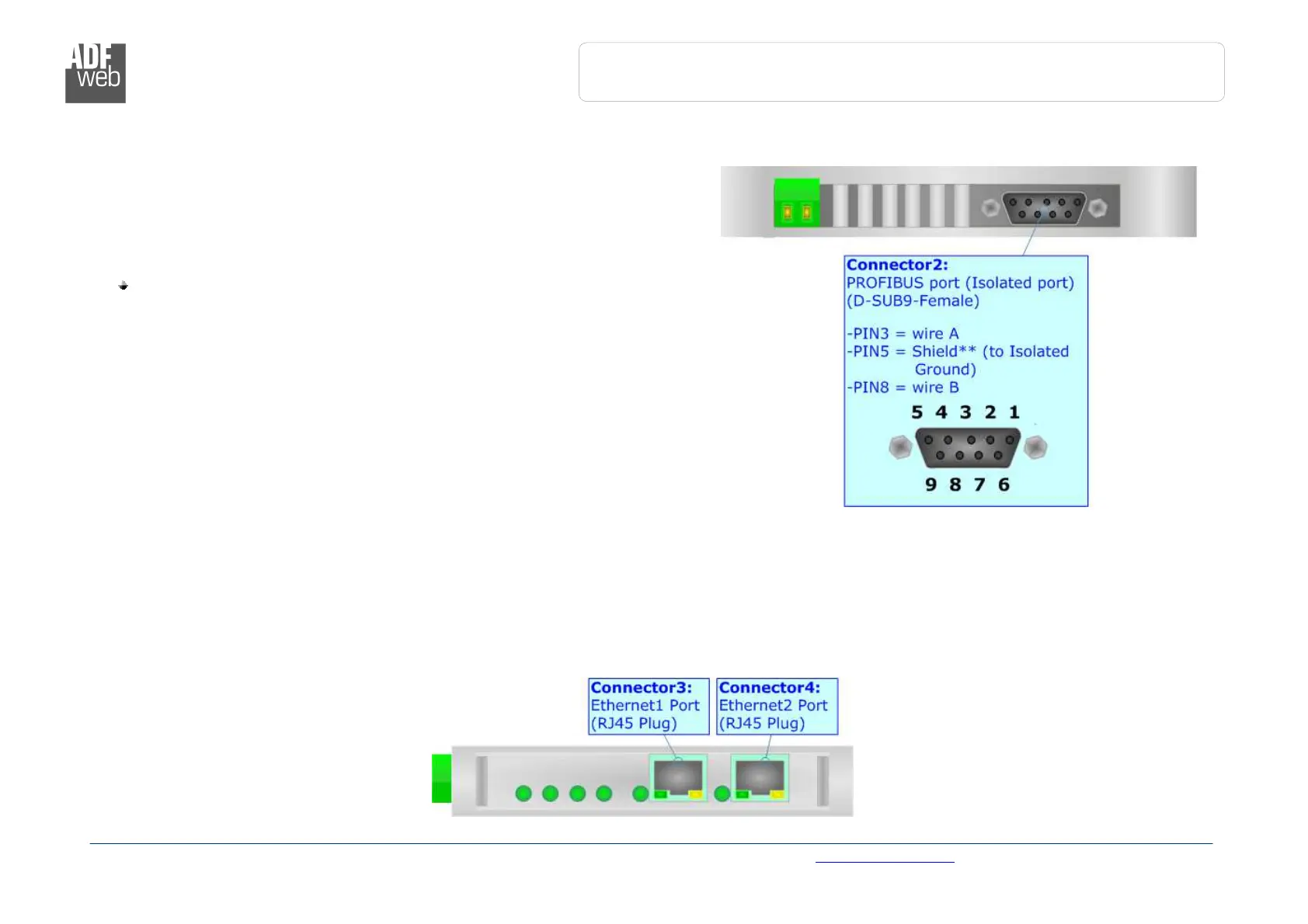

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50
PROFIBUS Cable.
ETHERNET:
The Ethernet connection must be made using Connector3 or Connector4 of HD67619-A1 with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended
the use of a cross cable.
