SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, PROFIBUS
and S7comm.
By Pressing the “Set Communication” button from the main window for SW67619 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “S7comm” are:
In the fields “IP ADDRESS” the IP address for S7comm side of the converter is
defined;
In the fields “SUBNET Mask” the SubNet Mask for S7comm side of the converter is
defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net.
The means of the fields for “PROFIBUS” are:
In the field “ID Device” the ID of PROFIBUS side of the converter is defined;
In the field “Baudrate” the data rate used for PROFIBUS communication is defined
(fixed to ‘Auto Baudrate’);
In the field "Number Byte IN" the number of Input bytes of PROFIBUS side of the
converter is defined;
In the field "Number Byte OUT" the number of Output bytes of PROFIBUS side of
the converter is defined.

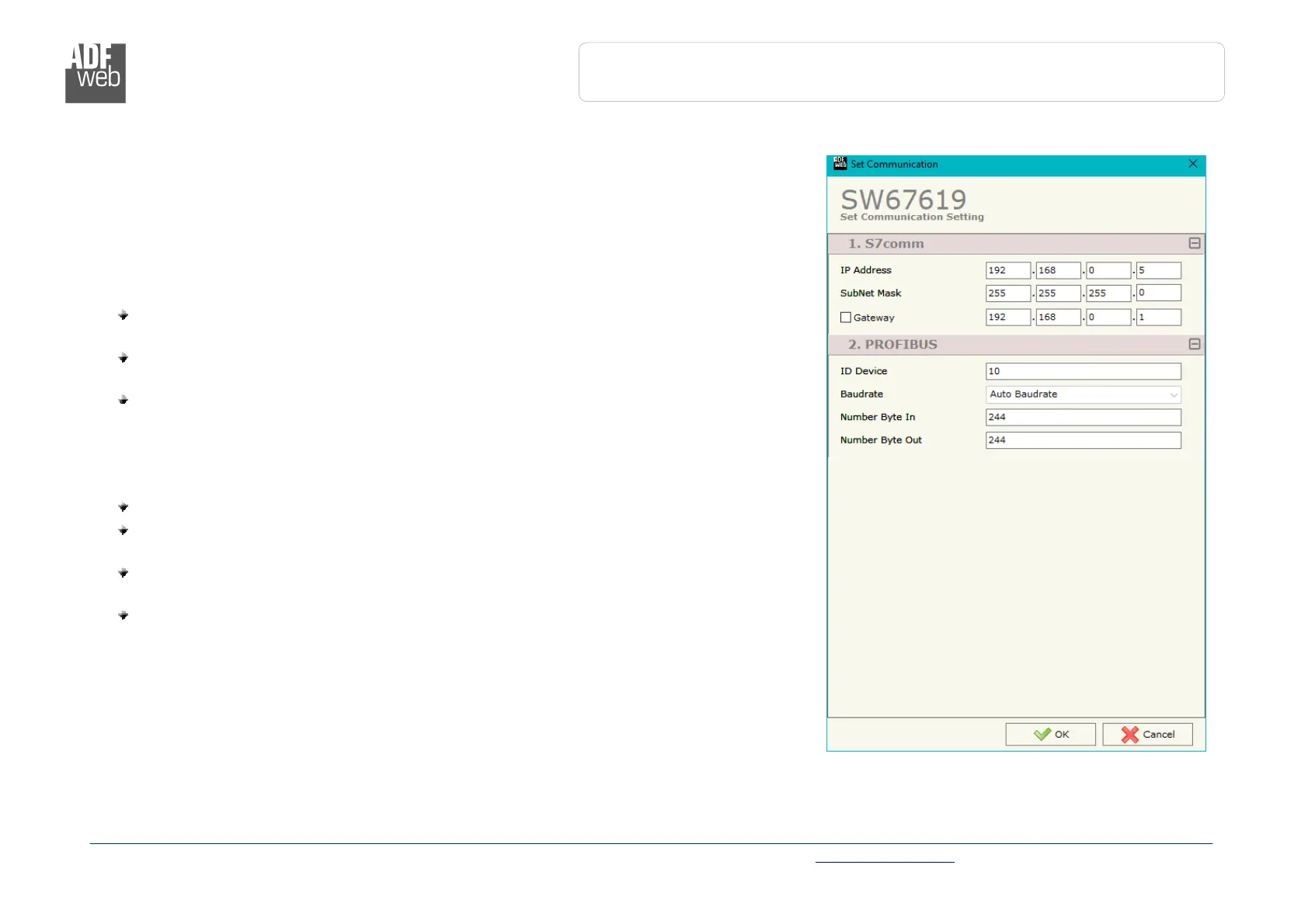

Figure 3: “Set Communication” window
