ADF 100 DUO - Decorative Frame Trim

17
D. DECORATIVE FRAME TRIM
Beading in metal or plastic cannot be used around the firebox opening due to heat. Metal expansion
could crack the Skamol enclosure board or Fibre cement sheet, and plastic will melt.
E
nsure there is an expansion gap between the heater box and the fascia material, of 4 or 5mm.
A

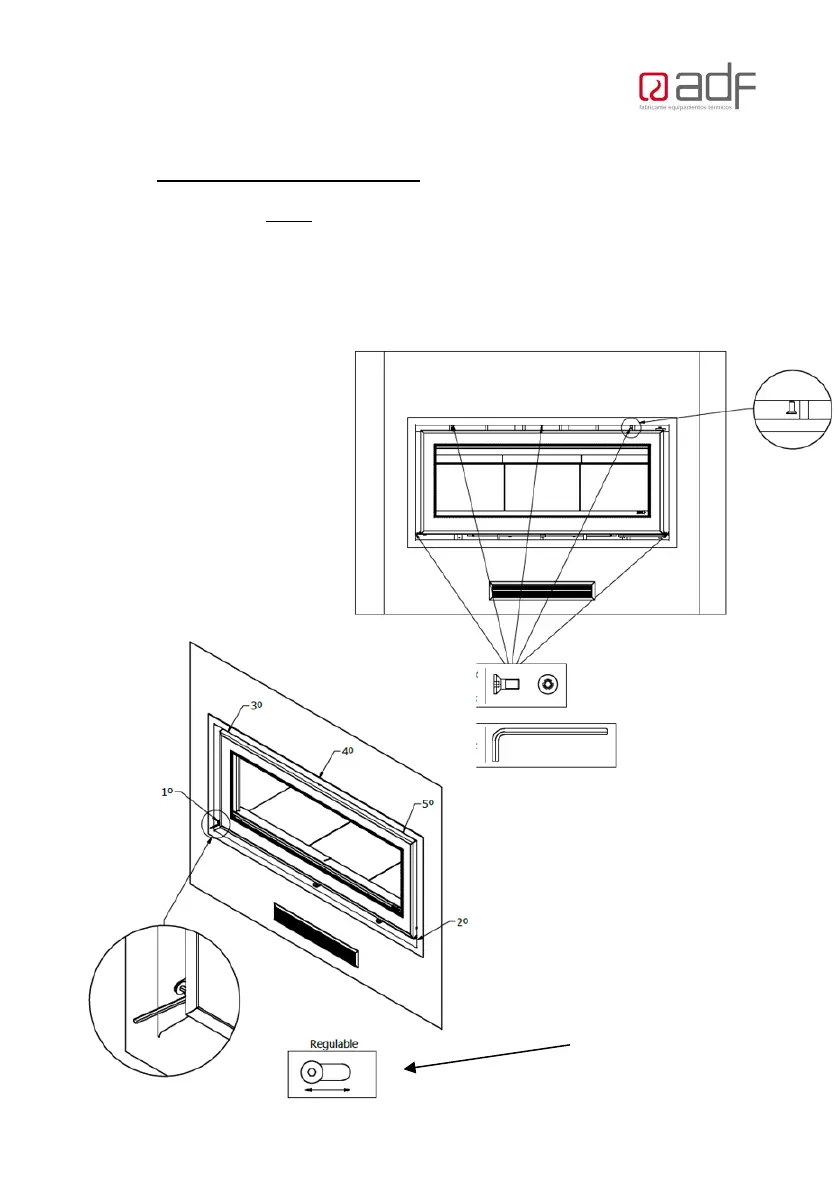

Frame can be fitted as follows to cover the gap between the heater and the appliance:
The frame has about
25mm of adjustment in
front of the heater.
