LENS INSTALLATION
The installation of the lens is a relatively simple process. Never-
theless, please exercise caution while performing this installation
in order to avoid damaging the lens or the fixture

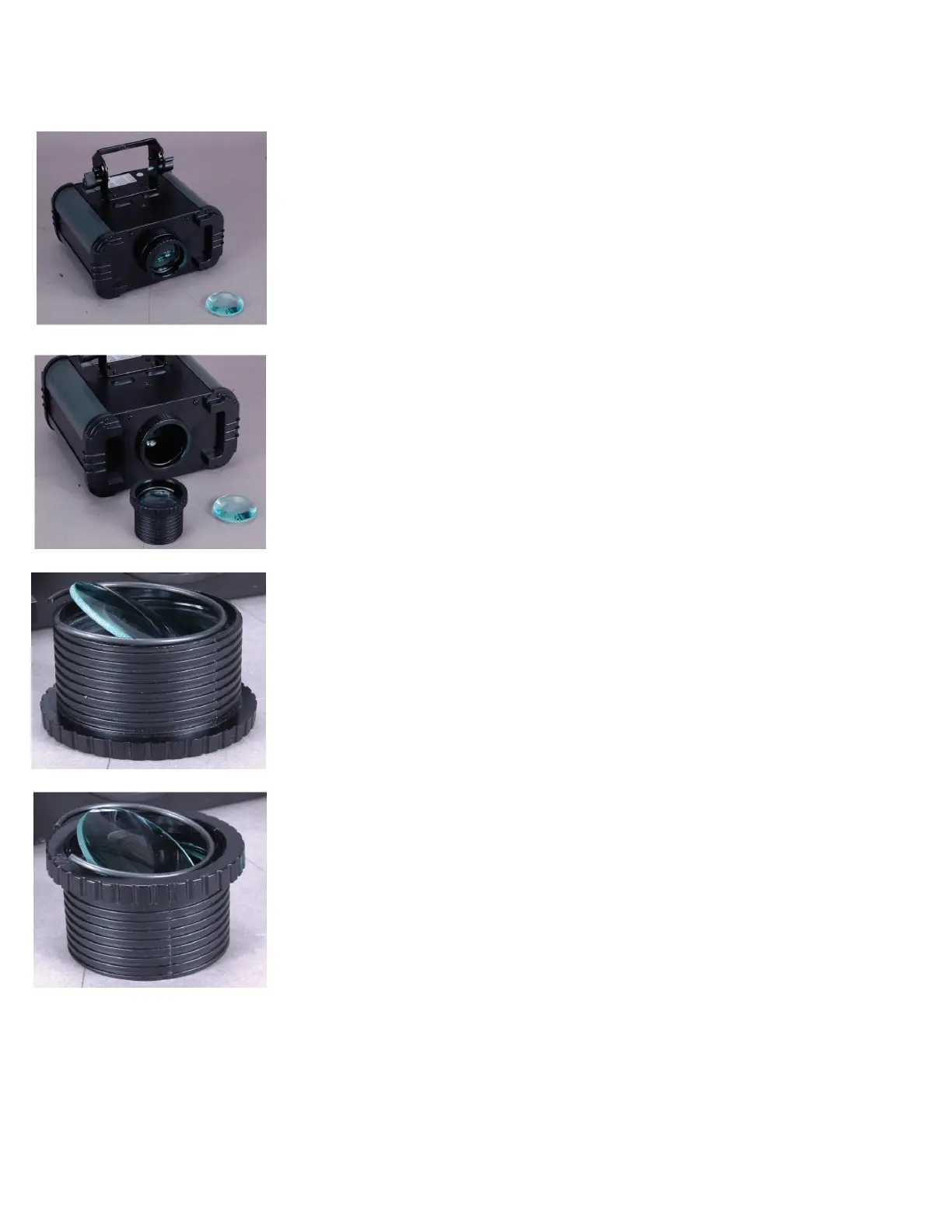

Unscrew and remove the focus barrel. Using your thumb, gently
push the lens outward until it pops out.
The image to the left illustrates how the focus barrel should look
after the lens has been popped out. Remove the lens and retainer
ring.
Flip the focus barrel over and insert the new lens. Very carefully
insert the retainer ring. Make sure retainer ring is in correctly,
ush against the lens. Finally, screw the focus barrel back into
the fixture.
