REAR PANEL

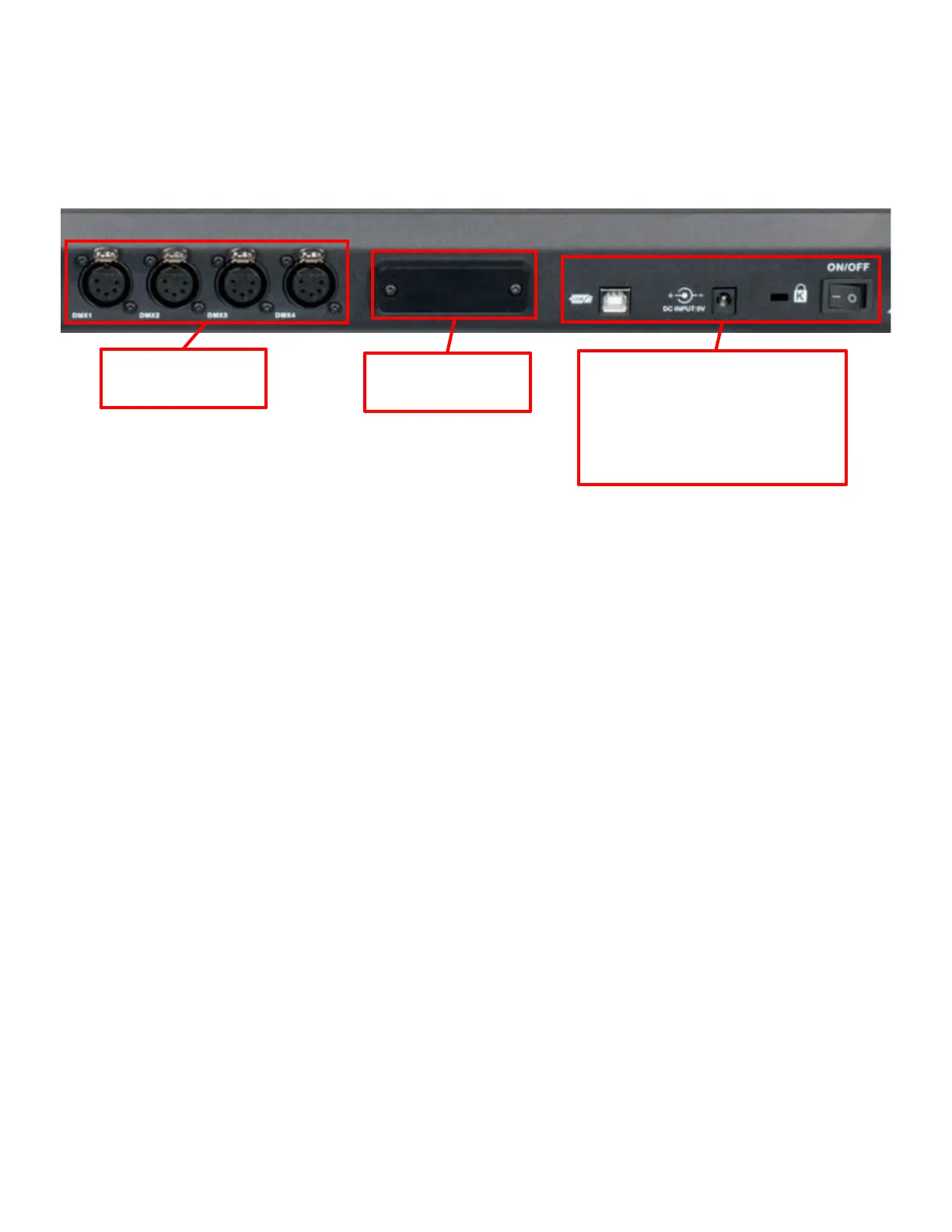

The picture below shows the connectors on the back of the Link controller. From left to right are four 5-
pin DMX512 outputs, one for each of four DMX512 universes. In the center is the dual band Wi-Fi
antenna encased in the small plastic enclosure. To the right of the antenna is the USB connector and
the DC power connector. On the far right is a Kensington slot and the power switch.
The Link comes with a regulated external power supply that is rated for 1A at 9VDC. Always use a
power supply with the equivalent rating and connector size and polarity.
Dual Band Wi-Fi
Antenna
4x Locking 5-pin
DMX Sockets
USB type B connector
DC Input 9V
Kensington slot for attaching a
security cable
Power ON/OFF switch
