MAGNETIC QUICK ALIGN
This unit features a magnetic quick align feature which allows multiple xtures to be connected se-
curely end-to-end. This feature is to be used exclusively when the xtures are positioned on a
at surface such as a oor or stage for uplighting. To use this feature, unscrew the thumb screws on
both ends of the xture and remove both brackets. Position the xtures on a at surface and connect
them end-to-end.

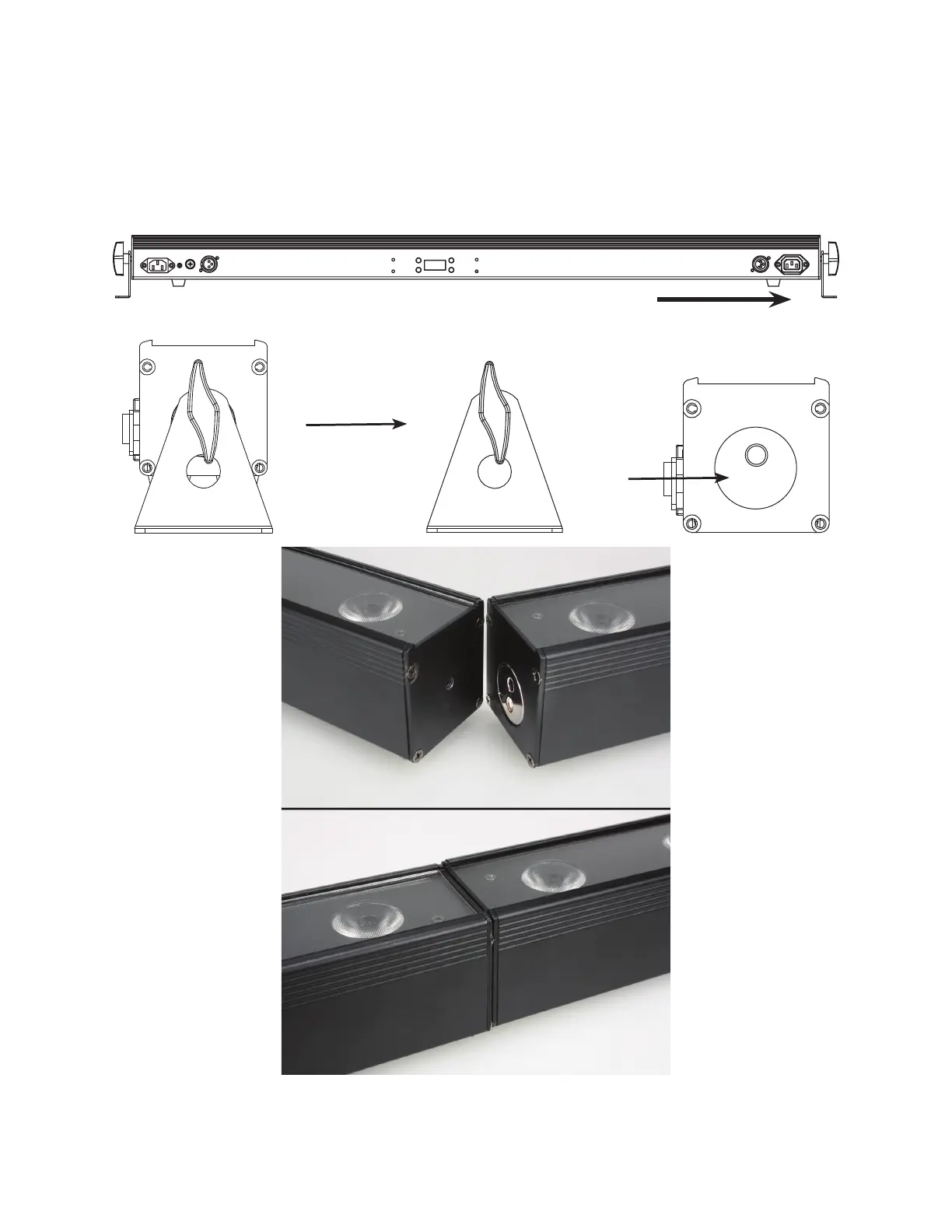

Magnet Side
Remove Bracket
Magnet
