Adkins LED MINI MOVING HEAD - 13 Channel Mode; DMX512 Connections; Connection Diagram and Termination

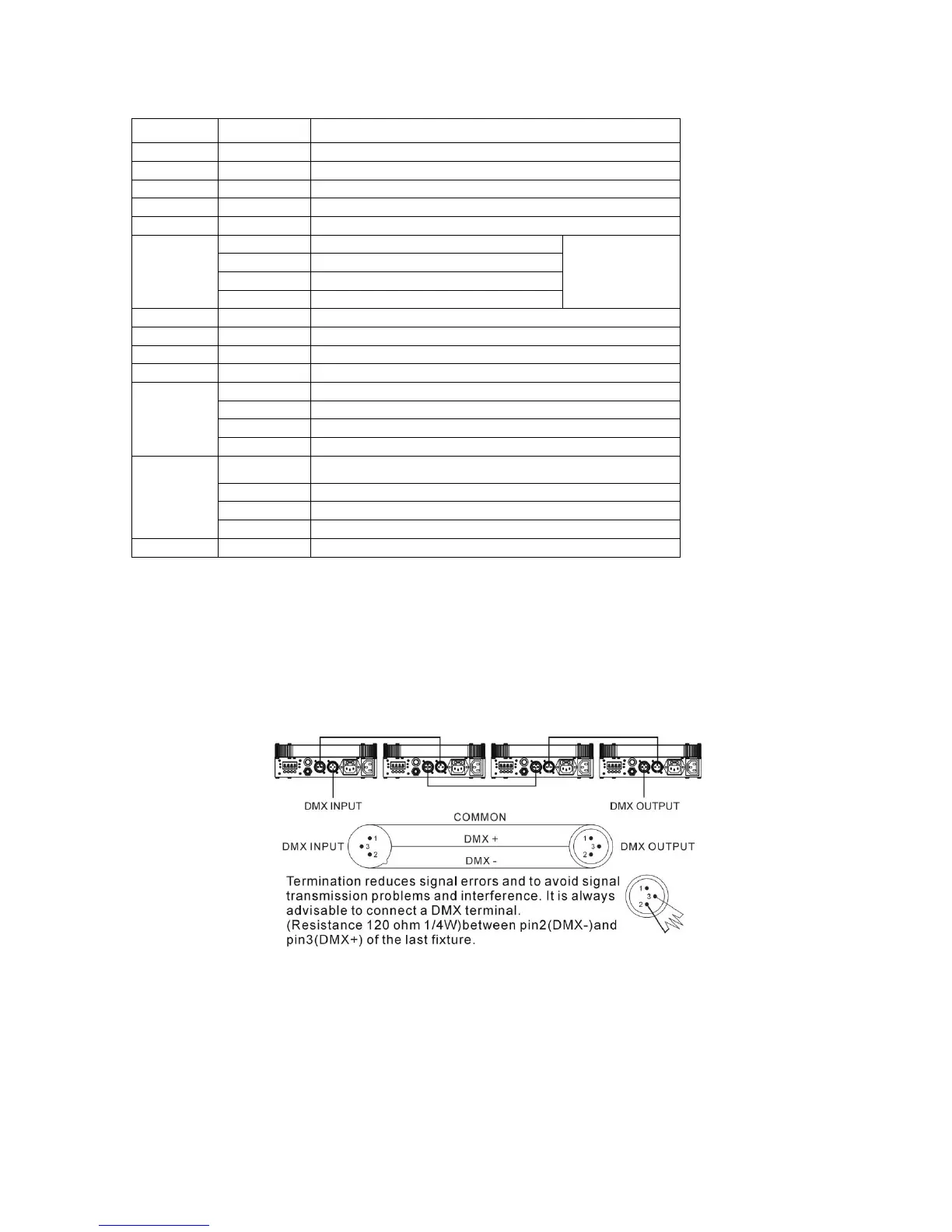

13 Channel Mode:
Channel
Value
Function
CH1
0-255
PAN
CH2
0-255
PAN FINE
CH3
0-255
TILT
CH4
0-255
TILT FINE
CH5
0-255
PAN / TILT speed
CH6
0-7
None
(CH11=0)
8-134
All light(RGBW) are dimmer 0-100%
135-239
Strobe
240-255
CH7~CH10 affectivity
CH7
0-255
Red dimmer 0-100%
CH8
0-255
Green dimmer 0-100%
CH9
0-255
Blue dimmer 0-100%
CH10
0-255
White dimmer 0-100%
CH11
0
CH7~CH10 dimmer mode
1-223
Colors
224-235
Color Fade
236-255
Color Jump change mode
CH12
0-2
None
3-84
Slow running in AUTO mode
85-169
Fast running in AUTO mode
170-255
Sound mode
CH13
0->255
Reset - Initialize
7. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
