3. PSR78 Overview
3.1 Switches & Fault Indicators
3.1.1 LEDs
The PSR78 has 3 LED’s located on inside of the repeater.

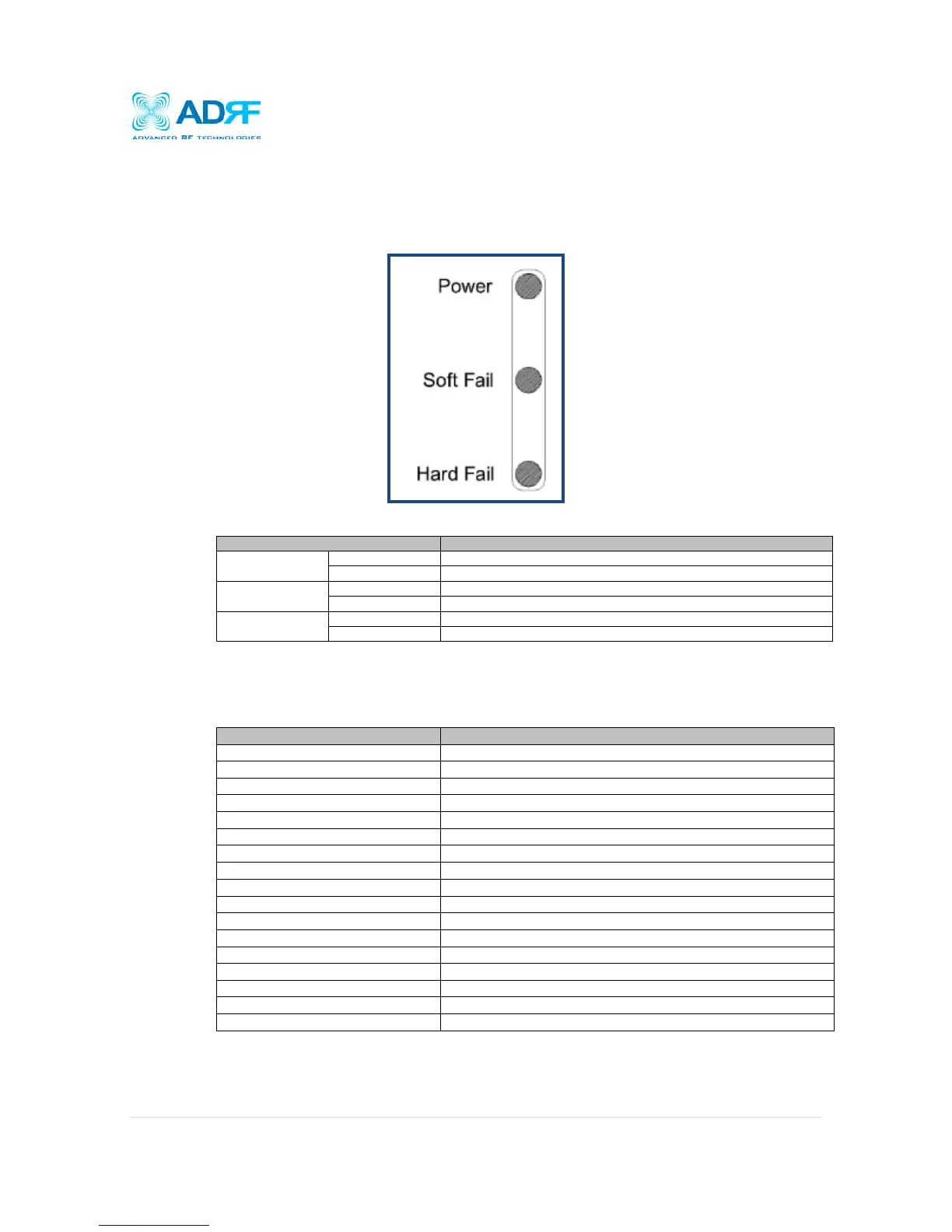

Figure 1: Module LED
PSR78
Specifications
Power
Solid Green
Module power is ON
OFF
Module is powered OFF
Soft Fail
Solid Yellow
Soft Fail alarm exist in the system
OFF
No Soft Fail alarm are present in the system
Hard Fail
Solid Red
Hard Fail alarm exist in the system
OFF
No Hard Fail alarms are present in the system
3.1.2 Message Board Alarms and Notification
Parameters
Remark
AC fail
Power supply out of range
DC fail
Power supply out of range
Communication failure
Internal Communication failure
RMF
Field replaceable module failure
RESET
Reset alarm
Heartbeat
Heartbeat
OSC
Oscillation detected
UL RSSI fail
Power at coverage port too high
UL PLL fail
UL Synthesizer failure
H/W fail
Hardware failure
S/W fail
Software failure
UL Emission fail
UL Out-of-band emissions out of spec
DL RSSI fail
Donor Power too high/low
ISO fail
Low isolation
DL PLL fail
DL Synthesizer failure
DL Spur fail
DL Spurious emissions out of spec
Interfere
Interferer power exceeded
