PSR78 Repeater
User Manual V0.1
Page | 8
4.2.10 Install, Modem, and Power Status
o Installation: Displays whether or not the installation routine has been run (Not Installed or Installed)
o Modem: Displays the status of the modem
 Disabled- No internal modem is present
 Not Connected- Internal modem is detected, but no connection to the network has been
established
 Connected- Internal modem is detected and a connection to the network has been established
o Power: Displays the power source that is currently being used

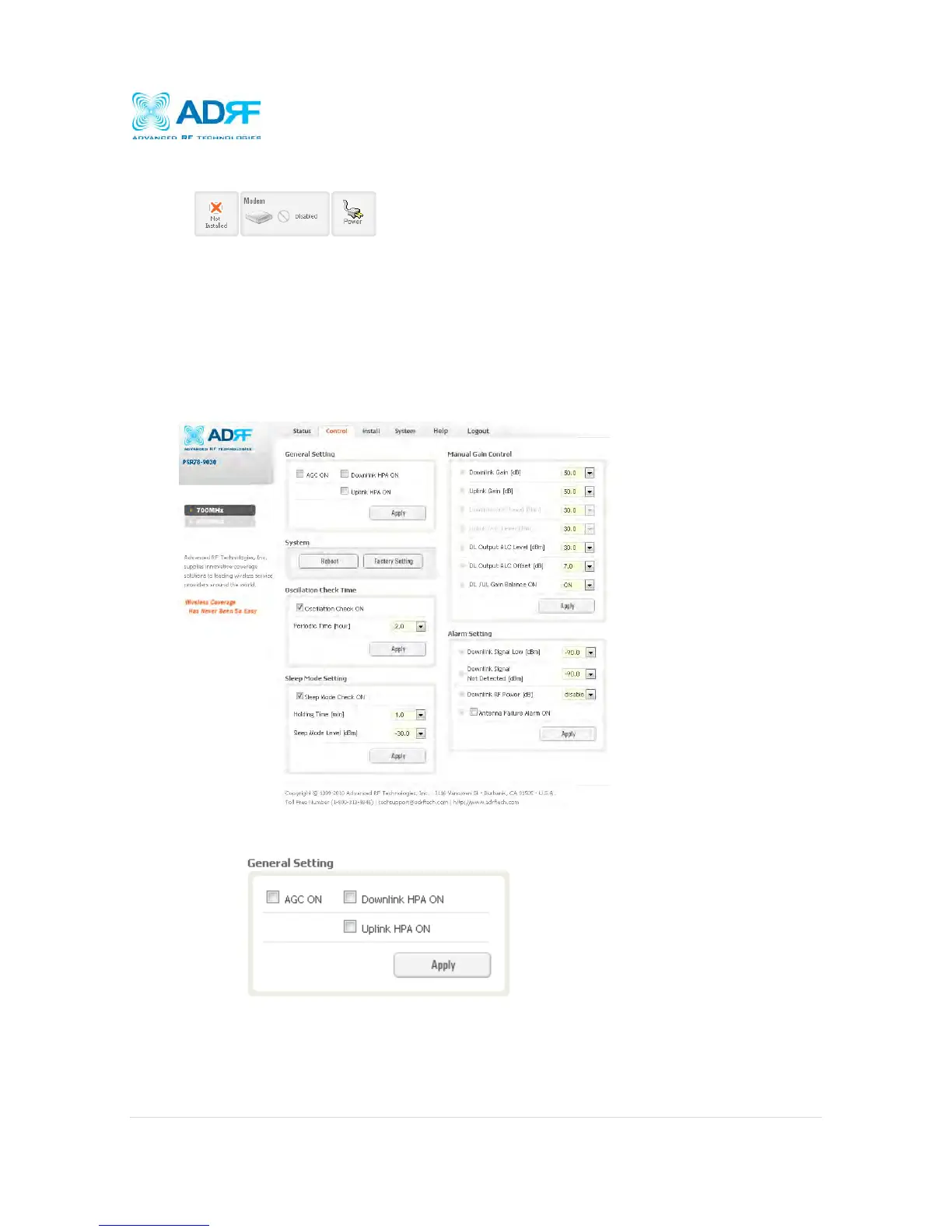

4.3 Control Tab
4.3.1 Control
Control- 700 MHz / 800 MHz
4.3.2 General Setting
o AGC ON: Enables or disables AGC (Automatic Gain Control)
o Downlink HPA ON: Enables or disables the DL HPA
o Uplink HPA ON: Enables or disabled the UL HPA
To enable any of the settings, click on the checkbox and click the Apply button.
